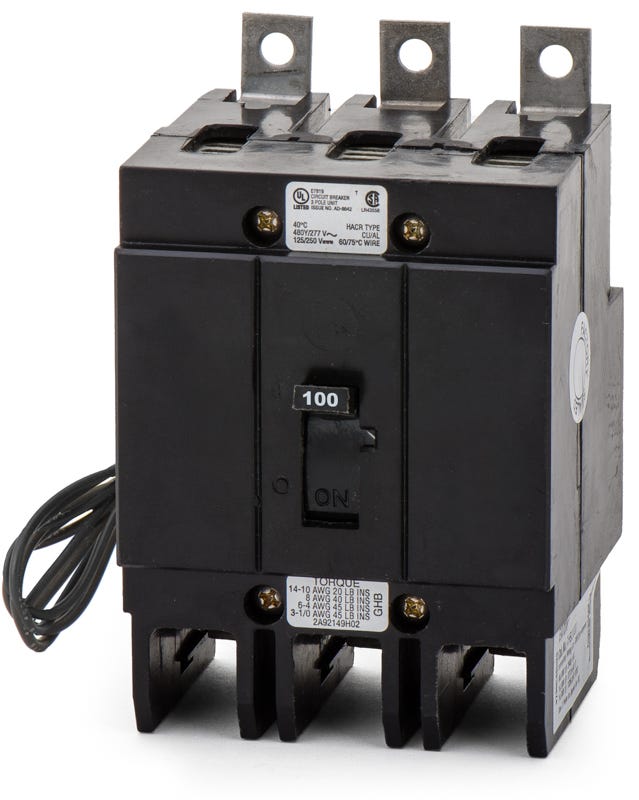

Eaton / Cutler-Hammer GHB3100S1 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3100S1
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3100S1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3100S1 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerGHB3080S1
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3070S1
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3060S1
60A 3 Pole Molded Case Circuit Breaker
Description
Featuring a built-in 120VAC shunt trip, the Eaton GHB3100S1 enables remote tripping for enhanced control. This 100A, 3-pole MCCB is part of the reliable Series C G-Frame family. The bolt-on configuration ensures a secure connection within Eaton Pow-R-Line panelboards and motor control centers. It includes load side lugs accepting 10-1/0 AWG conductors. Capable of interrupting 14 kAIC at 480Y/277VAC, the device is HACR rated, supports reverse feed, and complies with UL 489 standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3100S1 |
| Series | GHB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the S1 suffix indicate on the GHB3100S1 circuit breaker?
The S1 suffix means this breaker comes with a factory-installed 120VAC shunt trip, which allows for remote tripping of the breaker. It features a rear connection with a left pigtail.
Can the Eaton GHB3100S1 replace older Cutler-Hammer or Westinghouse breakers?
Yes, Eaton Series C GHB circuit breakers are direct replacements for legacy Cutler-Hammer and Westinghouse GHB breakers of the same rating.
Which panelboards are compatible with the GHB3100S1?
This G-frame bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards, Series C panelboards, switchboards, and motor control centers.
What wire sizes are accepted by the lugs on the GHB3100S1?
The load side lugs accept 10 AWG to 1/0 AWG copper or aluminum (Cu/Al) conductors.
Can the GHB3100S1 be reverse fed?
Yes, this thermal-magnetic circuit breaker is suitable for reverse feed applications.
Are the trip settings adjustable on the GHB3100S1?
No, this breaker features a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous trip settings cannot be adjusted in the field.
