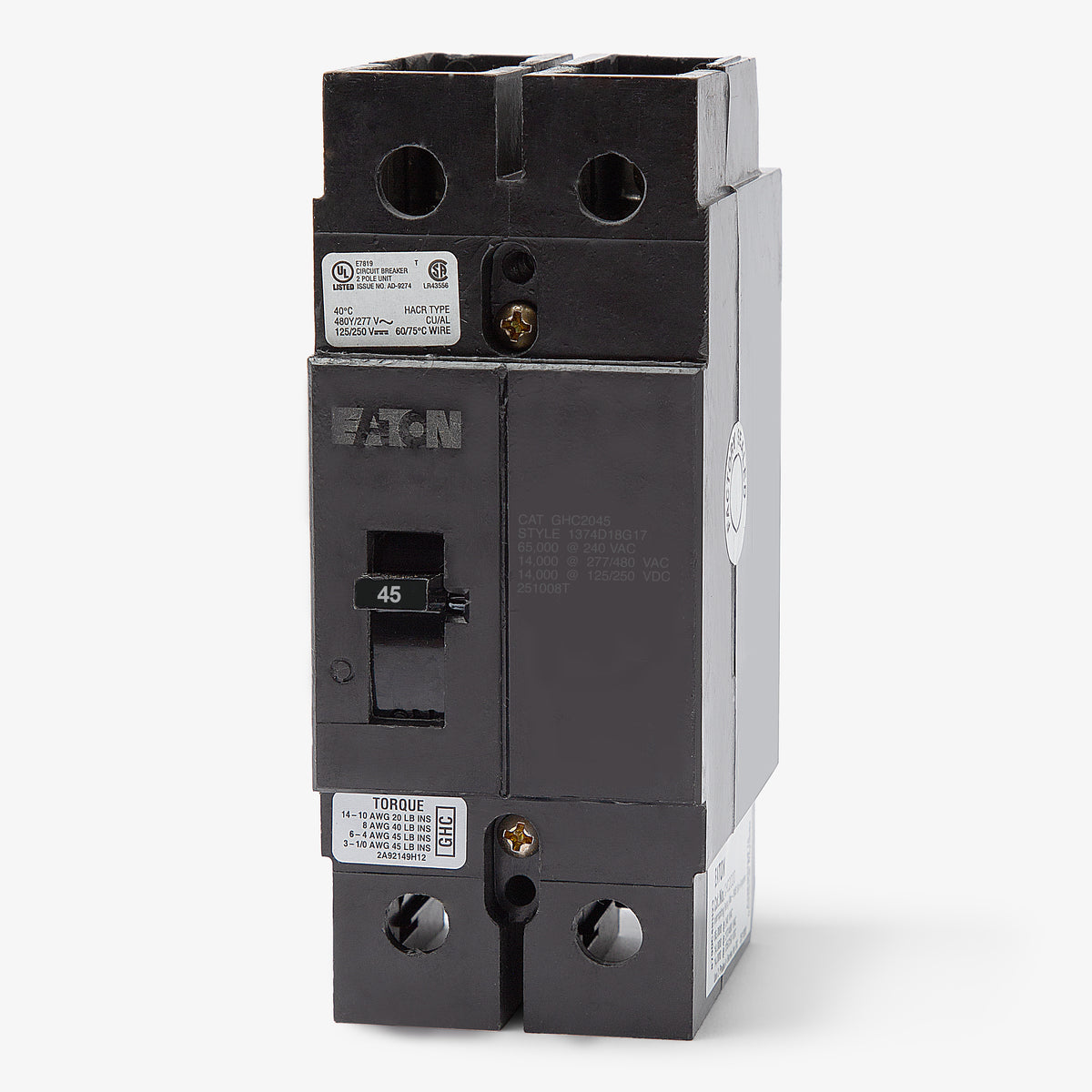

Eaton / Cutler-Hammer GHC2045 Molded Case Circuit Breaker
- 45A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC2045
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC2045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC2045 - 45A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
The GHC2045 is a 2-pole, 45A molded case circuit breaker from Eaton's Series C family. Built for commercial distribution systems, this G-frame device provides dependable thermal-magnetic protection for branch circuits. Designed for flexible installation, it mounts into Series C enclosures and OEM panels. It utilizes a standard unit-mount configuration and can be adapted for DIN rail applications. This breaker delivers a 65kAIC rating at 240V and is HACR rated for HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC2045 |
| Series | GHC |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Enclosures, OEM Panels, DIN Rail (with adapter) |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersCan the Eaton GHC2045 be mounted on a standard 35mm DIN rail?
Yes, this breaker can be mounted to a standard 35mm DIN rail, but it requires a separate adapter. For two-pole G-frame breakers like the GHC2045, use Eaton DIN rail adapter part number 1225C79G01.
Is the GHC2045 rated for use in direct current (DC) circuits?
Yes, in addition to its AC ratings, this breaker is rated for 125/250VDC applications with an interrupting capacity of 14kAIC.
What type of enclosures or panels are compatible with the GHC2045?
This unit-mount, bolt-on breaker is designed for use in Eaton Series C enclosures, OEM control panels, and switchgear that accept G-frame molded case circuit breakers.
Can the trip settings on the GHC2045 be adjusted in the field?
No, this breaker features a fixed thermal and fixed magnetic trip unit providing long-time and instantaneous (LI) protection. The trip settings are factory set and cannot be adjusted.
What wire sizes are accepted by the terminals on the GHC2045?
The factory-installed lugs on this breaker accept wire gauges ranging from 14 AWG up to 1/0 AWG.
What frame size is the Cutler-Hammer GHC2045?
It belongs to the Eaton Series C family and uses a standard G-frame footprint, making it a direct replacement for older Cutler-Hammer G-frame breakers with the same specifications.
Are Eaton and Cutler-Hammer GHC2045 breakers the same?
Yes, Eaton acquired Cutler-Hammer and continues to manufacture the Series C G-frame breakers under the Eaton brand. A GHC2045 labeled as Cutler-Hammer is functionally identical to one labeled as Eaton.
