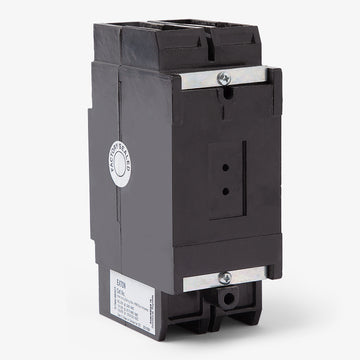

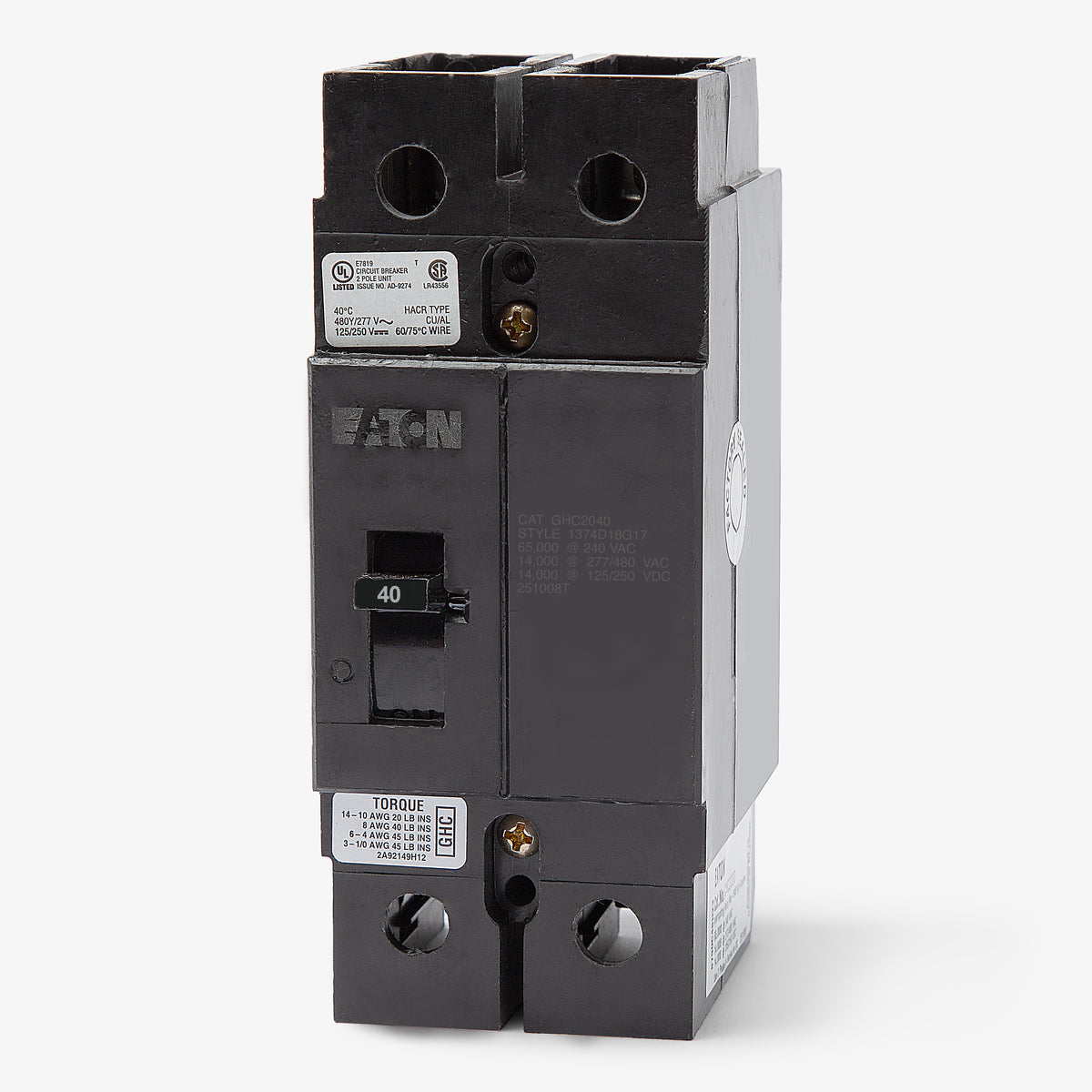

Eaton / Cutler-Hammer GHC2040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC2040
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC2040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC2040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Delivering reliable long-time and instantaneous (LI) protection, the Eaton GHC2040 operates as a 40A, 2-pole molded case circuit breaker from the Series C G-Frame lineup. It provides robust fault clearing with a 65kAIC rating at 240VAC and 14kAIC at 480Y/277VAC. The unit-mount configuration utilizes included line and load lugs for straightforward installation in commercial panelboards and industrial switchgear. This HACR-rated breaker also features reverse feed capability for specialized setups.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC2040 |
| Series | GHC |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Enclosures, OEM Panels, DIN Rail (with adapter) |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersCan the Eaton GHC2040 be mounted on a DIN rail?
Yes, the GHC2040 can be mounted on a standard 35mm DIN rail, but it requires a separate adapter. For 1-pole and 2-pole G-Frame breakers, use Eaton DIN rail adapter kit part number 1225C79G01.
Is the GHC2040 suitable for direct current (DC) applications?
Yes, this thermal-magnetic breaker is rated for use in DC systems up to 125/250VDC, providing an interrupting capacity of 14kAIC.
Is the Cutler-Hammer GHC2040 HACR rated and suitable for reverse feeding?
Yes, the GHC2040 is HACR rated for use with heating, air conditioning, and refrigeration equipment. It also supports reverse feed configurations for specialized panelboard setups.

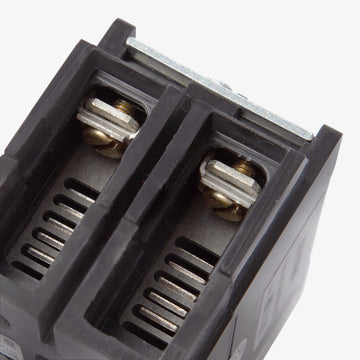

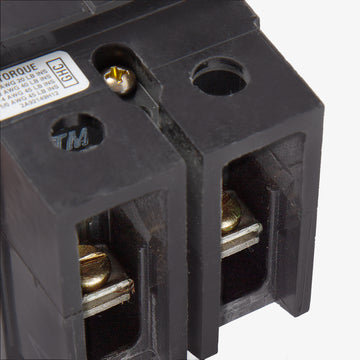

What wire size range do the terminals on the GHC2040 accept?
The GHC2040 comes standard with line and load lugs that accommodate wire gauges from 14 AWG up to 1/0 AWG.
What types of panels or enclosures are compatible with the GHC2040?
This unit-mount G-Frame breaker is designed for use in Eaton Series C enclosures, motor control centers, and OEM panels that accept feed-thru molded case circuit breakers.
Is an Eaton GHC2040 the exact same breaker as an older Cutler-Hammer GHC2040?
Yes. Eaton acquired Cutler-Hammer, and they continue to manufacture the Series C G-Frame breakers under the Eaton name. An Eaton GHC2040 is a direct, drop-in replacement for a legacy Cutler-Hammer GHC2040.
