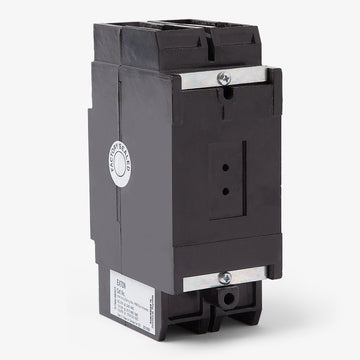

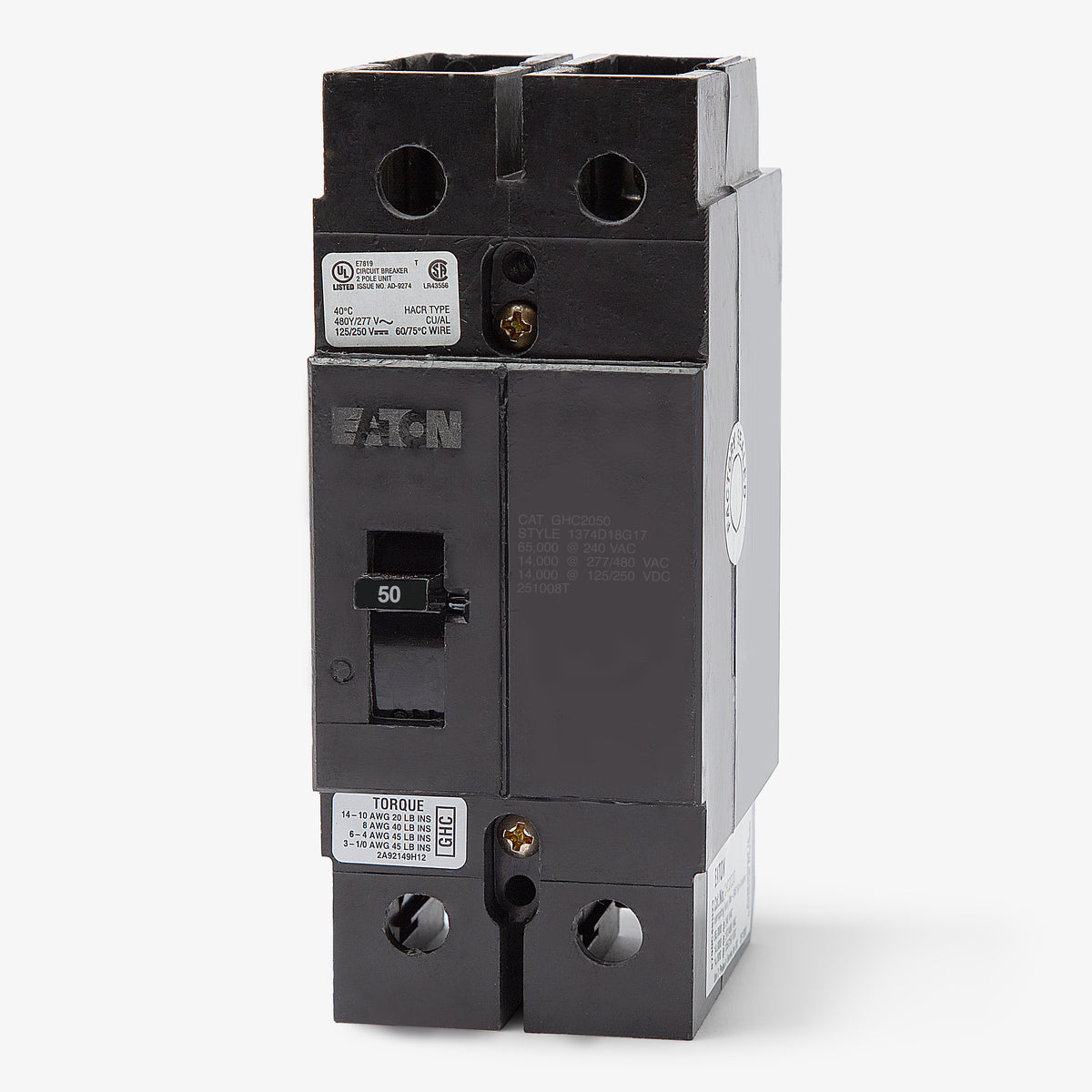

Eaton / Cutler-Hammer GHC2050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC2050
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC2050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC2050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial environments, the Eaton GHC2050 is a 2-pole, 50A molded case circuit breaker from the Series C G-frame line. It delivers reliable thermal-magnetic protection for demanding commercial and industrial distribution networks. This unit-mount breaker installs easily into Eaton panelboards, motor control centers, and custom OEM enclosures. It includes line and load lugs for standard cable connections. Rated at 65kAIC at 240V, it is HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC2050 |
| Series | GHC |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | G-Frame |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, OEM Panels, Enclosures, Motor Control Centers, DIN Rail (with adapter) |
| Wire Gauge | 10-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersCan the Eaton GHC2050 be mounted on a standard DIN rail?
Yes, the GHC2050 can be mounted on a standard 35mm DIN rail, but it requires a separate DIN rail adapter kit. For 1-pole and 2-pole G-frame breakers, use Eaton adapter part number 1225C79G01.
Is the GHC2050 circuit breaker suitable for direct current (DC) applications?
Yes, this breaker is rated for DC applications. It provides an interrupting capacity of 14kAIC at 125/250VDC, making it suitable for various industrial DC control and distribution circuits.
What wire sizes and types are compatible with the standard lugs on the GHC2050?

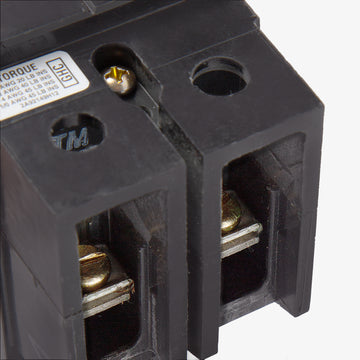

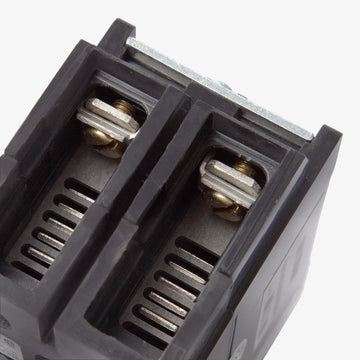

The factory-installed line and load lugs accept wire sizes ranging from 10 AWG to 1/0 AWG. Ensure you use properly rated copper or aluminum conductors as required by your panelboard and local electrical codes.
Is the Eaton GHC2050 a direct replacement for older Cutler-Hammer GHC breakers?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the Series C G-frame line. An Eaton GHC2050 provides the exact same form, fit, and function as a legacy Cutler-Hammer GHC2050.
What type of trip unit is installed in the GHC2050?
The breaker features a fixed thermal-magnetic trip unit. This provides both long-time response for overload protection and instantaneous response for short-circuit protection. The trip settings are factory calibrated and non-adjustable.
What types of enclosures and panels accept the GHC2050 breaker?
This breaker is designed for use in Eaton Series C panelboards, motor control centers, and custom OEM enclosures. It features a bolt-on connection for panel bus mounting and includes lugs for feed-thru cable connections.
Can the GHC2050 be reverse fed?
Yes, this Series C G-frame breaker is reverse feed capable. This allows line power to be connected to either the top or bottom terminals without compromising the protective functions of the trip unit.
Is the GHC2050 rated for heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated. It is tested and approved to handle the specific inrush currents and operational demands of heating, air conditioning, and refrigeration motor loads.
