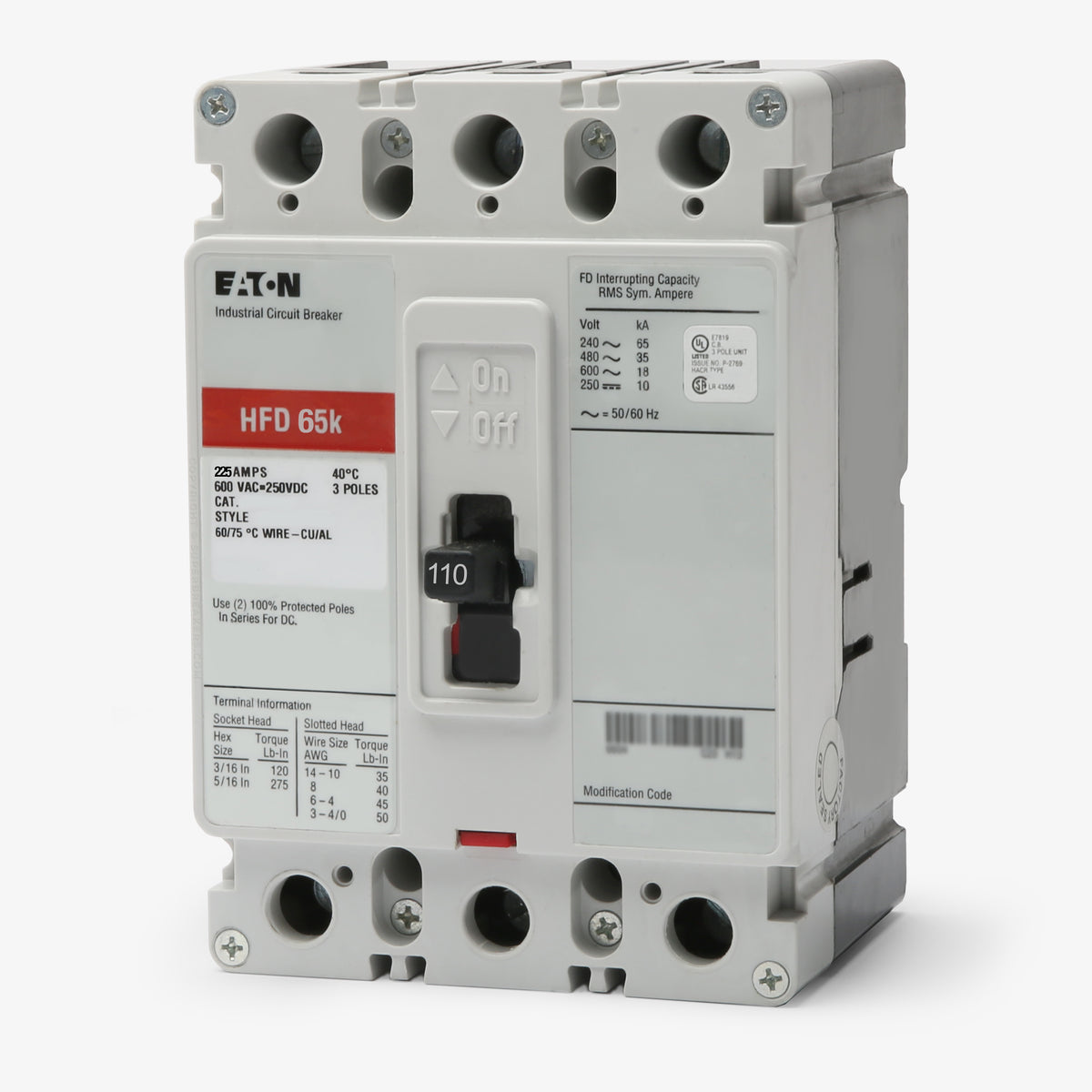

Eaton / Cutler-Hammer HFD3110L Molded Case Circuit Breaker
- 110A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HFD3110L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3110L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3110L - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Featuring line and load terminals, the Eaton HFD3110L is a 3-pole, 110A feed-thru molded case circuit breaker. It delivers dependable long-time and instantaneous (LI) protection for demanding commercial and industrial environments. Designed for the Series C F-Frame footprint, this breaker mounts into compatible Eaton panelboards and switchboards. It replaces legacy models and is succeeded by the PDG23M0110TFFJ. With a 65kAIC rating at 480VAC, this HACR-rated MCCB is reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3110L |
| Series | HFD |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs
6 answersWhich Eaton panelboards are compatible with the HFD3110L?
This F-Frame breaker mounts into standard Eaton and Cutler-Hammer Series C panelboards, switchboards, and motor control centers.
What does the L suffix in the HFD3110L part number indicate?
The L suffix designates that the breaker is supplied with factory-installed line and load lugs.
Which replacement lug kit fits the HFD3110L?
The standard replacement lug kit is catalog number 3TA225FD, which accommodates 4 AWG to 4/0 AWG aluminum or copper wire.
Is the HFD3110L suitable for reverse feed applications?
Yes, Eaton Series C F-Frame thermal magnetic circuit breakers are designed to be reverse feed capable.
How does the HFD3110L differ from FD3110 and FDC3110 breakers?
The difference lies in the short circuit interrupting rating. At 480VAC, the standard FD frame is rated at 35kAIC, the high-interrupting HFD frame is rated at 65kAIC, and the extra-high FDC frame is rated at 100kAIC.
What is the direct Power Defense replacement for the HFD3110L?
The legacy Series C HFD3110L has been succeeded by the Eaton Power Defense series under catalog number PDG23M0110TFFJ.
