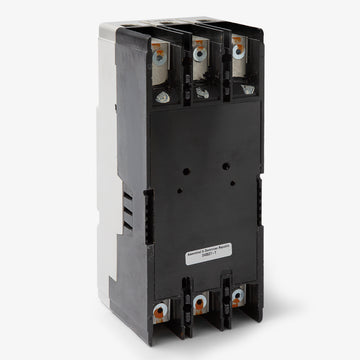

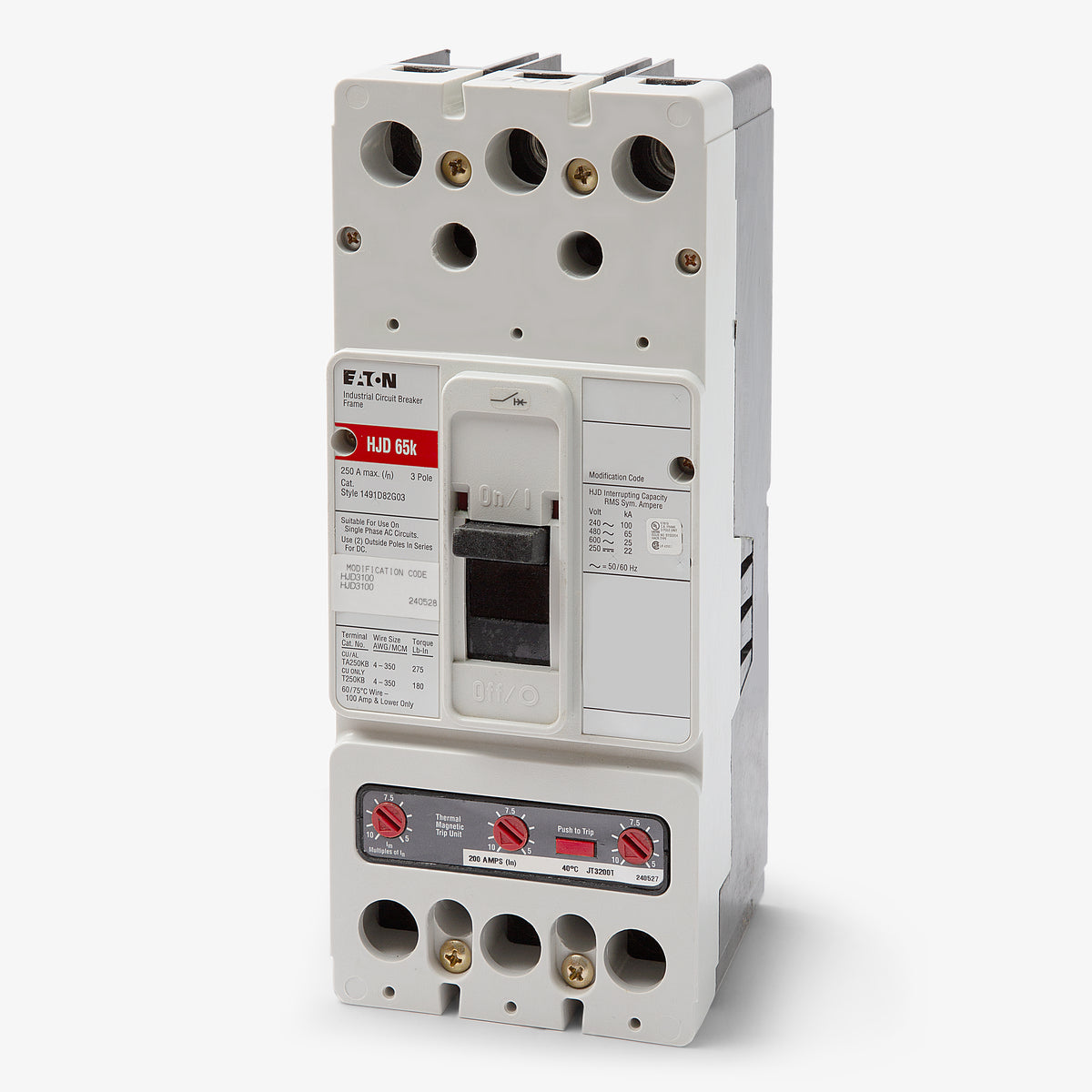

Eaton / Cutler-Hammer HJD3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HJD3100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HJD3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HJD3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HJD3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3100 |
| Series | HJD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Quantity
Eaton / Cutler-Hammer HJD3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3100-R |
| Series | HJD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Part of the Series C family, the HJD3100 is a 3-pole molded case circuit breaker built for industrial power distribution. It ensures consistent overcurrent protection. This 100A unit-mount breaker fits Eaton Series C panelboards, switchboards, and motor control centers. It easily replaces older Cutler-Hammer J-frame installations. Equipped with a fixed thermal-magnetic trip unit, it boasts a 65 kAIC capacity at 480VAC. TA250KB line and load lugs are included to simplify wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3100 |
| Series | HJD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs
6 answersWhat equipment is compatible with the HJD3100 circuit breaker?
This J-frame breaker is designed for installation in Eaton Series C panelboards, switchboards, and motor control centers.
What is the difference between the Eaton JD3100 and HJD3100?
The HJD3100 features a higher interrupting capacity. The standard JD3100 is rated for 35kA at 480VAC, whereas the high-interrupting HJD3100 is rated for 65kA at 480VAC.

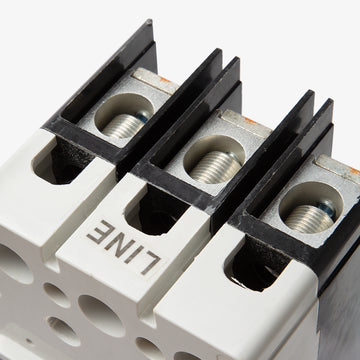

What lugs are included with the HJD3100?
This breaker comes standard with TA250KB line and load lugs. These terminals accept 4 AWG to 350 kcmil aluminum or copper conductors.

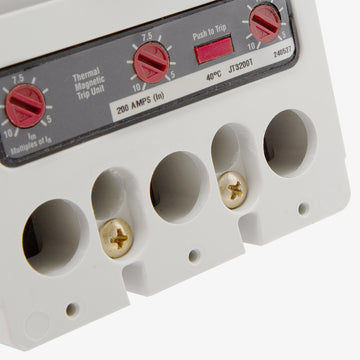

Is the trip unit on the HJD3100 adjustable?
Yes, it features a thermal-magnetic trip unit with fixed thermal protection and an adjustable magnetic short-circuit pickup. For this 100A model, the magnetic trip can be adjusted from 500A to 1000A (5 to 10 times the continuous rating).
Can the HJD3100 be reverse fed?
Yes, this Series C breaker is rated for reverse feed applications, allowing flexibility in wiring the line and load connections.
Can the HJD3100 replace older Westinghouse J-frame breakers?
Yes, it is a direct replacement for legacy Westinghouse and Cutler-Hammer Series C J-frame breakers that require a 100A, 3-pole configuration with high interrupting capacity.
