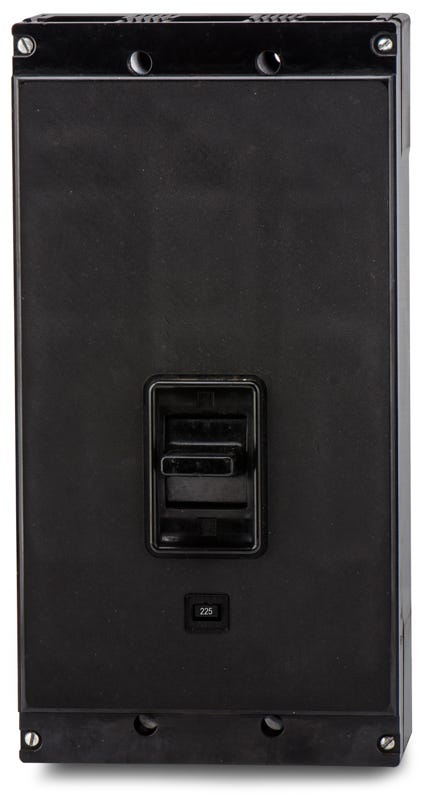

Eaton / Cutler-Hammer K3225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
K3225
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
K3225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer K3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer K3225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3225 |
| Series | K |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Quantity
Eaton / Cutler-Hammer K3225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3225-R |
| Series | K |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the K3225 is a 3-pole, 225A MCCB from Eaton Cutler-Hammer. It provides robust short-circuit protection in commercial switchboards. Mounting via bolt-on connections, this breaker integrates into Eaton Series C and legacy Westinghouse panelboards. It replaces older K-Frame units and upgrades to the KD3225. Operating at 600VAC, it delivers a 22 kAIC interrupt rating at 480V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3225-R |
| Series | K |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Product FAQs
6 answersCan the K3225 circuit breaker be reverse fed?
Yes, this thermal-magnetic Series C breaker is suitable for reverse feed applications. It does not have line and load markings, allowing power to be supplied from either direction.
What is the recommended wire torque for the standard lugs on the K3225?
For the standard 3 AWG to 350 kcmil aluminum or copper lugs, the recommended wire binding screw torque is 375 in-lbs. Always verify the exact torque value printed on the installed lug or breaker label before terminating.
Will the Eaton K3225 replace an older Westinghouse K3225 breaker?
Yes, Eaton acquired the Westinghouse distribution equipment line. The current Series C K3225 is a direct physical and electrical replacement for legacy Westinghouse K3225 breakers.
Can I install the K3225 in a panelboard that originally used JA, KA, or LB breakers?
Yes, the K3225 shares the same physical dimensions as legacy JA, KA, and LB frames. However, because the top terminal tangs are at a different height, you will need a TAD3 adapter spacer on the line side for a proper bus connection.
How does the adjustable magnetic trip function on the K3225 work?
The breaker features a fixed thermal element for overload protection and an adjustable magnetic element for short-circuit protection. The magnetic trip dial allows you to coordinate the instantaneous trip threshold with downstream devices and motor inrush currents.
Is the K3225 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires group motor protection.
