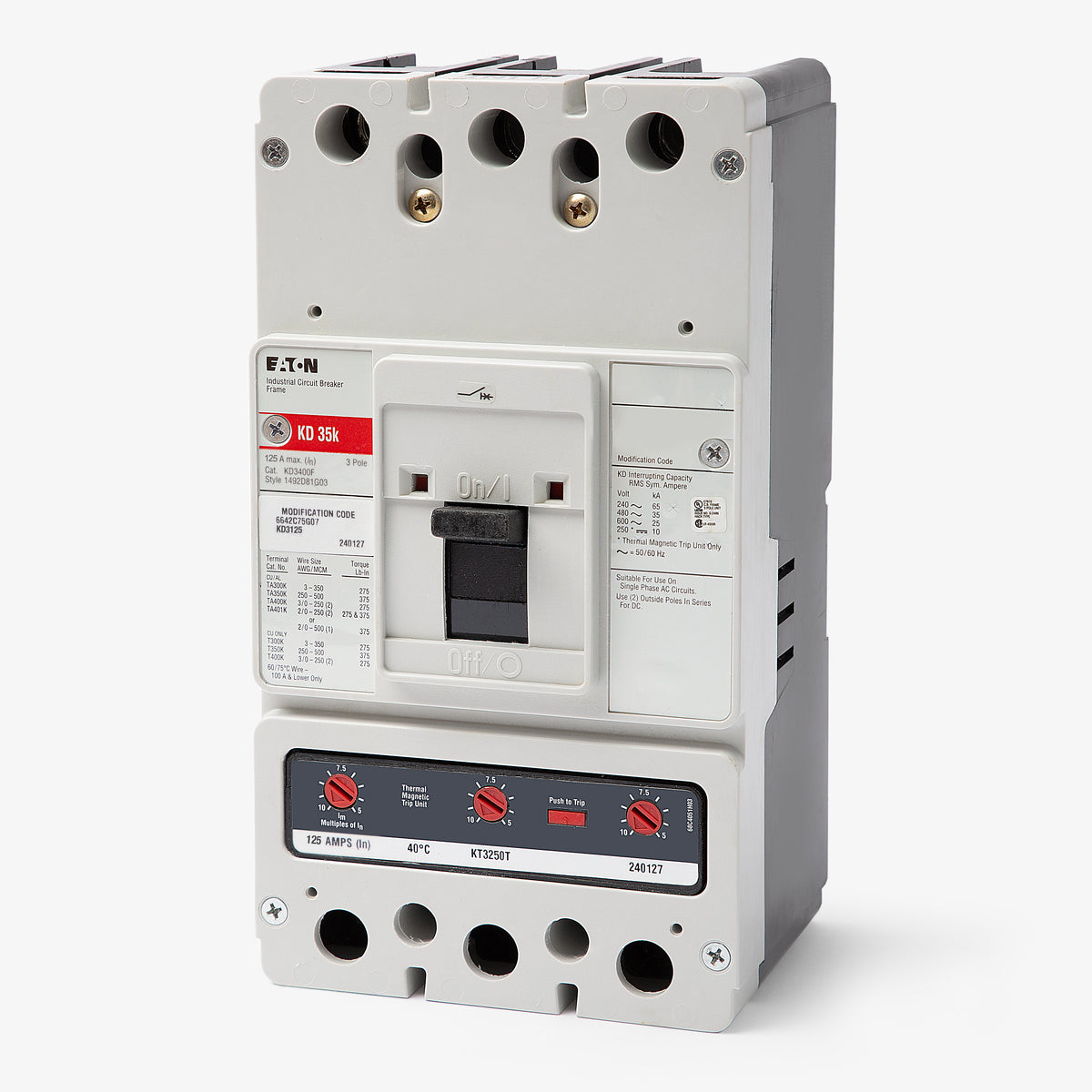

Eaton / Cutler-Hammer KD3125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
KD3125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
KD3125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer KD3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer KD3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3125 |
| Series | KD |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs (TA300K) |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Quantity
Eaton / Cutler-Hammer KD3125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3125-R |
| Series | KD |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs (TA300K) |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty use, the Eaton KD3125 provides 125A of continuous current handling within the Series C K-Frame lineup. It safeguards commercial and industrial electrical systems. This unit mount breaker installs into Eaton Series C panelboards, motor control centers, and switchboards. Featuring a 35 kAIC rating at 480VAC, it is equipped with an interchangeable trip unit offering adjustable magnetic (LI) functions. It is fully HACR rated and supports reverse feed configurations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3125 |
| Series | KD |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs (TA300K) |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Product FAQs
5 answersWhat enclosures and panelboards are compatible with the KD3125?
The KD3125 is designed for seamless integration into Eaton Series C panelboards, switchboards, and motor control centers. It also mounts into legacy Westinghouse CDP panelboards.
Can the Eaton KD3125 replace older Westinghouse KD breakers?
Yes, the Eaton KD3125 is a direct replacement for legacy Westinghouse and Cutler-Hammer KD3125 breakers. They share the exact same K-frame footprint, dimensions, and thermal-magnetic trip characteristics.

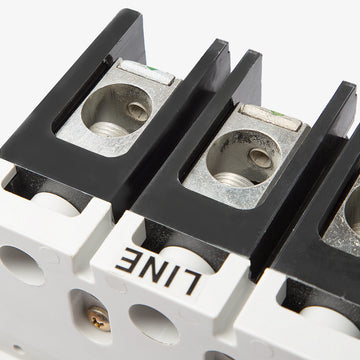

Which lug kit is required for the KD3125 to accept 350 kcmil wire?
The TA300K is the standard aluminum lug kit for this breaker. It accepts one 3 AWG to 350 kcmil copper or aluminum conductor per pole.
Is the KD3125 suitable for reverse feed applications?
Yes, Eaton Series C K-frame circuit breakers with fixed thermal-magnetic trip units, such as the KD3125, are suitable for reverse feed installations.

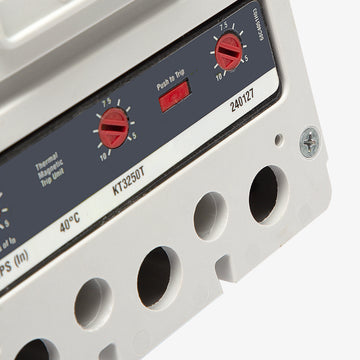

How does the adjustable magnetic trip function on the KD3125?
While the thermal overload protection is fixed at 125A, the magnetic instantaneous trip is adjustable from 5 to 10 times the continuous current rating. This allows you to set the short-circuit response between 625A and 1250A to prevent nuisance tripping from motor inrush currents.
