Eaton / Cutler-Hammer KD3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
KD3175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
KD3175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer KD3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer KD3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3175 |
| Series | KD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line 3a Panelboards, Pow-R-Line 4 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Quantity
Eaton / Cutler-Hammer KD3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3175-R |
| Series | KD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line 3a Panelboards, Pow-R-Line 4 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description

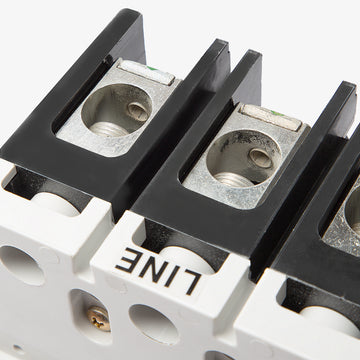

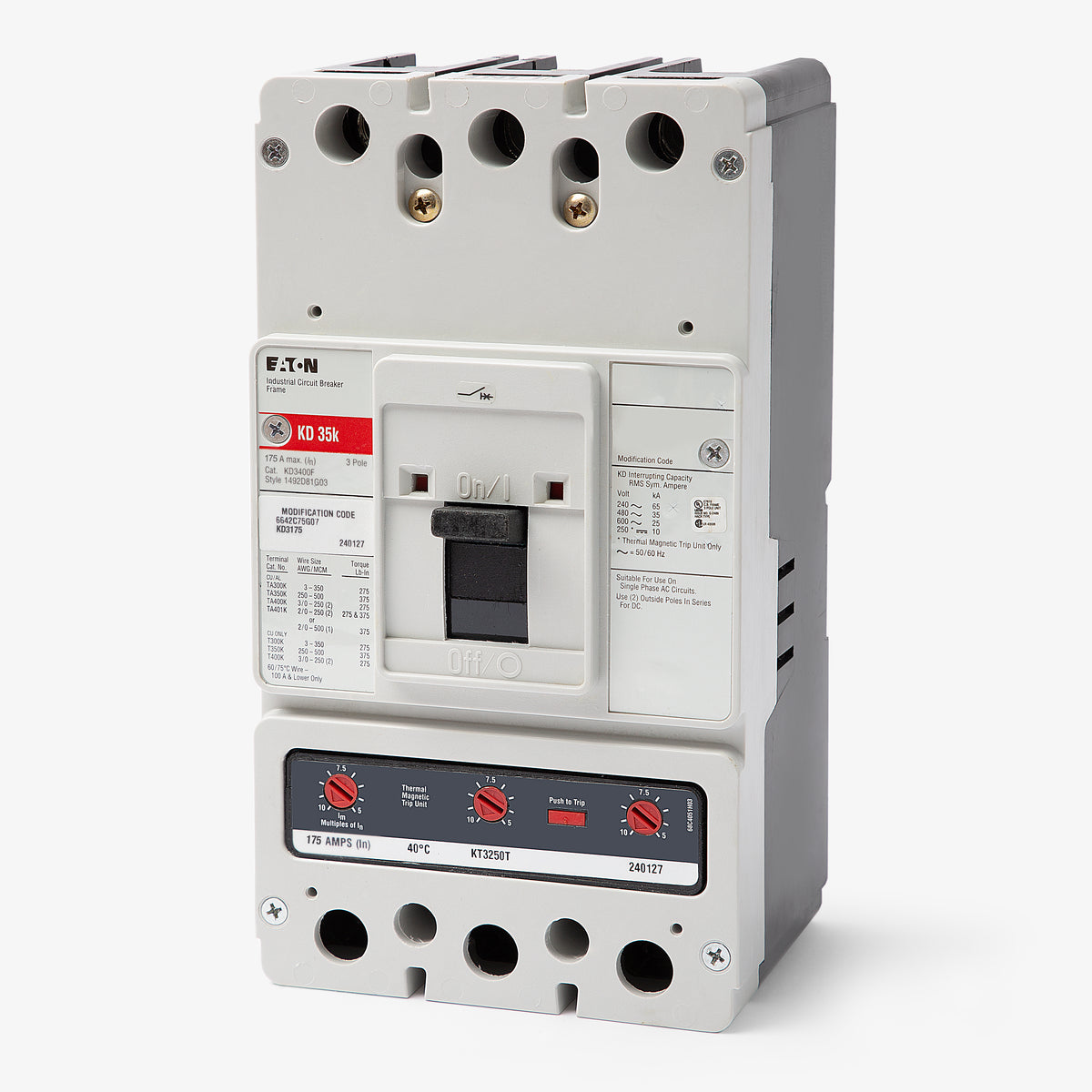

Part of Eaton's Series C family, the KD3175 delivers 175A of power distribution for commercial facilities. This K-Frame molded case circuit breaker features an interchangeable thermal-magnetic trip unit, providing long-time and instantaneous (LI) protection. It mounts into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. The unit accepts 3 AWG to 350 kcmil wire. Rated 65kAIC at 240V, this breaker is HACR rated, reverse feed capable, and supports field accessories.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3175 |
| Series | KD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line 3a Panelboards, Pow-R-Line 4 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Product FAQs
5 answersWhat enclosures and panelboards are compatible with the KD3175 breaker?
This K-frame breaker is designed to mount in Eaton Series C panelboards, Pow-R-Line 3a and 4 panelboards, as well as compatible switchboards and motor control centers.

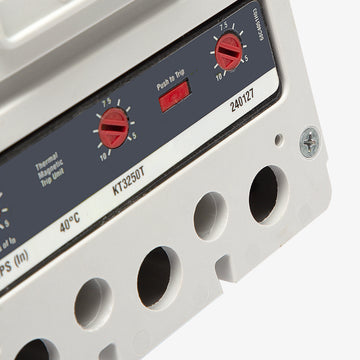

What is the adjustment range for the magnetic trip on the KD3175?
The KD3175 features an adjustable magnetic trip unit that can be set between 5 and 10 times the continuous ampere rating. For this 175A breaker, the instantaneous short-circuit pickup range is 875A to 1750A.
Can the Eaton KD3175 replace older Westinghouse KD breakers?
Yes, Eaton Series C K-frame breakers are backward compatible. The KD3175 can directly replace legacy Cutler-Hammer and Westinghouse KD3175 breakers with the same 175A rating and 3-pole configuration.
Can the trip unit on the KD3175 be swapped or upgraded in the field?
Yes, the KD3175 features an interchangeable thermal-magnetic trip unit. This allows panel builders to change the continuous ampere rating or trip characteristics without replacing the entire K-frame breaker.
Is the KD3175 circuit breaker suitable for reverse feed applications?
Yes, standard thermal-magnetic Eaton Series C K-frame breakers like the KD3175 are reverse feed capable. Always verify that no voltage is present on either the line or load side before performing maintenance in reverse feed setups.
