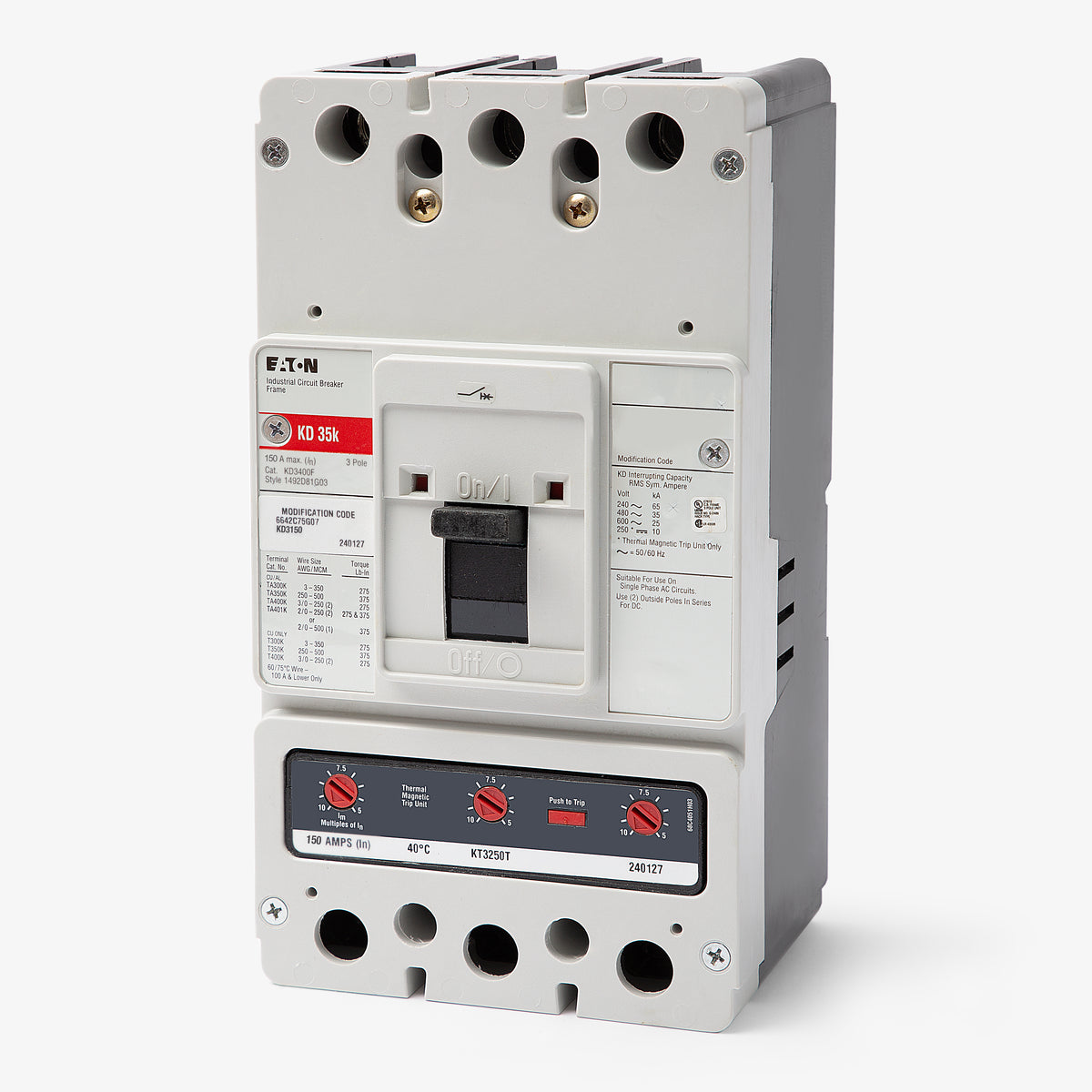

Eaton / Cutler-Hammer KD3150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
KD3150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
KD3150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer KD3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer KD3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3150 |
| Series | KD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|

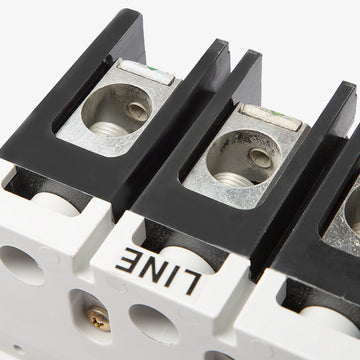

| Accessories | Line and Load Lugs (TA300K) |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Quantity
Eaton / Cutler-Hammer KD3150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3150-R |
| Series | KD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA300K) |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Eaton KD3150 is a 150A, 3-pole molded case circuit breaker from the Series C family. It provides dependable long-time and instantaneous (LI) protection for demanding electrical systems. This K-frame breaker installs into Eaton Series C panelboards, switchboards, and motor control centers. It utilizes a standard unit mount configuration and accepts TA300K line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | KD3150 |
| Series | KD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA300K) |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Product FAQs
5 answersIs there a difference between the Eaton KD3150 and the Cutler-Hammer KD3150?
No. Eaton acquired Cutler-Hammer and continues to manufacture the Series C product line. A KD3150 breaker with a modern Eaton label is functionally identical and fully interchangeable with an older Cutler-Hammer branded unit.
What is the difference between the KD3150, HKD3150, and KDC3150 catalog numbers?
These Series C K-frame breakers share the exact same physical dimensions and mounting footprint but feature different short-circuit interrupting capacities. The KD3150 is the standard-interrupting version, while the HKD3150 and KDC3150 provide high and extra-high interrupting ratings for systems with elevated fault current levels.

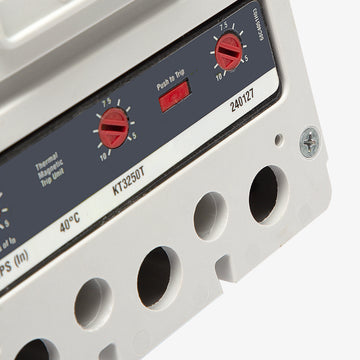

Are the trip units on this K-frame breaker field-interchangeable?
Yes. The KD3150 comes equipped with an interchangeable thermal-magnetic trip unit. This design allows qualified electricians to easily swap or upgrade the trip components in the field without needing to replace the entire molded case frame.
Can I install internal accessories like a shunt trip into this breaker?
Yes. The Series C K-frame platform includes dedicated accessory pockets. This allows you to field-install standard internal electrical accessories such as shunt trips, auxiliary switches, and bell alarms.
What type of distribution equipment is this breaker designed for?
This unit-mount circuit breaker is engineered for direct installation into compatible Eaton Series C panelboards, switchboards, and motor control centers.
