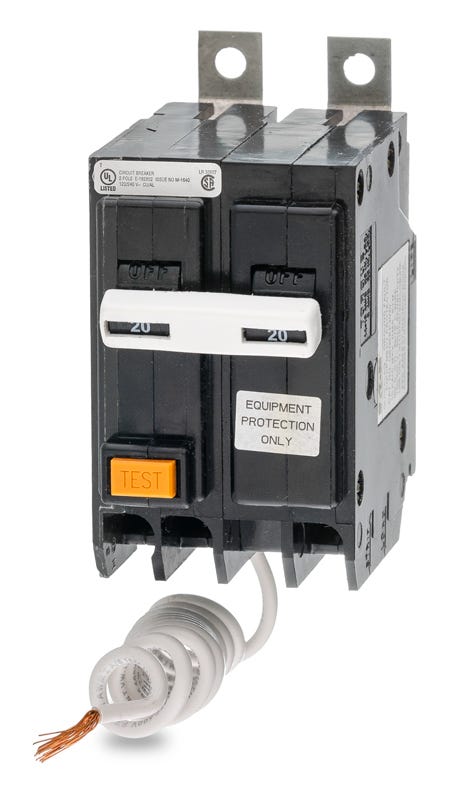

Eaton / Cutler-Hammer QBGFEP2020 GFEP Miniature Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGFEP2020
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFEP2020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGFEP2020 - 20A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFEP2015
15A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP2030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP2040
40A GFEP Miniature Circuit Breaker
Description
The QBGFEP2020 is a 2-pole, 20A miniature circuit breaker engineered for Eaton Pow-R-Line panelboards. Featuring a secure bolt-on mounting style, it provides reliable power distribution for commercial and industrial applications. Unlike standard personnel safety devices, this GFEP breaker features a 30mA trip sensitivity specifically calibrated to protect heat trace cables and sensitive equipment. It delivers a 10kAIC interrupt rating at 120/240VAC and is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGFEP2020 |
| Series | QBGFEP |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch, Bell Alarm |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat is the ground fault trip sensitivity of the QBGFEP2020?
This Ground Fault Equipment Protector (GFEP) features a 30mA trip threshold. It is designed to protect equipment like heat tracing systems and does not meet the 5mA threshold required for personnel protection.
Which panelboards are compatible with the QBGFEP2020?
This breaker is designed for use in Eaton Pow-R-Line commercial panelboards that accept BAB-frame bolt-on circuit breakers. It is not compatible with standard residential plug-on load centers.
Does the pigtail neutral need to be connected if the load does not require a neutral?
Yes. The white pigtail wire must be connected directly to the panel neutral bar in all installations. This connection powers the internal ground fault circuitry, even if the connected 240V load does not utilize a neutral wire.
How do I wire the load neutral on this breaker?
If your circuit includes a load neutral, such as a 120/240V multi-wire branch circuit, the load neutral wire must connect directly to the neutral lug on the breaker, not the panel neutral bar. If you are wiring a straight 240V load with no neutral, simply leave the breaker's load neutral lug empty.
Is the QBGFEP2020 a direct replacement for Cutler-Hammer breakers?
Yes, Eaton acquired Cutler-Hammer, and this breaker serves as an exact replacement for legacy Cutler-Hammer QBGFEP2020 models.
