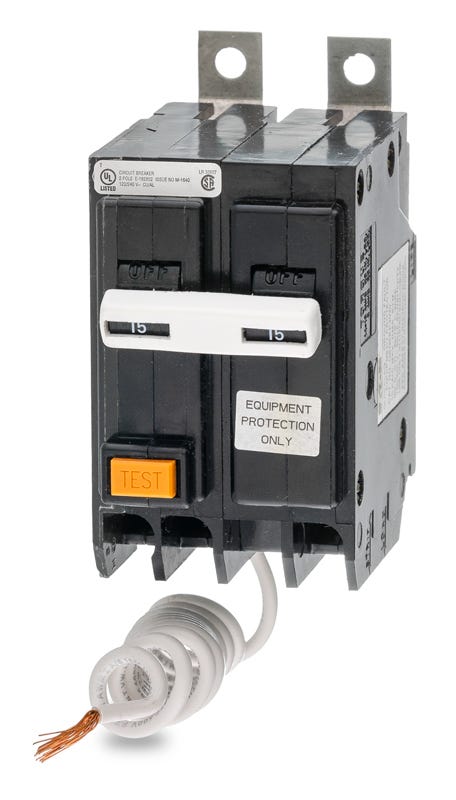

Eaton / Cutler-Hammer QBGFEP2015 GFEP Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGFEP2015
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFEP2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGFEP2015 - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items

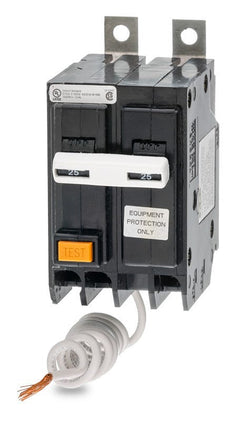

Eaton / Cutler-HammerQBGFEP2025
25A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP2030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP2040
40A GFEP Miniature Circuit Breaker
Description
Part of the Quicklag series, the Eaton QBGFEP2015 is a 2-pole, 15A miniature circuit breaker. It delivers 30mA ground fault equipment protection for 120/240VAC systems, safeguarding industrial loads from damaging faults. Designed for commercial infrastructure, this bolt-on breaker fits Eaton Pow-R-Line panelboards. It includes load side box lugs that accept 14-4 AWG wiring. The breaker features a 10kAIC interrupt rating, common trip functionality, and an HACR rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QBGFEP |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QBGFEP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Auxiliary Switch, Bell Alarm |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
4 answersWhich panelboards are compatible with the Eaton QBGFEP2015 circuit breaker?
This bolt-on breaker is designed for use in Eaton Pow-R-Line panelboards that accept Quicklag QB frame breakers.
What is the ground fault trip sensitivity for the QBGFEP2015?
The QBGFEP2015 features a 30mA trip sensitivity. It provides Ground Fault Equipment Protection (GFEP) to safeguard equipment such as heat trace cables, unlike Class A GFCI breakers which trip at 5mA for personnel protection.
How is the neutral connection wired on the QBGFEP2015?
This breaker includes a pigtail neutral wire that must be connected directly to the neutral bar in the panelboard to ensure proper ground fault detection.
Can I substitute a standard Quicklag QB breaker for the QBGFEP2015?
No. While they share the same physical footprint and bolt-on mounting, the QBGFEP2015 includes 30mA ground fault equipment protection. A standard QB breaker only provides thermal magnetic overload and short-circuit protection.
