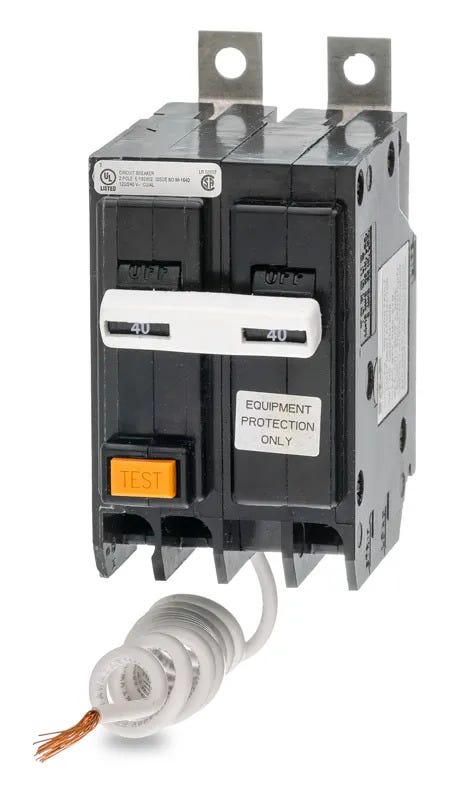

Eaton / Cutler-Hammer QBGFEP2040 GFEP Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGFEP2040
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFEP2040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGFEP2040 - 40A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFEP2030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP2025
25A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP2020
20A GFEP Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton QBGFEP2040 is a 40A equipment protection breaker that combines standard thermal-magnetic functions with a 30mA ground fault trip threshold. It is engineered to safeguard commercial machinery and heat trace systems from damaging line-to-ground faults. This 2-pole device features a bolt-on mounting style for secure installation into Eaton Pow-R-Line panelboards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGFEP2040 |
| Series | QBGFEP |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch, Bell Alarm |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the ground fault trip threshold for the QBGFEP2040?
This breaker features a 30 mA ground fault trip sensitivity. It is classified as Ground Fault Equipment Protection (GFEP) to safeguard machinery and heat trace systems, rather than a 5 mA Class A GFCI meant for personnel protection.
Which panelboards accept the QBGFEP2040 breaker?
It is designed for Eaton Pow-R-Line panelboards that accommodate BAB frame bolt-on breakers, including the Pow-R-Line 1a, 2, and 3 series distribution panels.
How is the neutral connection handled on this GFEP breaker?
The QBGFEP2040 includes a pigtail neutral wire. This pigtail must be securely terminated at the panelboard neutral bus to power the internal ground fault detection circuitry.
Is the QBGFEP2040 suitable for heat trace applications?
Yes, the 30 mA equipment protection threshold makes this breaker ideal for heat trace cables and commercial equipment where a standard 5 mA GFCI might experience nuisance tripping.
Are Eaton and Cutler-Hammer QBGFEP2040 breakers interchangeable?
Yes. Eaton acquired Cutler-Hammer, and the QBGFEP2040 catalog number is identical across both brands. They are the exact same breaker and can be used interchangeably in listed panels.
Can I install the QBGFEP2040 in a standard residential load center?
No, this is a bolt-on breaker designed specifically for commercial and industrial Eaton Pow-R-Line panelboards. It will not fit in standard plug-on residential load centers like the BR or CH series.
