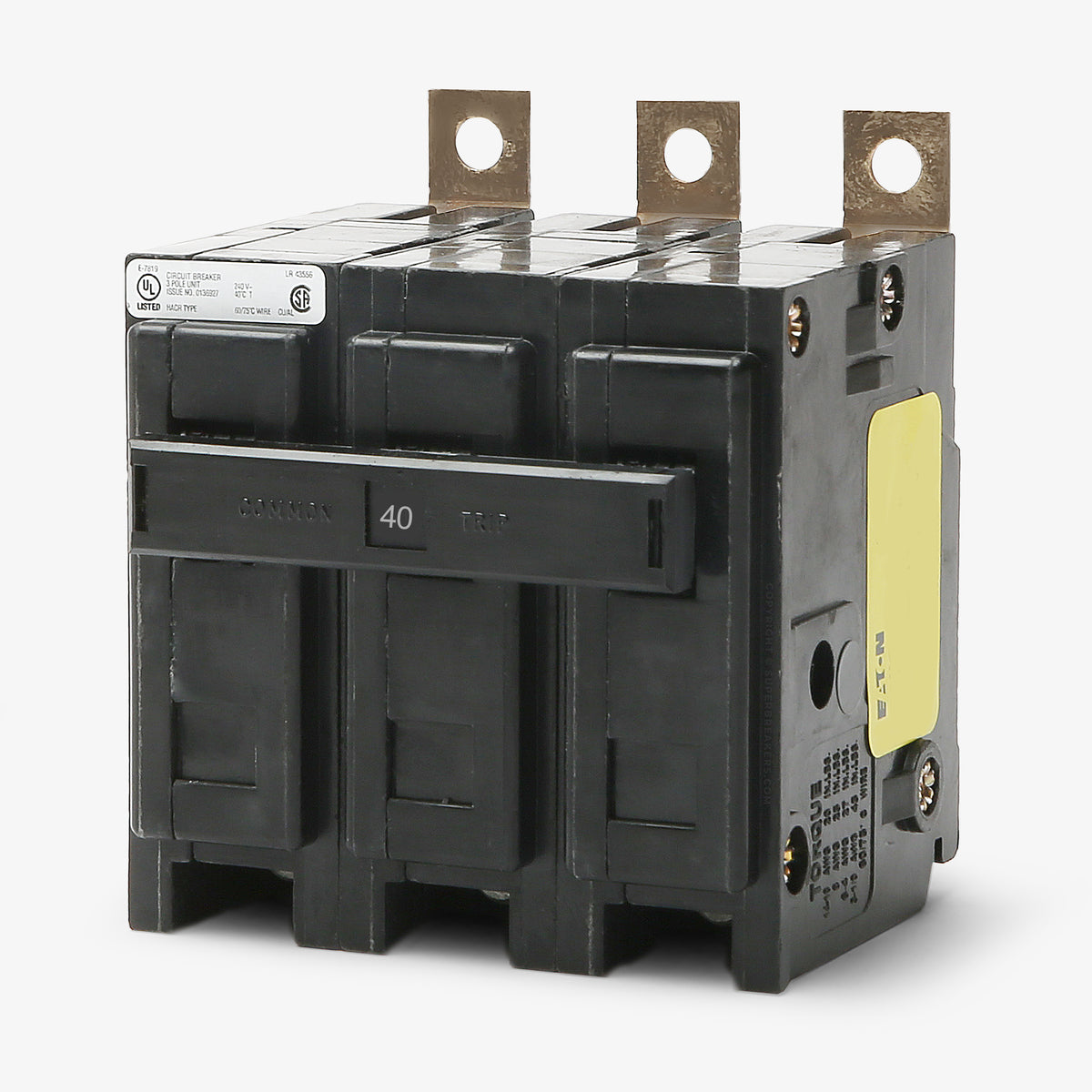

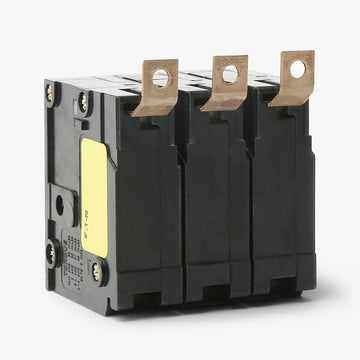

Eaton / Cutler-Hammer QBHW3040H Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW3040H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW3040H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW3040H - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBHW3040H - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3040H |
| Series | QBHW |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW3040H - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3040H-R |
| Series | QBHW |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
Eaton / Cutler-HammerQBHW3050H
50A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3030H
30A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3025H
25A 3 Pole Miniature Circuit Breaker
Description
Engineered for robust power distribution, the Eaton QBHW3040H is a 3-pole, 40A bolt-on circuit breaker from the Quicklag family. It provides reliable thermal-magnetic protection with a 22kAIC rating at 240VAC. Designed to fit Eaton Pow-R-Line panelboards, this breaker utilizes a secure bolt-on mounting style to maintain strong electrical connections. It features a non-interchangeable trip unit and is HACR rated, making it suitable for a wide range of commercial and industrial HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3040H |
| Series | QBHW |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the QBHW3040H circuit breaker?
This bolt-on breaker is designed for use in Eaton and Cutler-Hammer Pow-R-Line panelboards, such as the PRL1a and PRL2a series, that accept Quicklag type QBHW breakers.
Can I install the QBHW3040H in a standard residential plug-on load center?
No. The QBHW3040H is a bolt-on breaker designed for commercial and industrial Pow-R-Line panelboards. It will not fit in residential plug-on load centers that require BR or CH series breakers.
Can I use a BAB series breaker instead of the QBHW3040H?
Both series share the same physical bolt-on footprint, but the QBHW3040H has a higher interrupting rating of 22kAIC. A BAB series breaker is rated at 10kAIC and cannot be used if your system requires the higher 22kA fault current rating. Always verify the required rating for your panel.

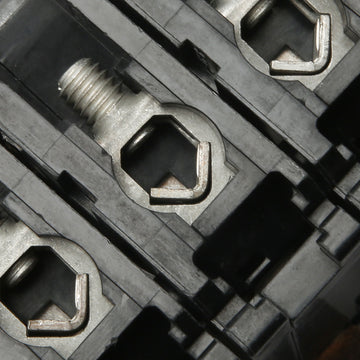

What wire gauge is accepted by the terminals on the QBHW3040H?
The box lugs on this 40-amp breaker accept 14 AWG to 4 AWG copper or aluminum wire.

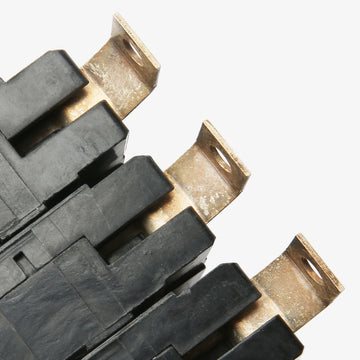

How does the QBHW3040H connect to the panel busbar?
It utilizes a bolt-on mounting mechanism. This provides a secure, high-torque connection to the busbar, which is ideal for industrial and commercial environments subject to vibration.
What type of trip mechanism does the QBHW3040H use?
It features a fixed thermal-magnetic trip unit. The thermal bimetal element provides long-time protection against persistent overloads, while the magnetic solenoid offers instantaneous protection against short circuits.
Is the QBHW3040H suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications that require a 40-amp, 3-pole breaker.
