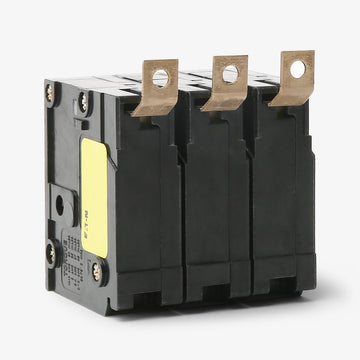

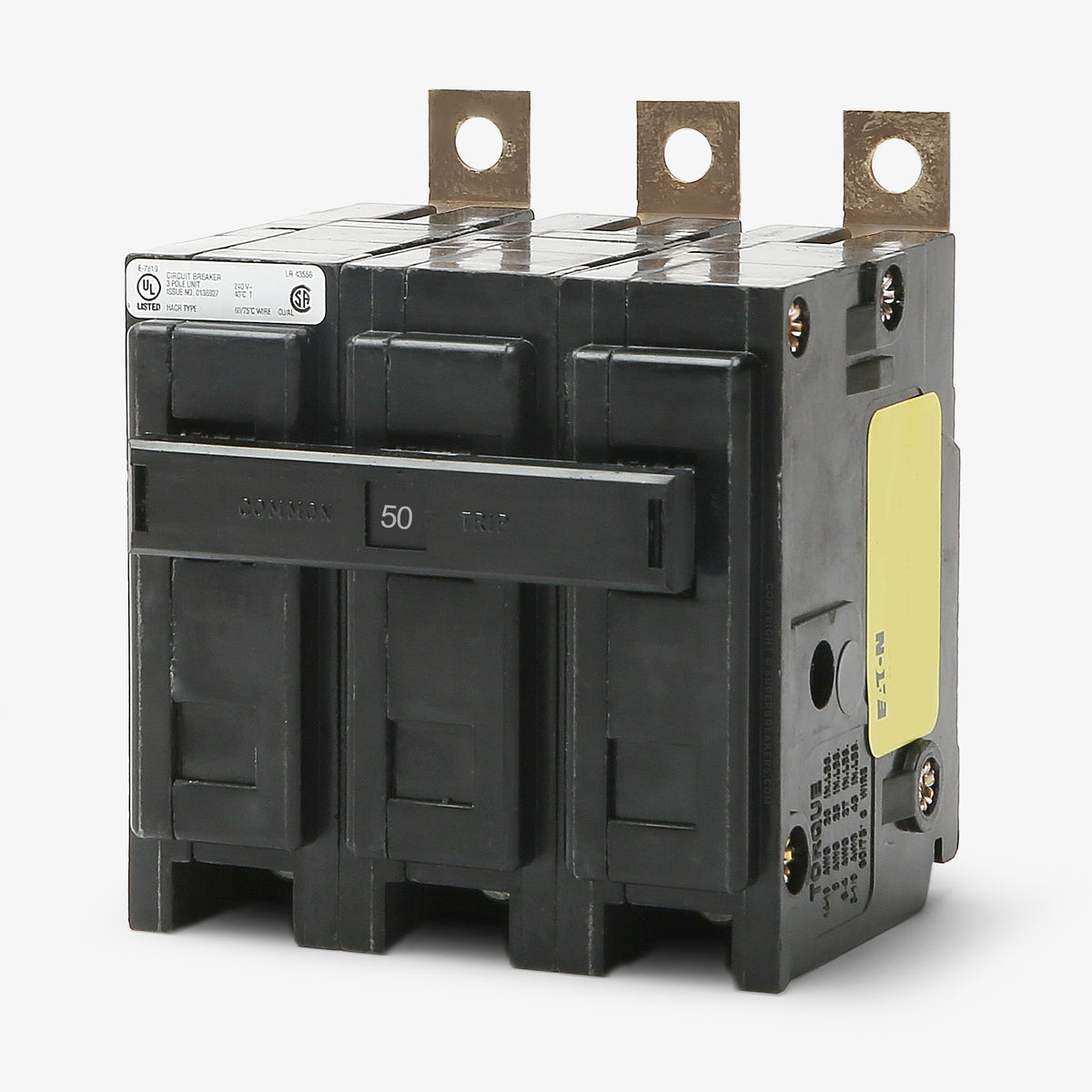

Eaton / Cutler-Hammer QBHW3050H Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW3050H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW3050H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW3050H - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBHW3050H - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3050H |
| Series | QBHW |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW3050H - 50A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3050H-R |
| Series | QBHW |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
Eaton / Cutler-HammerQBHW3040H
40A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3035H
35A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3070H
70A 3 Pole Miniature Circuit Breaker
Description
Part of the Quicklag family, this 50A miniature circuit breaker provides robust thermal-magnetic protection for commercial and industrial systems. It is designed to handle demanding loads while maintaining consistent performance across 3-phase applications. The bolt-on design installs into Eaton Pow-R-Line panelboards, ensuring a secure connection. It accepts 14-4 AWG wire via standard box lugs. Rated for 22kAIC at 240VAC, this HACR-rated breaker offers dependable branch circuit protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3050H |
| Series | QBHW |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat panelboards are compatible with the QBHW3050H?
This breaker is designed for use in Eaton and Cutler-Hammer Pow-R-Line panelboards, specifically the PRL1a, PRL2a, and PRL3a series.
What is the difference between the BAB3050 and the QBHW3050H?
Both are 50A, 3-pole, bolt-on breakers with identical physical dimensions. The difference is their interrupting capacity. The BAB3050 is rated at 10 kAIC, while the QBHW3050H is rated at 22 kAIC for systems with higher available fault current.
Can I use a QBH3050 instead of a QBHW3050H?
No. While both are Eaton bolt-on breakers, they have different form factors. The QBH series has a 3/4-inch per pole width and fits older Sylvania or Command panels. The QBHW series has a standard 1-inch per pole width designed for Pow-R-Line panels.
Is the QBHW3050H HACR rated?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Do I need special lugs to use aluminum wire with this breaker?

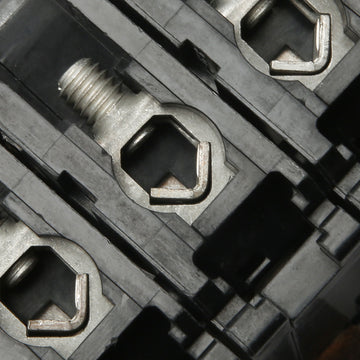

No, the factory-installed box lugs on the QBHW3050H are AL/CU rated. They safely accept both aluminum and copper conductors ranging from 14 AWG to 4 AWG.
Does the QBHW3050H require a separate mounting kit?

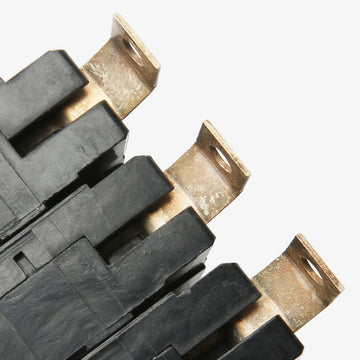

No, it is a standard bolt-on breaker. It mounts directly to the busbar of compatible Pow-R-Line panelboards using its integrated bolt-on tabs, providing a secure and vibration-resistant connection.
