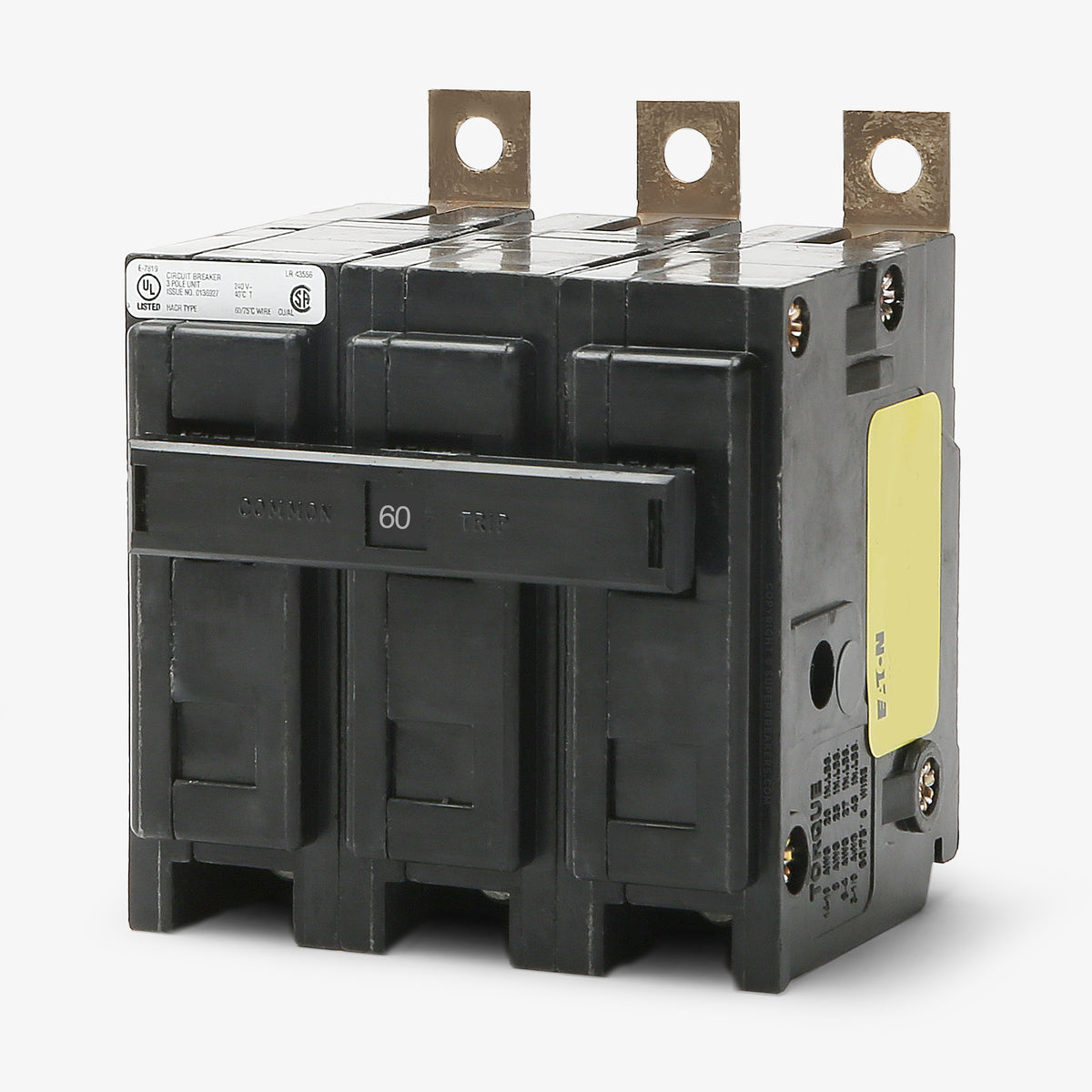

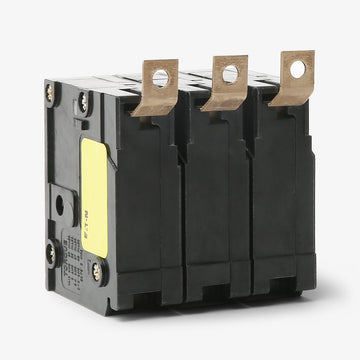

Eaton / Cutler-Hammer QBHW3060H Miniature Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW3060H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW3060H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW3060H - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBHW3060H - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3060H |
| Series | QBHW |
| Amperage | 60A |
| Poles | 3 |

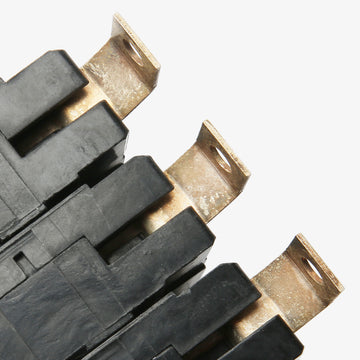

| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |

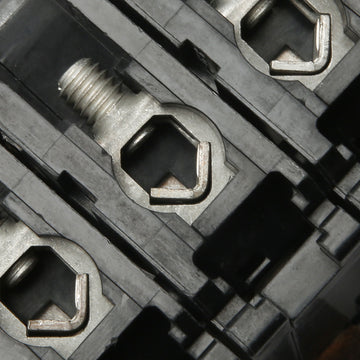

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW3060H - 60A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3060H-R |
| Series | QBHW |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
Eaton / Cutler-HammerQBHW3050H
50A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3040H
40A 3 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW3035H
35A 3 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the Eaton QBHW3060H is a 60A miniature circuit breaker from the Quicklag family. It features thermal-magnetic trip technology for reliable protection. This bolt-on breaker is designed to mount into Eaton Pow-R-Line panelboards. It utilizes standard box lug terminals and accepts 8-1/0 AWG wire. Rated for 240VAC, the unit delivers a high interrupting capacity of 22kAIC. It is HACR rated and features a non-interchangeable trip.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW3060H |
| Series | QBHW |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards are compatible with the QBHW3060H breaker?
This Quicklag breaker mounts in Eaton Cutler-Hammer Pow-R-Line distribution panelboards, specifically the PRL1a, PRL2a, and PRL3a series that accept bolt-on branch breakers.
What is the difference between the BAB3060H and the QBHW3060H?
Both are 60-amp, 3-pole Quicklag bolt-on breakers with identical physical dimensions. The difference is the short-circuit interrupting rating. The BAB3060H is rated at 10 kAIC, while the QBHW3060H provides a higher 22 kAIC rating.
What does the H suffix mean in the QBHW3060H catalog number?
In Eaton Quicklag nomenclature, the H suffix denotes a straight 240 VAC construction. This rating is required when installing the breaker on 3-phase, 3-wire 240V delta systems or on the high leg of a midpoint delta grounded system.
Is the QBHW3060H rated for HVAC equipment?
Yes, Eaton Quicklag breakers in this amperage range carry an HACR rating. This makes the unit fully approved to protect heating, air conditioning, and refrigeration motor circuits.
Can I install this breaker in a standard residential load center?
No. The QBHW3060H is a commercial bolt-on breaker. It is not interchangeable with plug-on residential breakers like the Eaton BR or CH series, and must be installed in a commercial panelboard equipped with a bolt-on bus.
