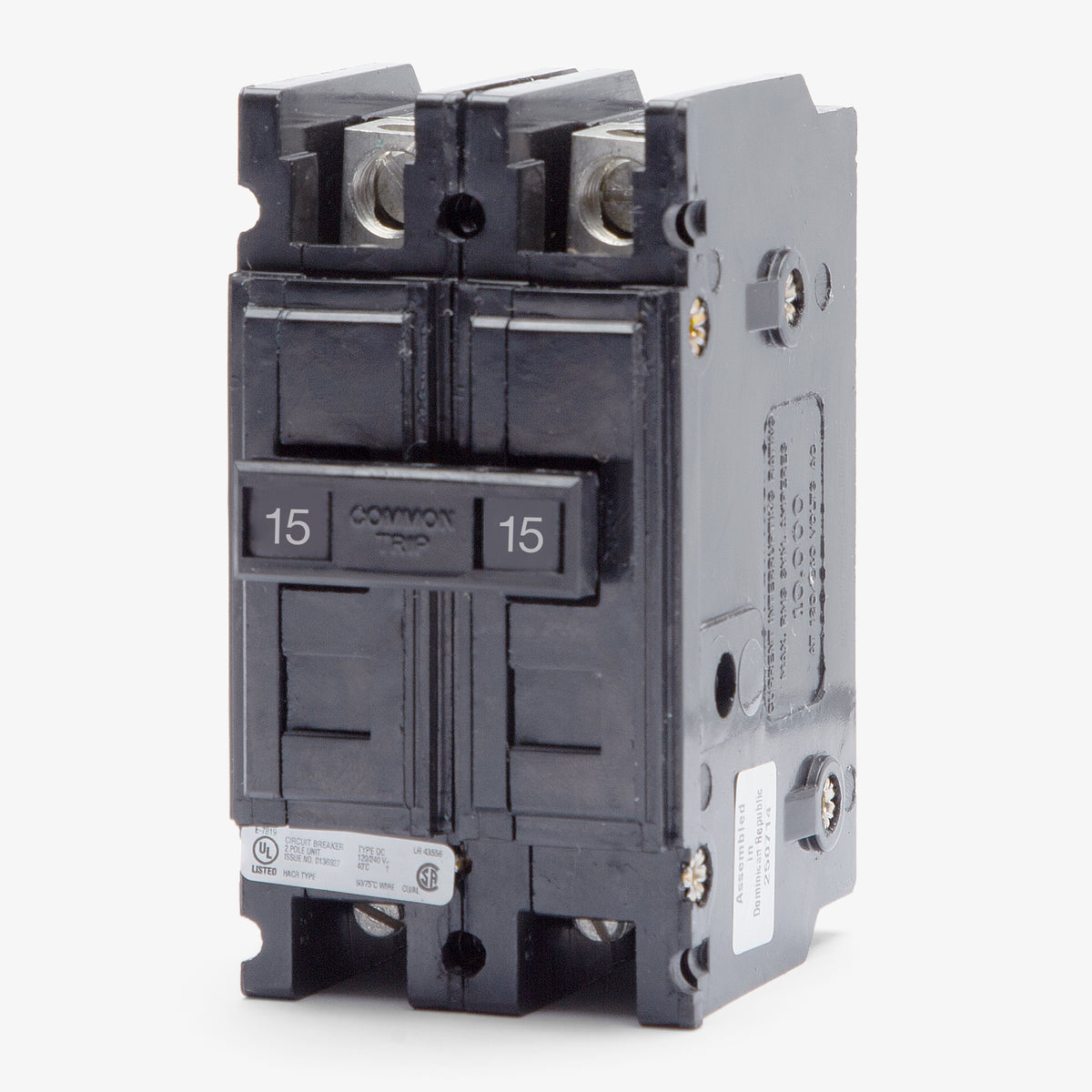

Eaton / Cutler-Hammer QC2015 Miniature Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC2015
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC2015 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QC2015 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2015 |
| Series | QC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QC2015 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2015-R |
| Series | QC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
10A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Built for residential and commercial applications, the Eaton QC2015 is a 15-amp miniature circuit breaker from the Quicklag family. It provides reliable thermal-magnetic protection for electrical systems. This two-pole breaker features a cable-in/cable-out design for panel mount installations. It is compatible with Eaton Quicklag panelboards and control enclosures. Rated for 10 kAIC at 120/240VAC, the unit is HACR rated and includes box lug terminals that accept 14-10 AWG wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2015 |
| Series | QC |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat is the difference between Eaton QC, QCR, and QCF circuit breakers?
Type QC breakers are designed for standard cable-in/cable-out panel mounting. Type QCR breakers are built for DIN rail mounting, and Type QCF breakers are designed for front-mount, through-the-door applications.
Can the QC2015 be mounted on a DIN rail?
Yes, this breaker can be mounted on a standard 35mm DIN rail by using the Eaton QCDINADAPT adapter bracket.
What is the recommended terminal torque for the QC2015 breaker?
For 14 to 10 AWG copper or aluminum wire, the recommended terminal torque is 20 in-lbs.
Is the Eaton QC2015 rated for use in DC circuits?
Yes, this breaker is rated for DC applications. It provides a 5kAIC interrupting rating at 48VDC and a 3.8kAIC rating at 62.5VDC.
What type of panels accept the QC2015 breaker?
This breaker is compatible with Eaton Quicklag panelboards, as well as custom control panels and enclosures that support cable-in/cable-out feed-thru mounting.
