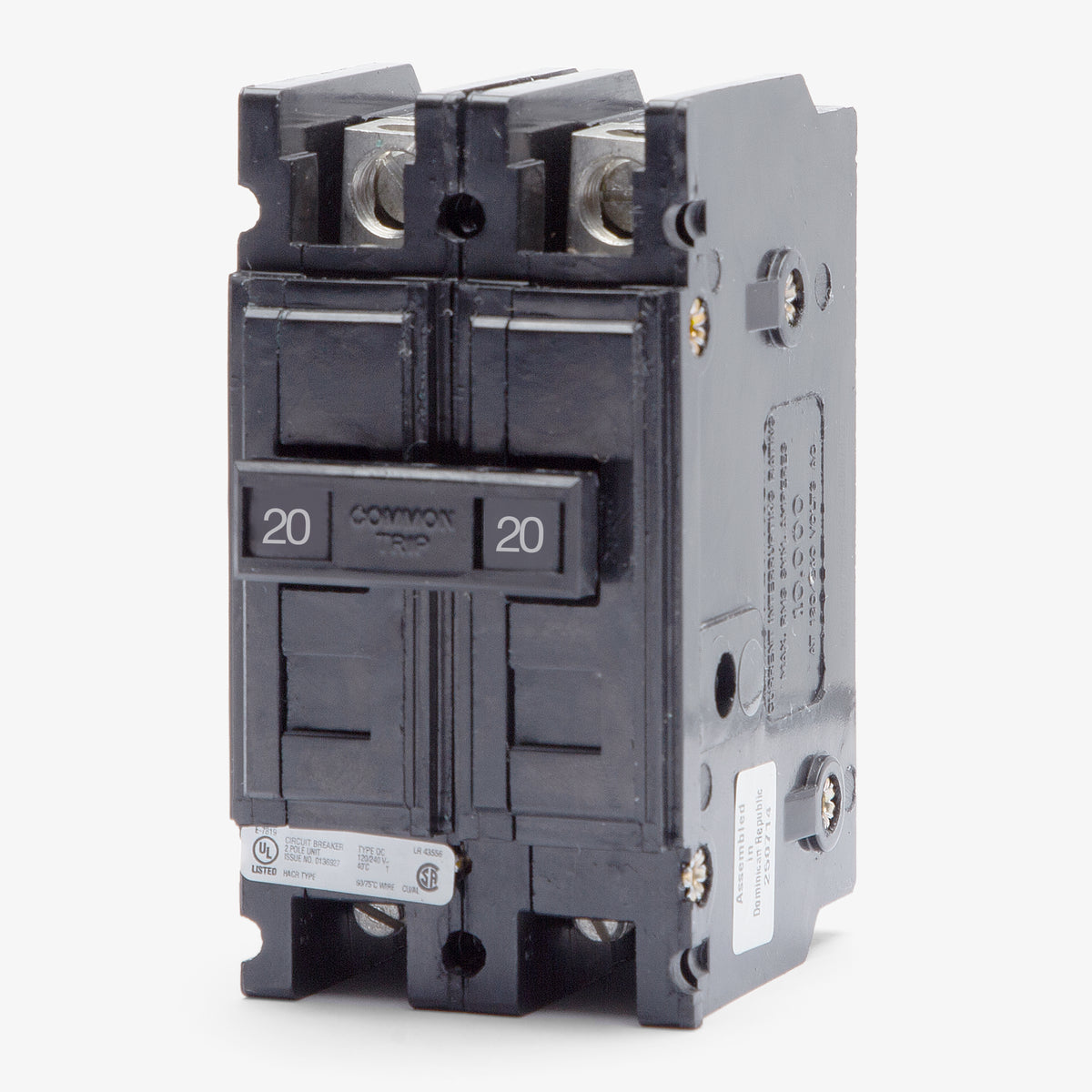

Eaton / Cutler-Hammer QC2020 Miniature Circuit Breaker
- 20A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC2020
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC2020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC2020 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QC2020 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2020 |
| Series | QC |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QC2020 - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2020-R |
| Series | QC |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
30A 2 Pole Miniature Circuit Breaker
10A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for robust performance, the Eaton QC2020 is a 20-amp, two-pole miniature circuit breaker. It belongs to the Quicklag QC family, offering precise thermal-magnetic trip responses to protect wiring from overcurrent events. Designed with a cable-in/cable-out mounting style, this breaker installs securely into Eaton Quicklag panelboards. The unit comes equipped with box lugs that accommodate 14-10 AWG wire. Capable of handling 10 kAIC fault currents, the breaker is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2020 |
| Series | QC |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
8 answersWhat enclosures and panels are compatible with the QC2020 breaker?
The QC2020 is a cable-in/cable-out breaker designed for Eaton Quicklag panelboards, industrial control panels, and standalone enclosures. It can also be mounted on a standard DIN rail if equipped with the proper Eaton DIN rail adapter.

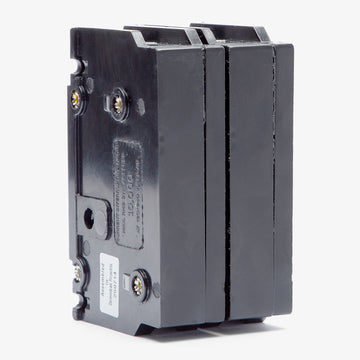

How does the QC2020 mount inside a panel?
The QC2020 is neither a plug-on nor a bolt-on breaker. It is a panel-mounted, cable-in/cable-out feed-thru breaker that uses box lugs for both line and load side wiring connections.
What is the difference between the QC2020, QCR2020, and QCF2020?
While all three are 20-amp, two-pole Quicklag breakers, their mounting styles differ. The QC2020 is the standard cable-in/cable-out version. The QCR2020 is designed for rear mounting, and the QCF2020 is designed for front mounting.
Can the QC2020 be used in DC voltage applications?
Yes, this breaker carries DC interrupting ratings. It provides a 5 kAIC rating at 48VDC and a 3.8 kAIC rating at 62.5VDC, making it suitable for low-voltage control circuits.
Is the QC2020 HACR rated for HVAC equipment?
Yes, Eaton Quicklag QC breakers from 10A to 100A, including the 20-amp QC2020, are HACR rated. They are suitable for heating, air conditioning, and refrigeration equipment circuits.

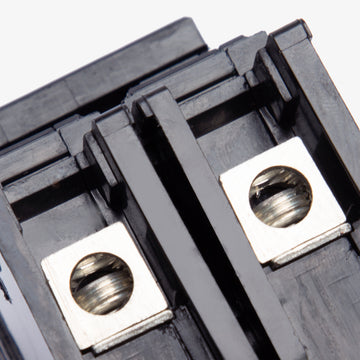

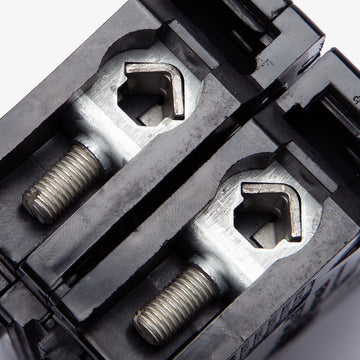

What are the accepted wire sizes for the QC2020 terminals?
The box lugs accept 14 AWG to 10 AWG copper or aluminum wire. Both line and load side connections should be torqued according to the manufacturer specifications printed on the breaker label.
How do you install the QC2020 onto a DIN rail?
Because the QC2020 is natively a panel-mount breaker, it requires an Eaton QC DIN rail adapter kit to securely attach to a standard 35mm DIN rail inside a control panel.
Does the QC2020 offer adjustable trip settings?
No, the QC2020 features fixed thermal and fixed magnetic trip mechanisms. It provides standard Long-Time and Instantaneous (LI) overcurrent protection that cannot be adjusted in the field.
