Eaton / Cutler-Hammer RGH325033E - 2500A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGH325033E

Eaton / Cutler-Hammer RGH325033E - 2500A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGH325033E
Select Item Condition
Earn 19291 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer RGH325033E - 2500A 3 Pole Molded Case Circuit Breaker

New

$19291.64 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

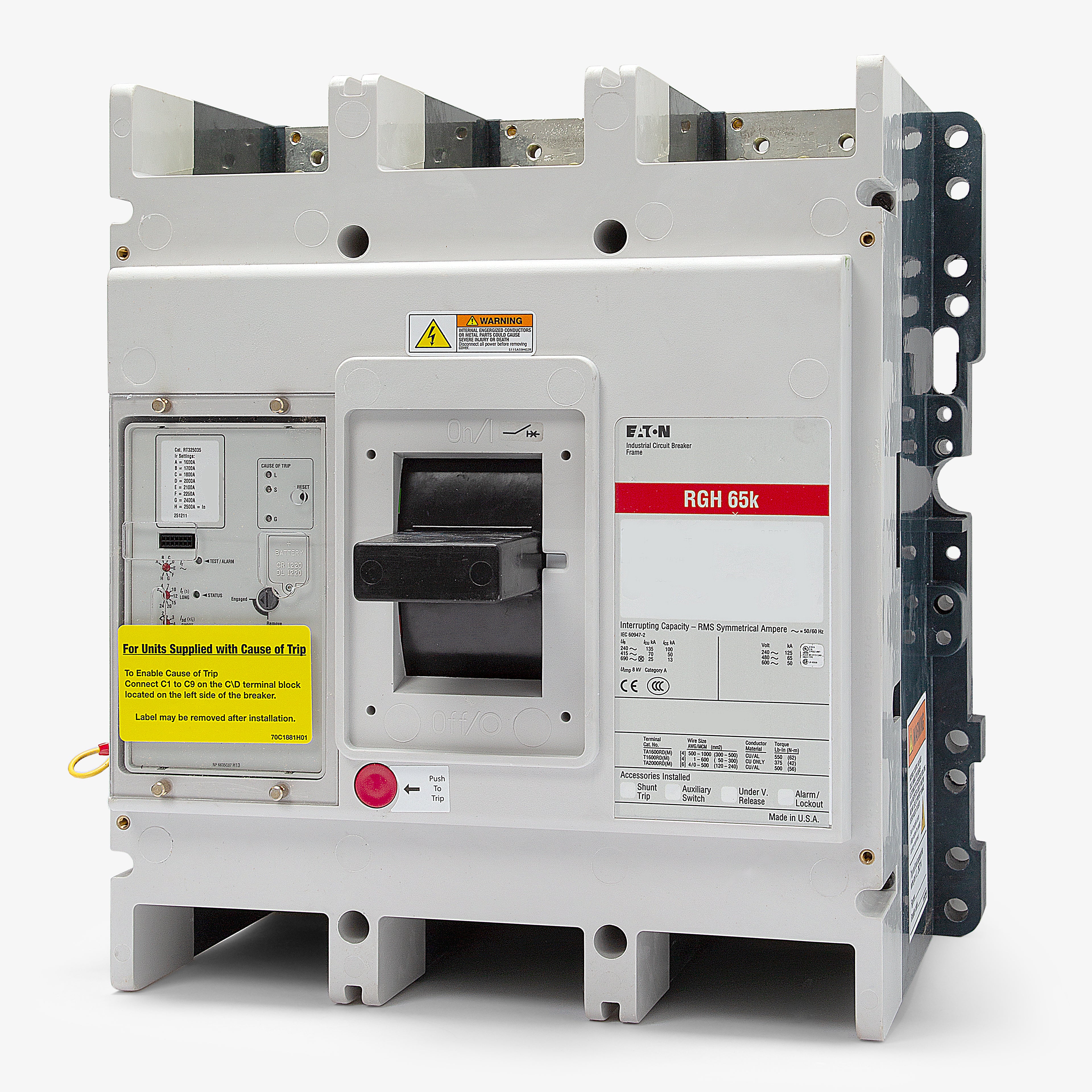

Built for high-capacity power distribution, the Eaton RGH325033E functions as a 3-pole, 2500A molded case circuit breaker in the Series G R-Frame family. It installs into Eaton Pow-R-Line switchboards and motor control centers to safeguard industrial circuits. Equipped with an advanced electronic trip unit, it allows precise coordination through adjustable Long-Time and Short-Time (LS) pickup settings. This 80% rated MCCB features true RMS sensing and reverse feed capability.

Specifications

Brand Eaton / Cutler-Hammer
Series RGH
Amperage 2500A
Amperage Range 1600-2500A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC
Mounting Style Unit Mount

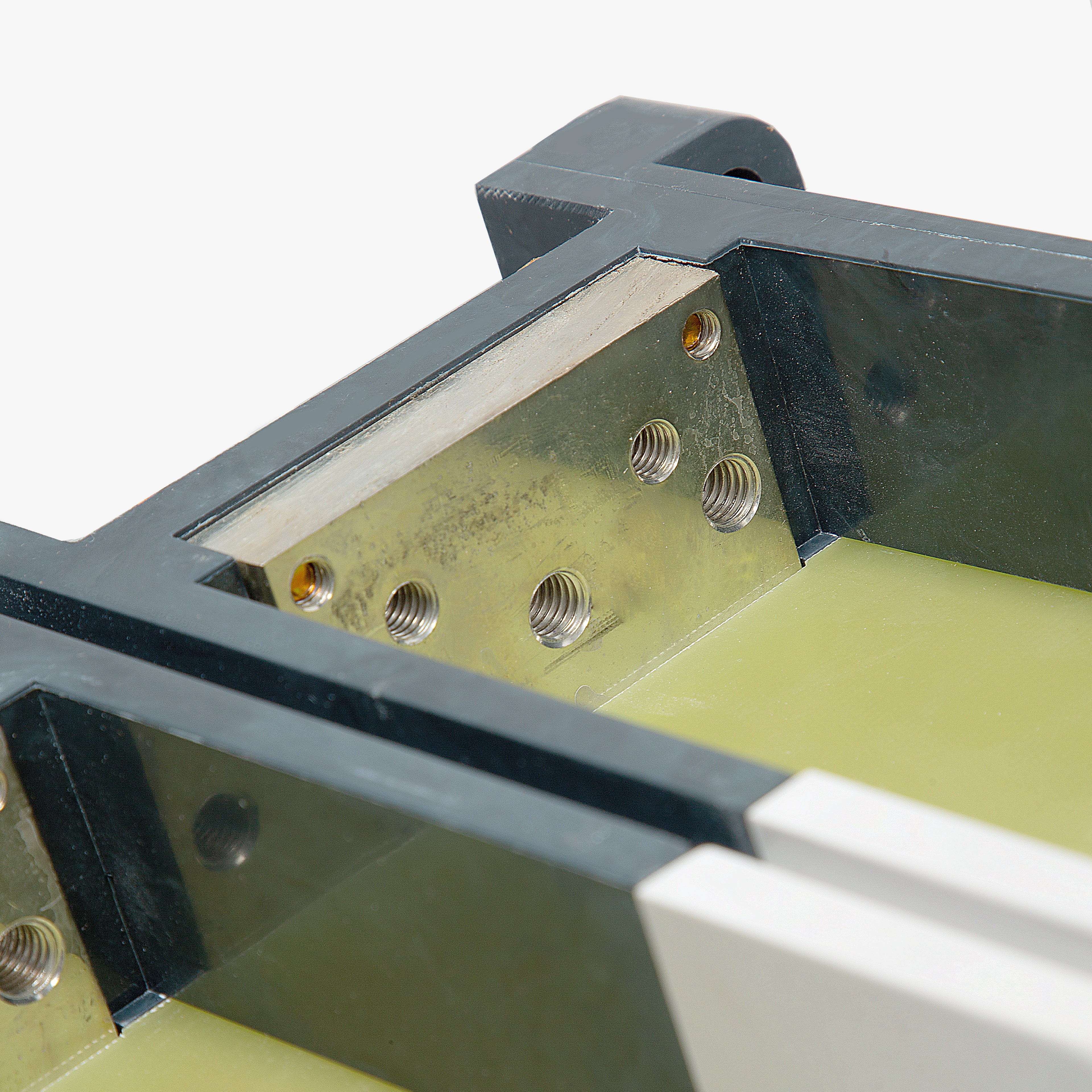

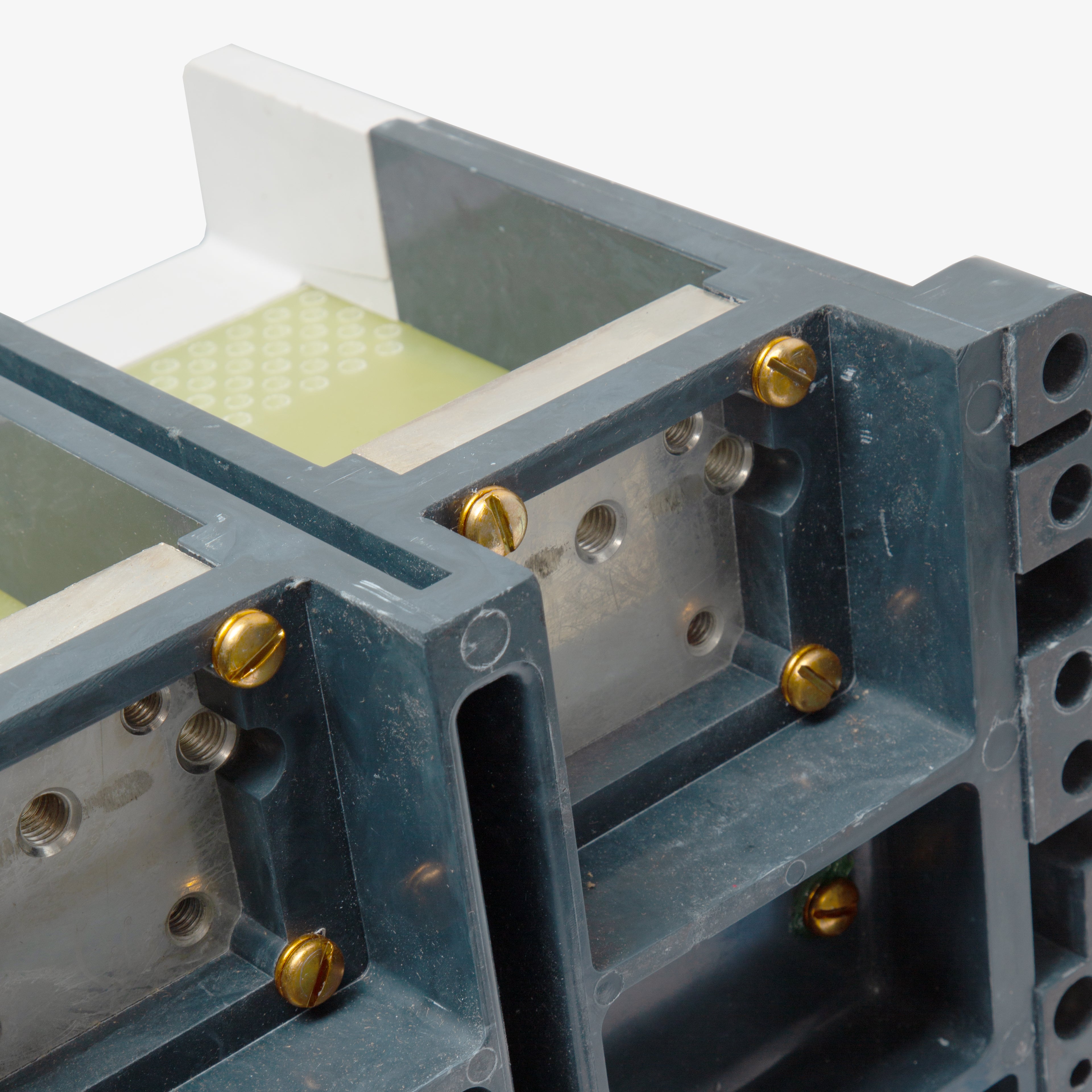

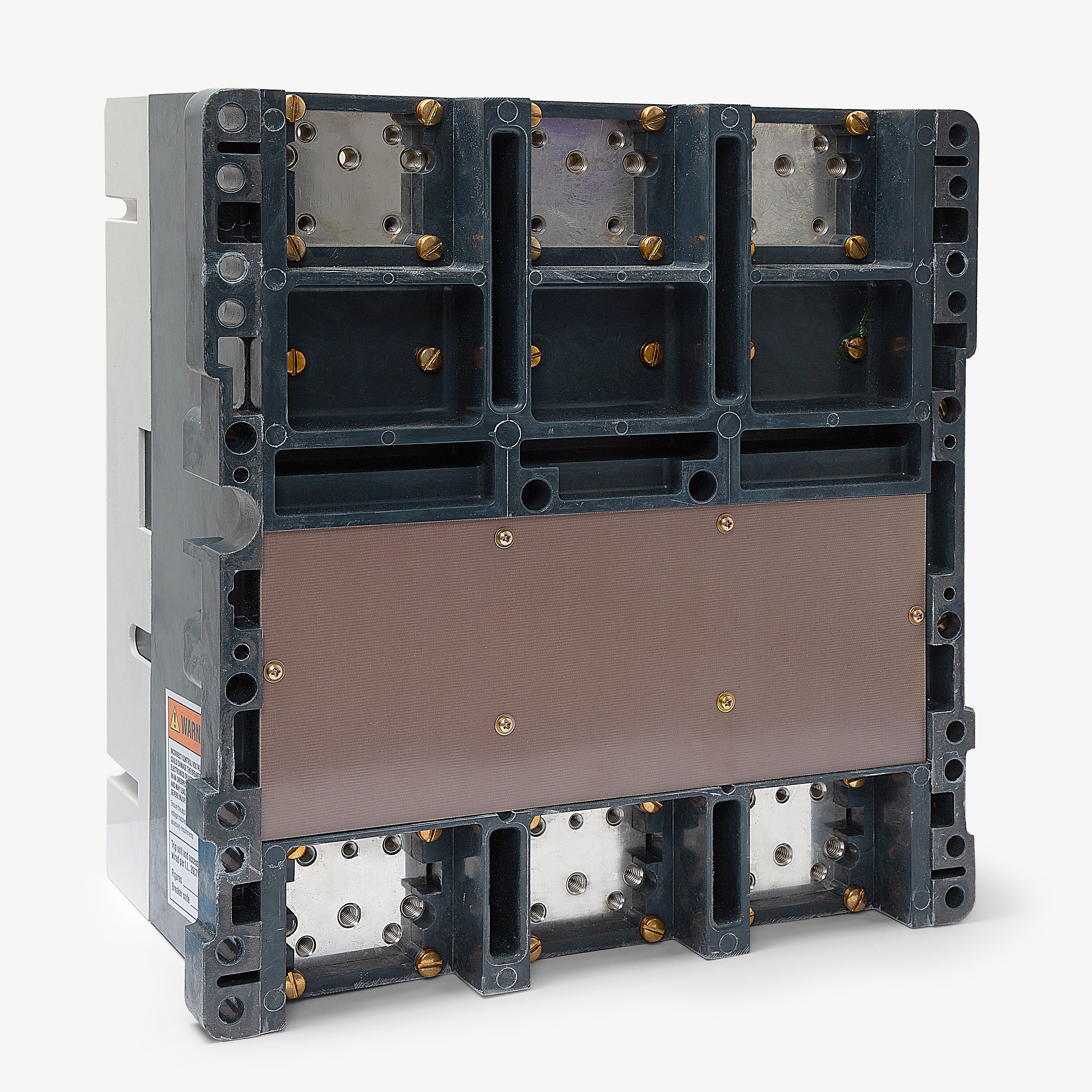

Terminal Type Stud/Tapped Pad
For Use With Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers
Trip Technology Electronic Trip
Trip Function Code LS
Trip Function Long-Time, Short-Time
Trip Adjustability Adjustable
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle
Accessories Imperial Tapped Line/Load Pads
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CCC, CE, CSA, IEC, KEMA, UL
Temp Rating 40C
Construction Features 80% Rated, Reverse Feed, True RMS Sensing, Zone Selective Interlocking
