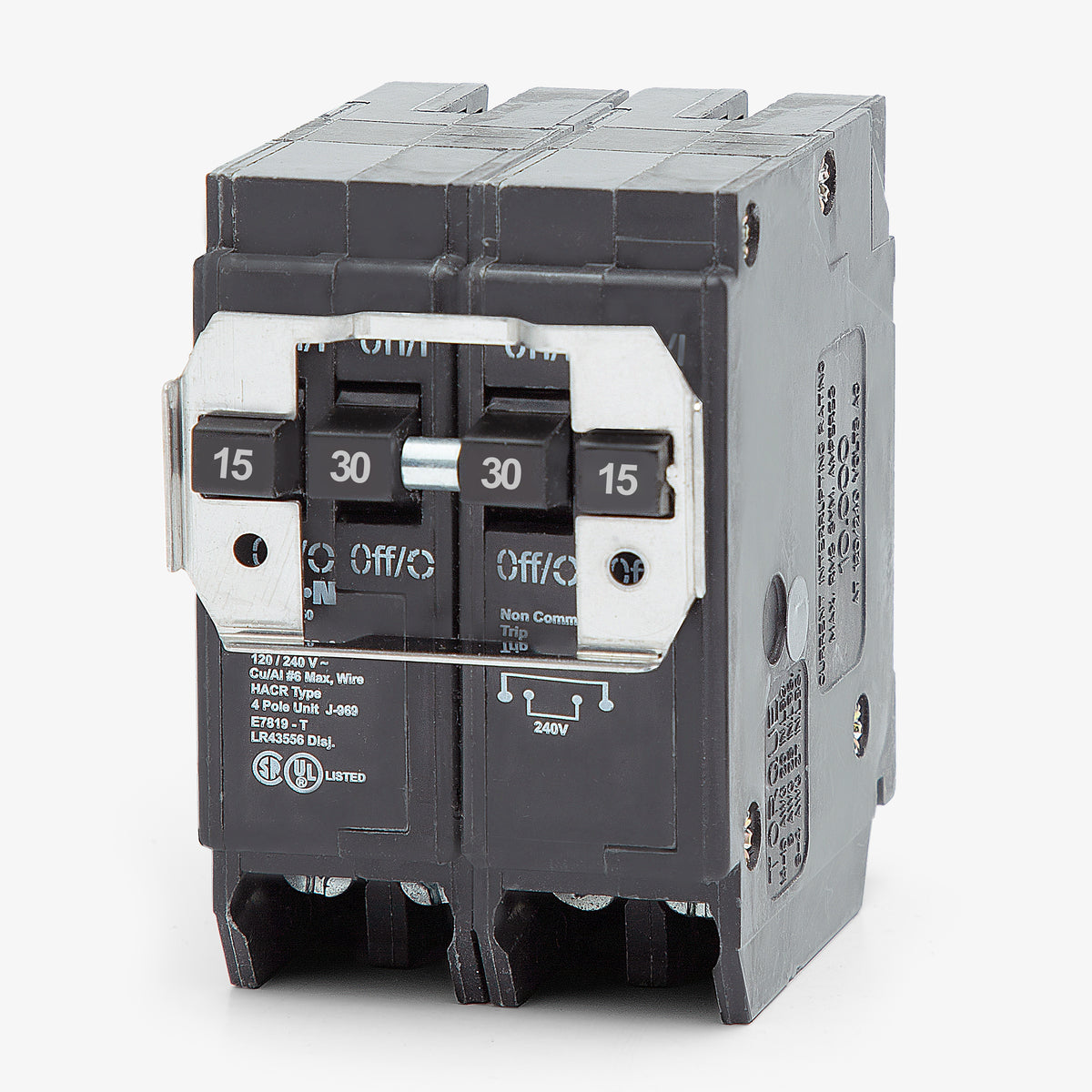

Eaton / Cutler-Hammer BQ215230 15/30A Quadplex Miniature Circuit Breaker
- 15/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ215230
15/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ215230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ215230 - 15/30A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
20/30A Quadplex Miniature Circuit Breaker
25/30A Quadplex Miniature Circuit Breaker
30/15A Quadplex Miniature Circuit Breaker
Description
Designed for Eaton's BR family, the BQ215230 quadplex miniature breaker maximizes wiring capacity. By combining a 15A two-pole and a 30A two-pole circuit, it doubles circuit density compared to standard breakers. Engineered for plug-on mounting, it installs into Eaton Type BR panelboards requiring two 1-inch spaces. It serves as a direct replacement for older Cutler-Hammer BQ215230 models. Rated 10 kAIC, it features thermal-magnetic trip technology and is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQ |
| Amperage | 15/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | #14-4 AWG Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Rejection Tab |
Product FAQs
6 answersIs the Eaton BQ215230 a CTL or non-CTL circuit breaker?
The BQ215230 is a CTL (Circuit Total Limiting) breaker. It includes a physical rejection tab and must be installed in Type BR load centers specifically notched to accept tandem or quadplex breakers.
How much panel space does the BQ215230 quadplex breaker require?
This quadplex breaker requires two standard 1-inch spaces in a compatible Eaton or Cutler-Hammer Type BR load center.
How are the 15A and 30A circuits configured on this breaker?
The BQ215230 features a 15A 2-pole circuit on the outer poles and a 30A 2-pole circuit on the center poles. Both circuits feature independent trip functions.
What is the difference between the BQ215230 and BQC215230?
The BQ215230 features independent trip on both the 15A and 30A circuits. The BQC215230 is the common trip version, which is typically required for 240V circuits supplying a single load.
Can the BQ215230 replace older Bryant or Westinghouse quad breakers?
Yes, Eaton manufactures the BR line as a direct replacement for legacy Cutler-Hammer, Bryant, Westinghouse, and Challenger Type BR circuit breakers.
Is the Eaton BQ215230 rated for HVAC equipment?
Yes, Eaton Type BQ quadplex circuit breakers carry a listing for HACR (Heating, Air Conditioning, and Refrigeration) applications.
