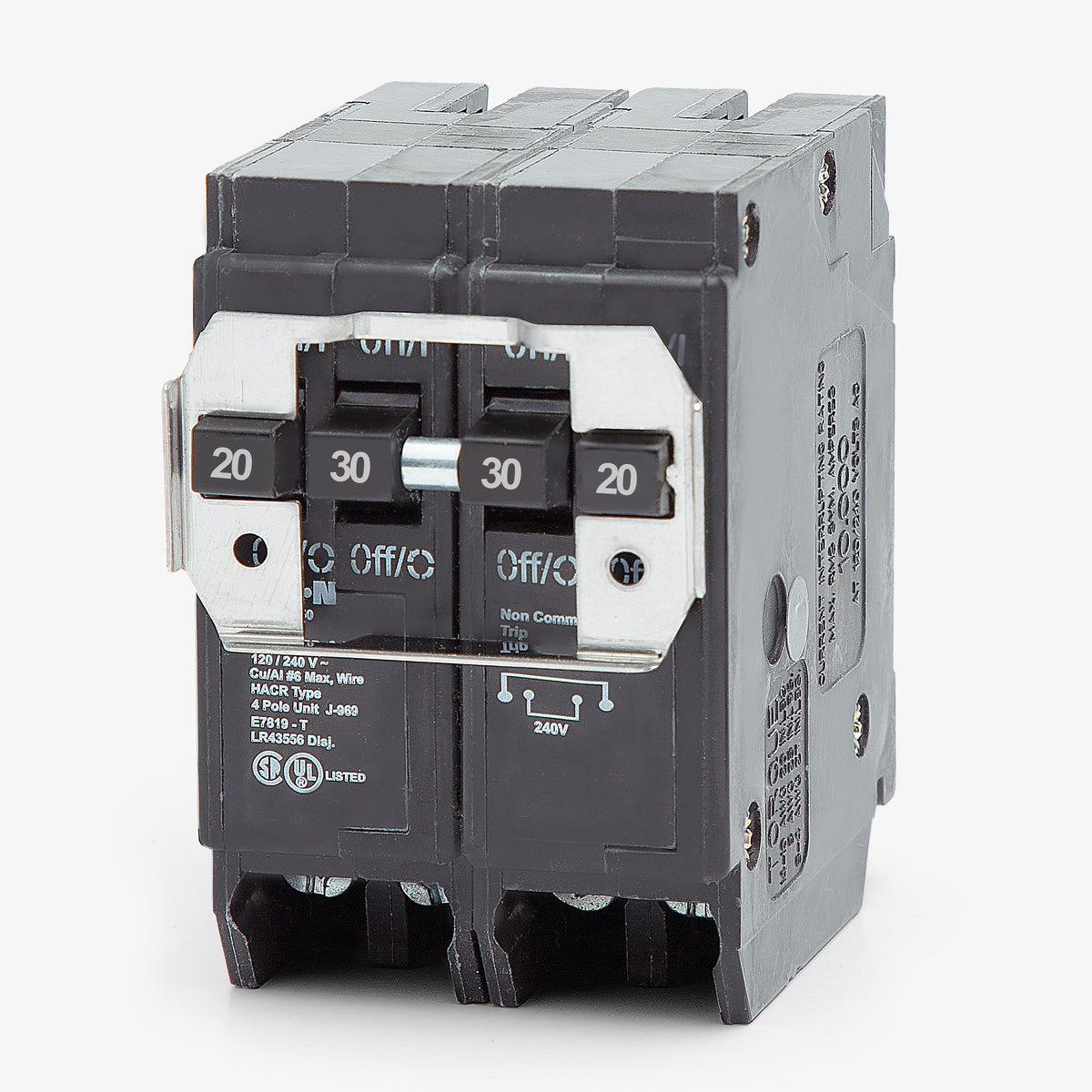

Eaton / Cutler-Hammer BQ220230 20/30A Quadplex Miniature Circuit Breaker
- 20/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ220230
20/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ220230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ220230 - 20/30A Quadplex Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BQ220230 - 20/30A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ220230 |
| Series | BQ |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Rejection Tab, Independent Trip |
Sold out
Quantity
Eaton / Cutler-Hammer BQ220230 - 20/30A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ220230-R |
| Series | BQ |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Rejection Tab, Independent Trip |
Similar Items
25/30A Quadplex Miniature Circuit Breaker
30/15A Quadplex Miniature Circuit Breaker
15/30A Quadplex Miniature Circuit Breaker
Description
Part of the BR family, the Eaton BQ220230 is a space-saving quadplex breaker providing one 20A two-pole and one 30A two-pole circuit. It is engineered for applications where panel space is limited. This plug-on unit mounts into Eaton BR, Bryant, Challenger, and Westinghouse load centers, requiring two 1-inch spaces. It serves as a substitute for BRD220230 and BQC220230 models. Rated 10kAIC at 120/240VAC, it features independent trip and a rejection tab for reliable protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BQ220230 |
| Series | BQ |
| Amperage | 20/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Bryant Load Centers, Challenger Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Rejection Tab, Independent Trip |
Product FAQs
6 answersWhat panels accept the BQ220230 quadplex breaker?
This Type BQ plug-on breaker is compatible with Eaton BR load centers, as well as legacy Westinghouse, Bryant, and Challenger load centers that accept 1-inch BR-style breakers.
How many panel spaces are required to install the BQ220230?
This quadplex breaker requires two standard 1-inch spaces in the panel, allowing you to add four circuits in the space of two.
What is the difference between Type BQ and Type BQC quadplex breakers?
Type BQ breakers, like the BQ220230, feature an independent trip mechanism where each pole trips independently. Type BQC breakers feature a common trip mechanism where the center or outer poles are internally interlocked to trip synchronously.
Is the BQ220230 a CTL or non-CTL circuit breaker?
This is a Circuit Limiting (CTL) breaker. It includes a rejection tab and must be installed in panel positions that have notched bus stabs.
Is the BQ220230 rated for HACR applications?
Yes, this Type BQ quadplex breaker is UL listed for Heating, Air Conditioning, and Refrigeration (HACR) applications.
How are the 20A and 30A circuits arranged on this quadplex breaker?
The two 20-amp circuits are located on the outer poles, while the 30-amp circuit is located on the two center poles.
