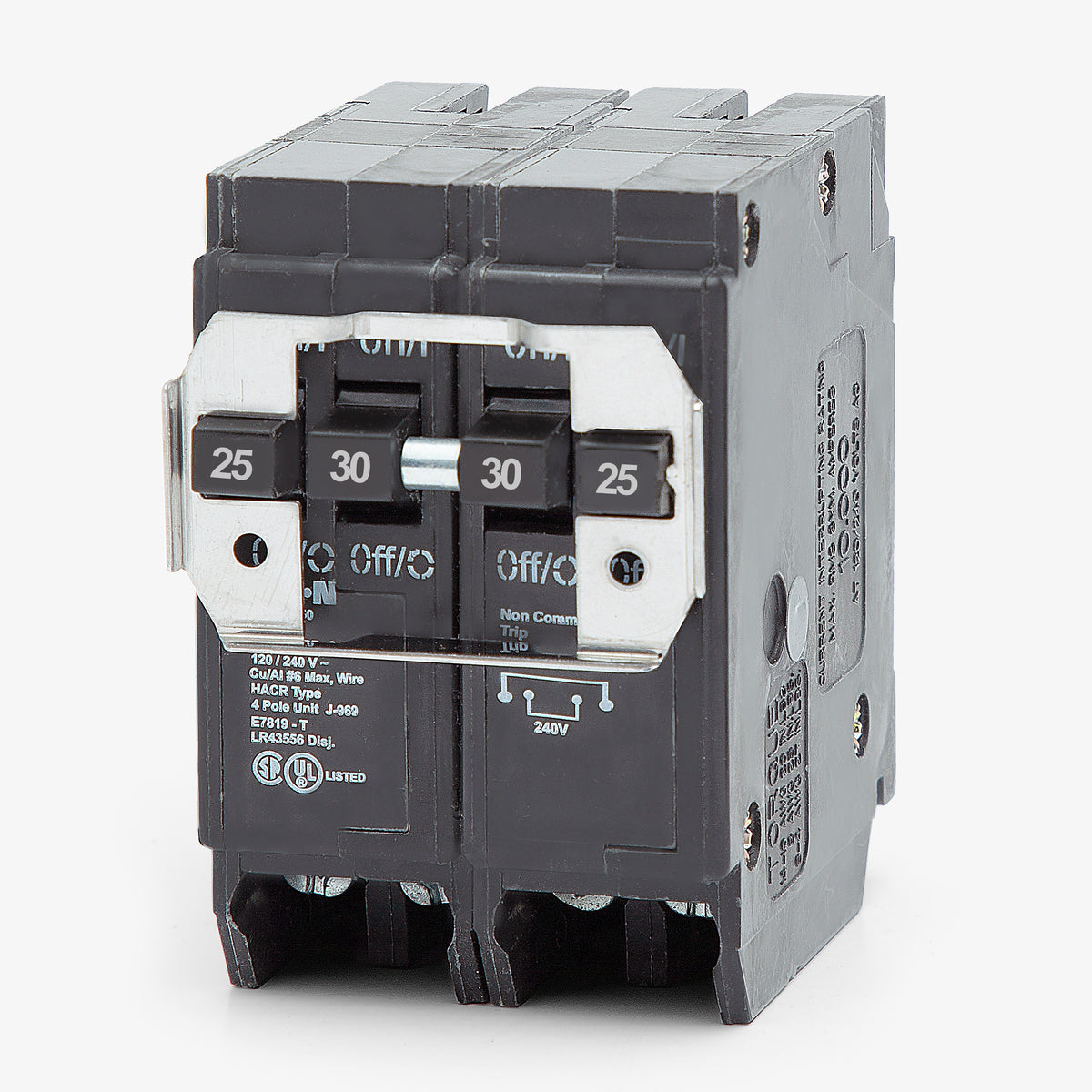

Eaton / Cutler-Hammer BQ225230 25/30A Quadplex Miniature Circuit Breaker
- 25/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQ225230
25/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQ225230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQ225230 - 25/30A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
30/15A Quadplex Miniature Circuit Breaker
15/30A Quadplex Miniature Circuit Breaker
30/20A Quadplex Miniature Circuit Breaker
Description
Providing two separate 2-pole circuits within a single unit, the BQ225230 quadplex breaker is built for residential and commercial distribution. It delivers one 25A and one 30A circuit in a compact form factor. This plug-on breaker mounts into Eaton BR, Bryant, Westinghouse, and Challenger load centers. It requires two 1-inch spaces, making it ideal for expanding capacity in full panels. Rated for 10 kAIC at 120/240V, it features a thermal-magnetic trip mechanism and includes a rejection tab.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQ |
| Amperage | 25/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers |
| Wire Gauge | #14-4 AWG Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | CSA C22.2 No. 5, Federal Specification W-C375, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Independent Trip, Rejection Tab |
Product FAQs
5 answersWhich electrical panels can accept the BQ225230 quad breaker?
This Type BR plug-on breaker is designed for Eaton BR load centers. It is also fully compatible with legacy Bryant, Westinghouse, and Challenger panels that use 1-inch plug-on breakers.
How much panel space does this quadplex breaker require?
The BQ225230 provides two independent 240V circuits, one 25A and one 30A, while only occupying two standard 1-inch spaces in the load center. This configuration is ideal for maximizing capacity in full panels.
What wire sizes are compatible with the terminals on the BQ225230?
The box lugs on this breaker are rated to accept both copper and aluminum conductors ranging from 14 AWG to 4 AWG.
Can this breaker be used to replace older Bryant or Westinghouse quad breakers?
Yes. Because Eaton acquired the Cutler-Hammer, Bryant, and Westinghouse breaker lines, the BQ225230 serves as the direct replacement for older 25/30A quad breakers from those legacy brands.
What type of trip mechanism does this breaker use?
It features a thermal-magnetic trip unit with long-time and instantaneous (LI) functions, providing reliable protection against both gradual overloads and sudden short circuits.
