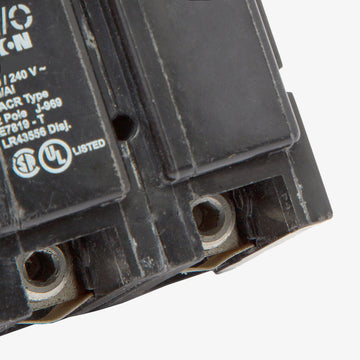

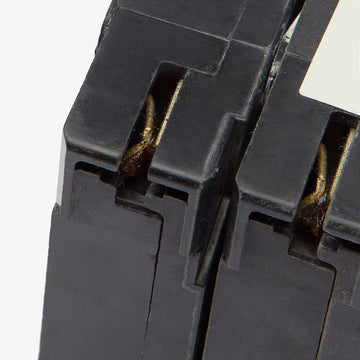

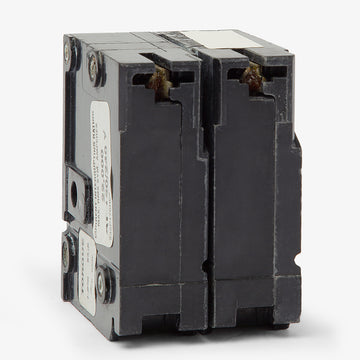

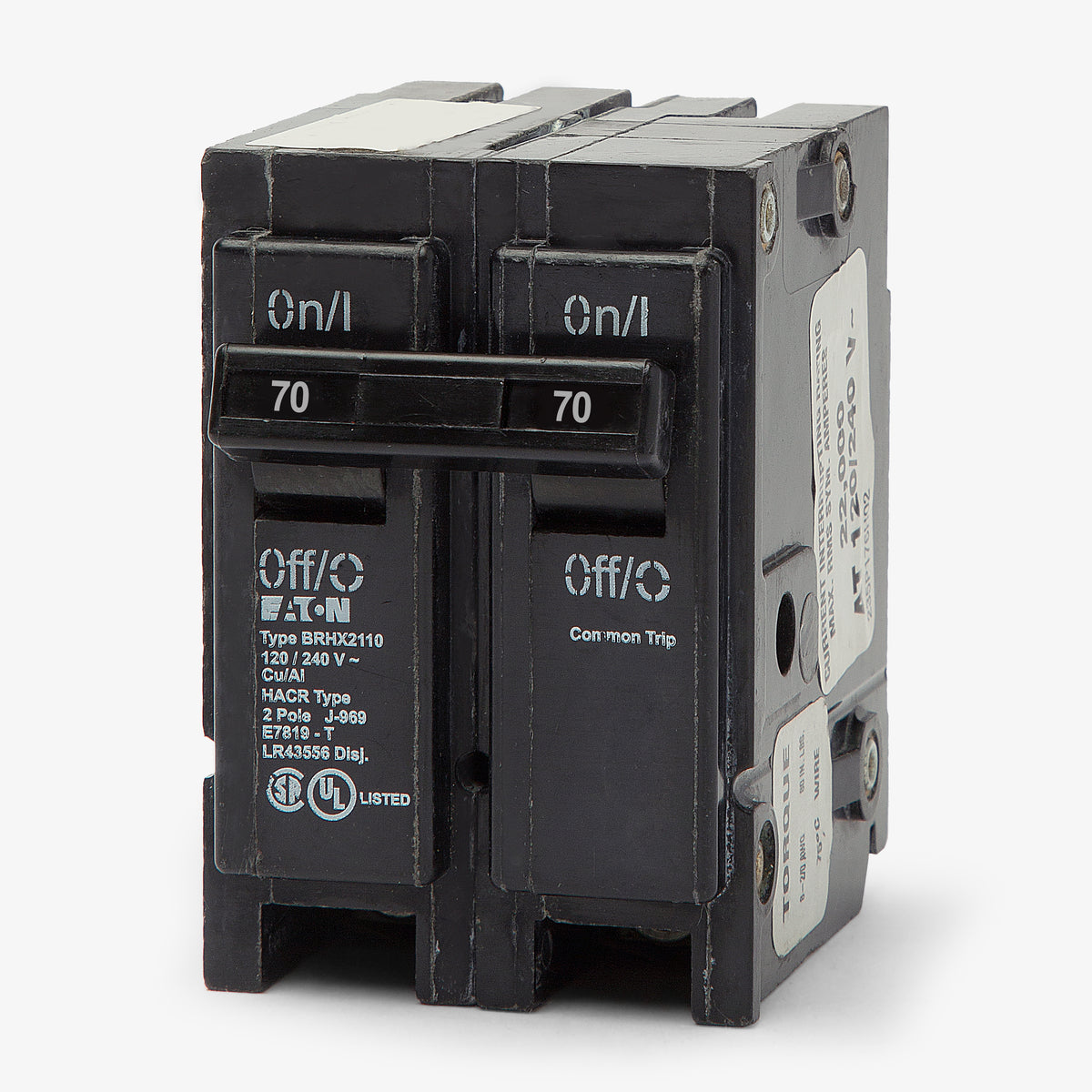

Eaton / Cutler-Hammer BRH270 Miniature Circuit Breaker
- 70A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRH270
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH270
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRH270 - 70A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Rated for 70 amps, this two-pole thermal-magnetic circuit breaker is designed to protect heavy-duty residential and commercial circuits. It easily mounts into Eaton Type BR load centers and compatible meter breaker panels. Distinguishing itself with a high-magnetic trip setting, the BRH270 handles demanding inrush currents while maintaining a 22 kAIC interrupt rating at 120/240VAC. The plug-on breaker accommodates 4-1/0 AWG copper or aluminum wiring and includes a common trip mechanism.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRH |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | Federal Specification W-C376, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity, High-Magnetic |
Product FAQs
5 answersWhat load centers are compatible with the Eaton BRH270?
The BRH270 is designed for use in Eaton Type BR load centers. It is also UL-approved for installation in specific legacy Westinghouse, Challenger, and Bryant panels that accept Type BR breakers. Always verify your panel's labeling to confirm compatibility.
How many panel spaces does the BRH270 require?
As a 2-pole miniature circuit breaker with a 1-inch per pole width, the BRH270 requires two standard 1-inch spaces in your load center.
What is the difference between the Eaton BR270 and the BRH270?
The primary difference is the short circuit interrupting rating. The standard BR270 has a 10kAIC rating, while the BRH270 features a higher interrupting rating of 22kAIC at 240V for applications requiring greater fault protection.
Is the Eaton BRH270 HACR rated?
Yes, the BRH270 is HACR rated. This makes it suitable and code-compliant for protecting heating, air conditioning, and refrigeration equipment circuits.
Does the BRH270 provide ground fault or arc fault protection?
No, the BRH270 is a standard thermal magnetic circuit breaker. It does not provide GFCI or AFCI protection.
