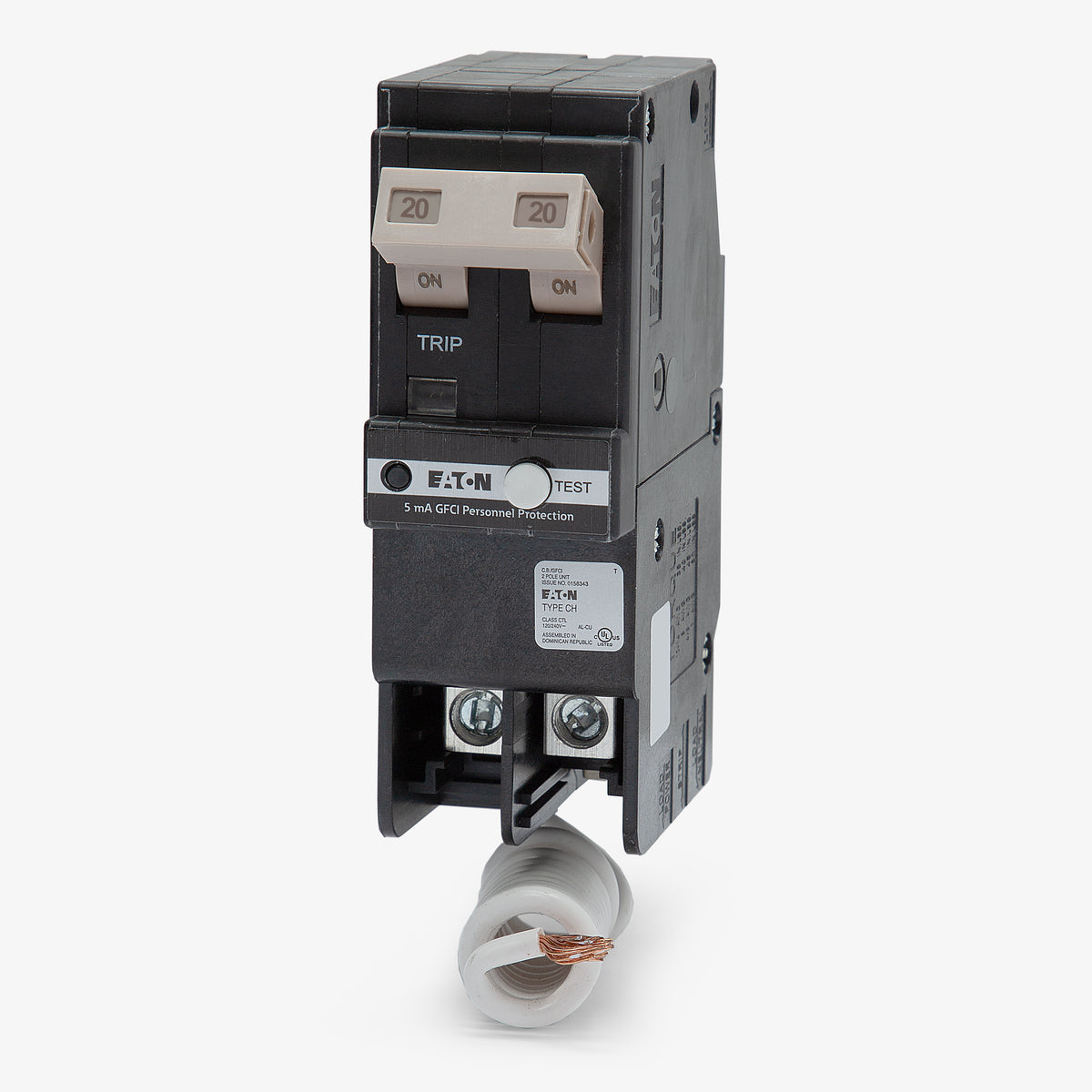

Eaton / Cutler-Hammer CHFN220GF GFCI Miniature Circuit Breaker
- 20A
- 2 Pole

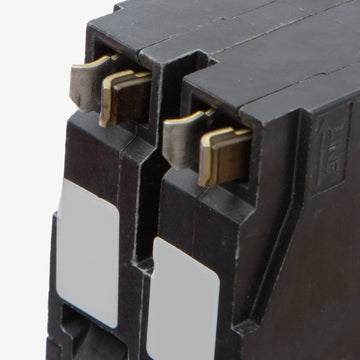

- Plug-On
Eaton / Cutler-Hammer
CHFN220GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFN220GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHFN220GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFN250GF
50A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFN260GF
60A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFN120GF
20A GFCI Miniature Circuit Breaker
Description
Engineered for 240V applications requiring 5mA personnel safety, this 20-amp two-pole device monitors both hot legs for leakage. It satisfies modern NEC code mandates for commercial and residential damp environments while performing automatic self-testing. The breaker installs seamlessly into standard Eaton CH load centers using a plug-on mounting style. It replaces legacy CHFGF220 and CH220GF part numbers, connecting to the panel via an included pigtail neutral wire. Features common trip.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHFN |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-3 AWG |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Self-Test, Common Trip |
Product FAQs
8 answersWhat load centers are compatible with the Eaton CHFN220GF?
This breaker is designed exclusively for Eaton CH series load centers. It requires two 3/4-inch spaces and connects to the neutral bar using the included pigtail wire.
Can I use the CHFN220GF to replace an older CH220GF or CHN220GF?
Yes, the CHFN220GF is the direct, current-generation replacement for legacy CH220GF and CHN220GF 20A GFCI breakers. It fits the same CH series panels and provides the same 5mA Class A ground fault protection.
Does the CHFN220GF require a plug-on neutral panel?
No, this breaker features a pigtail neutral connection. It can be installed in standard Eaton CH load centers by wiring the pigtail directly to the panel's neutral bus bar, making it compatible with older legacy panels.
How much panel space does the CHFN220GF require?
As a 2-pole breaker in the CH family, it requires two standard 3/4-inch spaces in your load center.
What wire sizes are accepted by the CHFN220GF terminals?
The box lug terminals on this breaker accept copper or aluminum wiring from 14 AWG up to 3 AWG.
What level of ground fault protection does the CHFN220GF provide?
It provides Class A ground fault protection, which trips at 5mA to protect personnel from electrical shock hazards in wet or damp locations.
How can I tell if the CHFN220GF has tripped due to a fault?

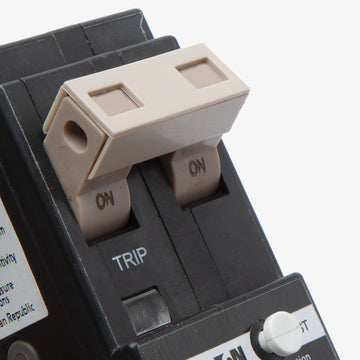

The CHFN series features a visual trip flag and a trip-to-OFF handle mechanism, making it easy to identify when the breaker has tripped compared to one that was manually turned off.
What applications is the CHFN220GF suitable for?
This 2-pole, 120/240VAC breaker is ideal for 240V equipment or multi-wire branch circuits requiring 20 amps and GFCI protection, such as pool pumps, hot tubs, or outdoor receptacles.
