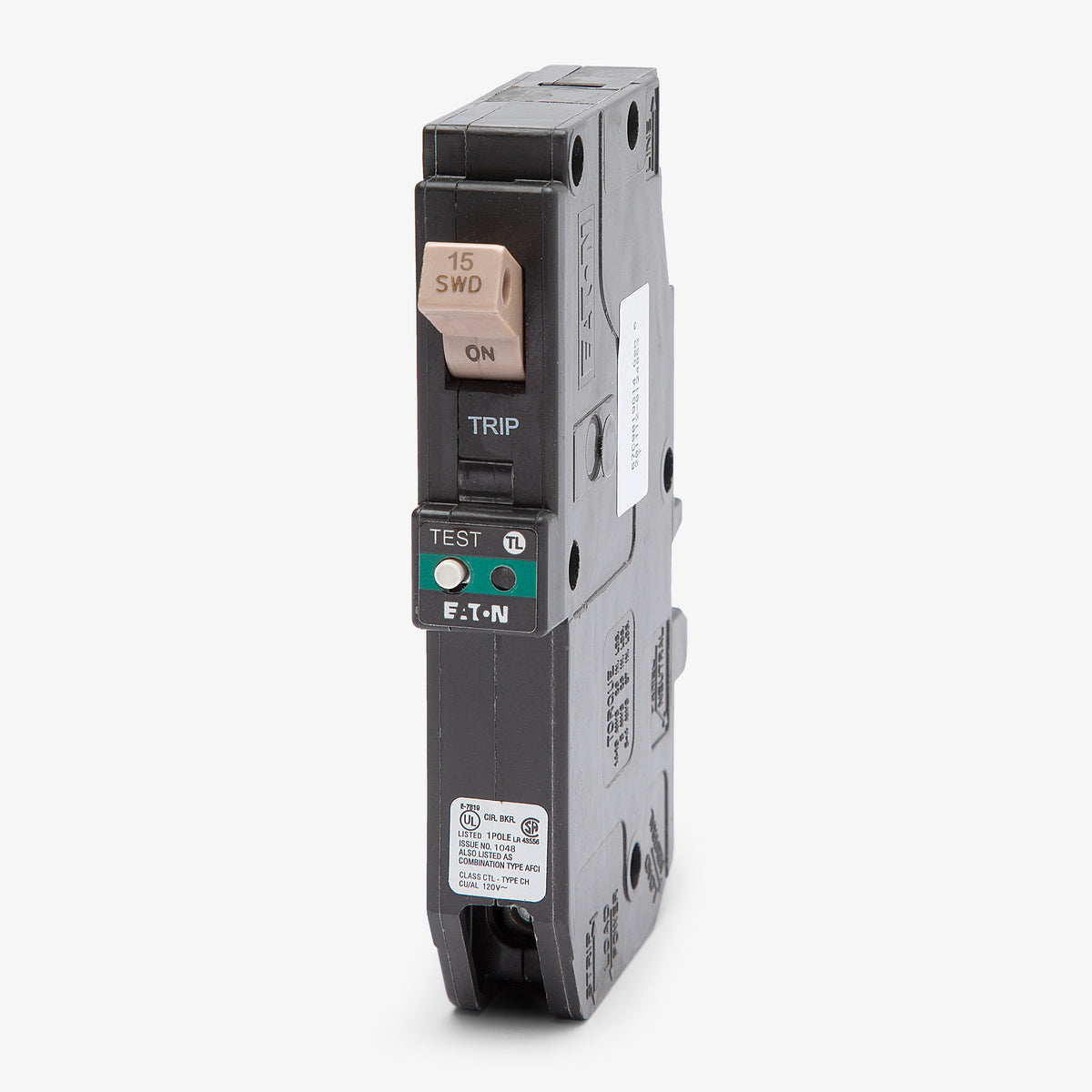

Eaton / Cutler-Hammer CHFP115AF AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFP115AF
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFP115AF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHFP115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Built to meet strict NEC safety standards, this 15A single-pole breaker delivers combination arc-fault mitigation for residential wiring. The Eaton CHFP115AF is ideal for protecting lighting and receptacle circuits. Designed specifically for Eaton CH Plug-On Neutral (PON) load centers, it eliminates the need for a pigtail wire, ensuring a cleaner gutter space. It replaces older CH115CAFPN and CHFCAF115PN breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 1699, UL 489, HACR |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat load centers are compatible with the Eaton CHFP115AF?
This breaker is designed exclusively for Eaton CH-series Plug-On Neutral load centers. It will not fit standard CH panels that require a pigtail connection or BR-series load centers.
Does the CHFP115AF require a pigtail wire for installation?

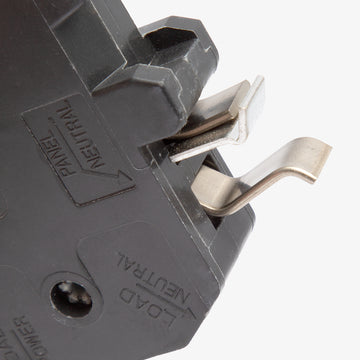

No. As a Plug-On Neutral breaker, it connects directly to the neutral bar built into the load center. This eliminates the need for a separate pigtail wire and frees up gutter space in the panel.
How do I properly seat this plug-on neutral breaker in the panel?
First, firmly press the load side of the breaker down onto the neutral bar. Once securely attached, push down on the line side to connect it to the bus stab. Verify the load side meets the neutral bar and the line side is centered.
Can I use the CHFP115AF to replace older Eaton CH AFCI breakers?
Yes, this model replaces older CH-series 15A plug-on neutral AFCI breakers, including catalog numbers CH115CAFPN and CHFCAF115PN.
What type of protection does this AFCI breaker provide?
It provides combination arc-fault protection, detecting both parallel and series arc faults. This mitigates the risk of electrical fires in residential wiring and meets modern NEC requirements for living spaces.
What does the 10 kAIC rating on this breaker indicate?
The 10 kAIC rating means the breaker can safely interrupt up to 10,000 amps of fault current without sustaining internal damage or causing an electrical hazard.
