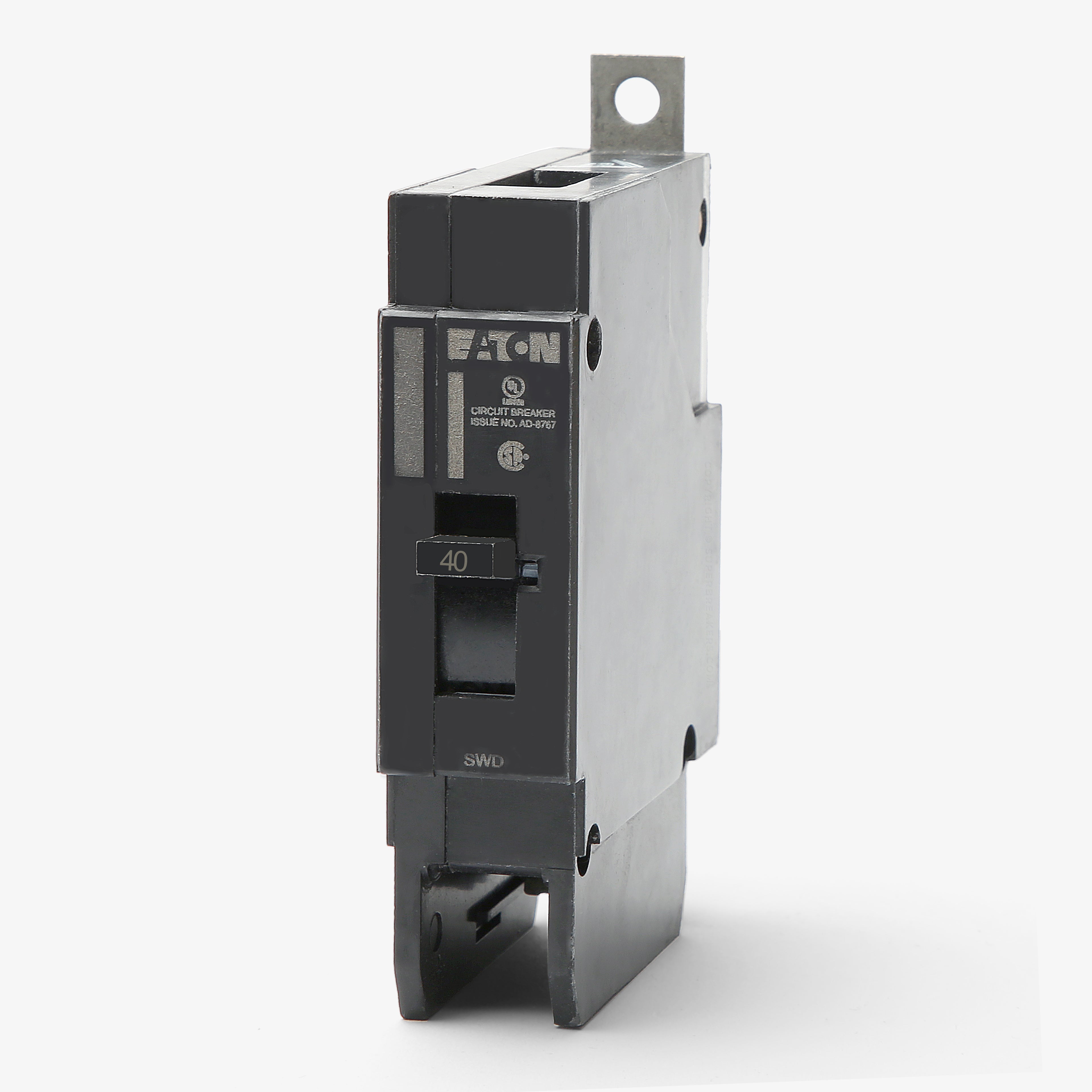

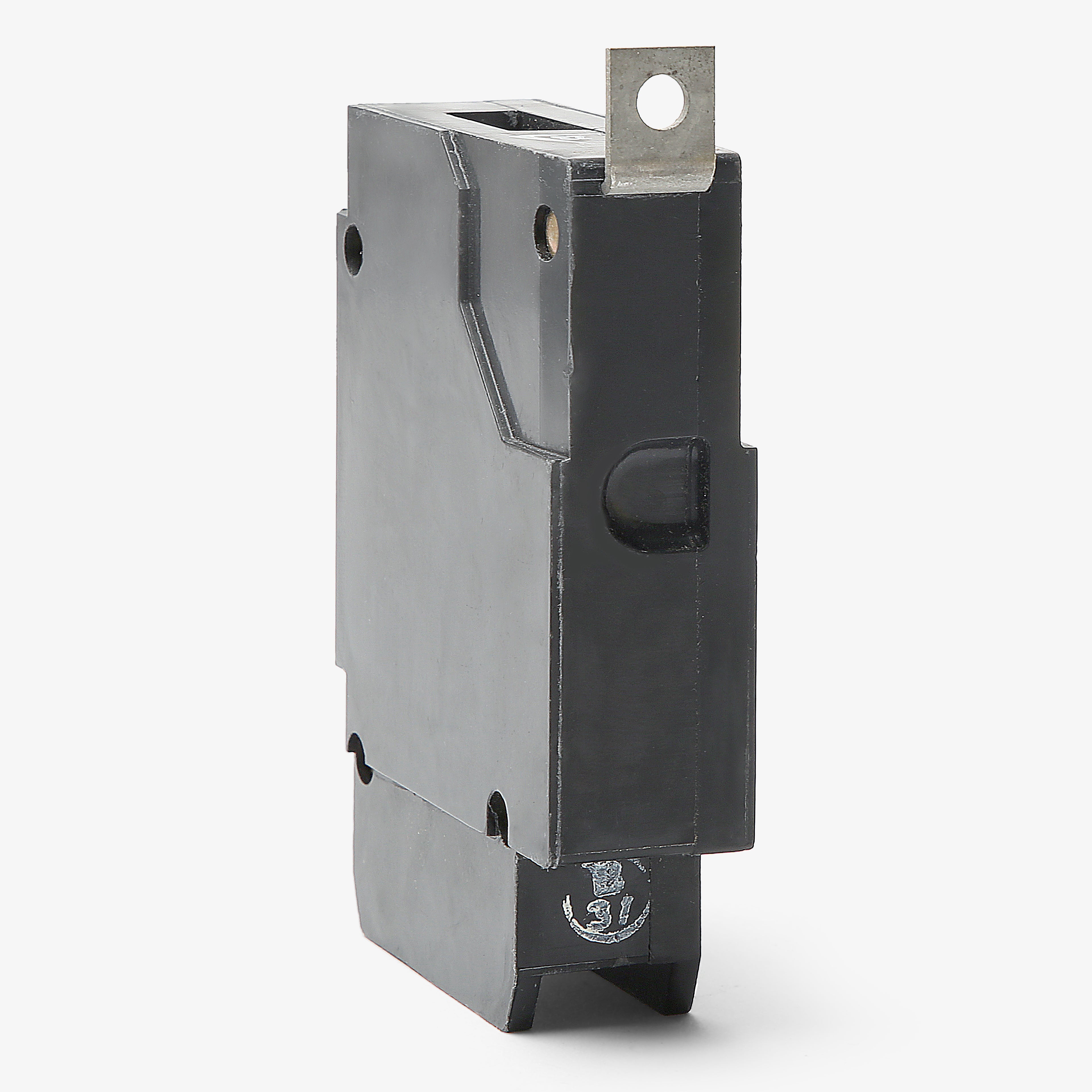

Eaton / Cutler-Hammer GHB1040 Molded Case Circuit Breaker
- 40A
- 1 Pole

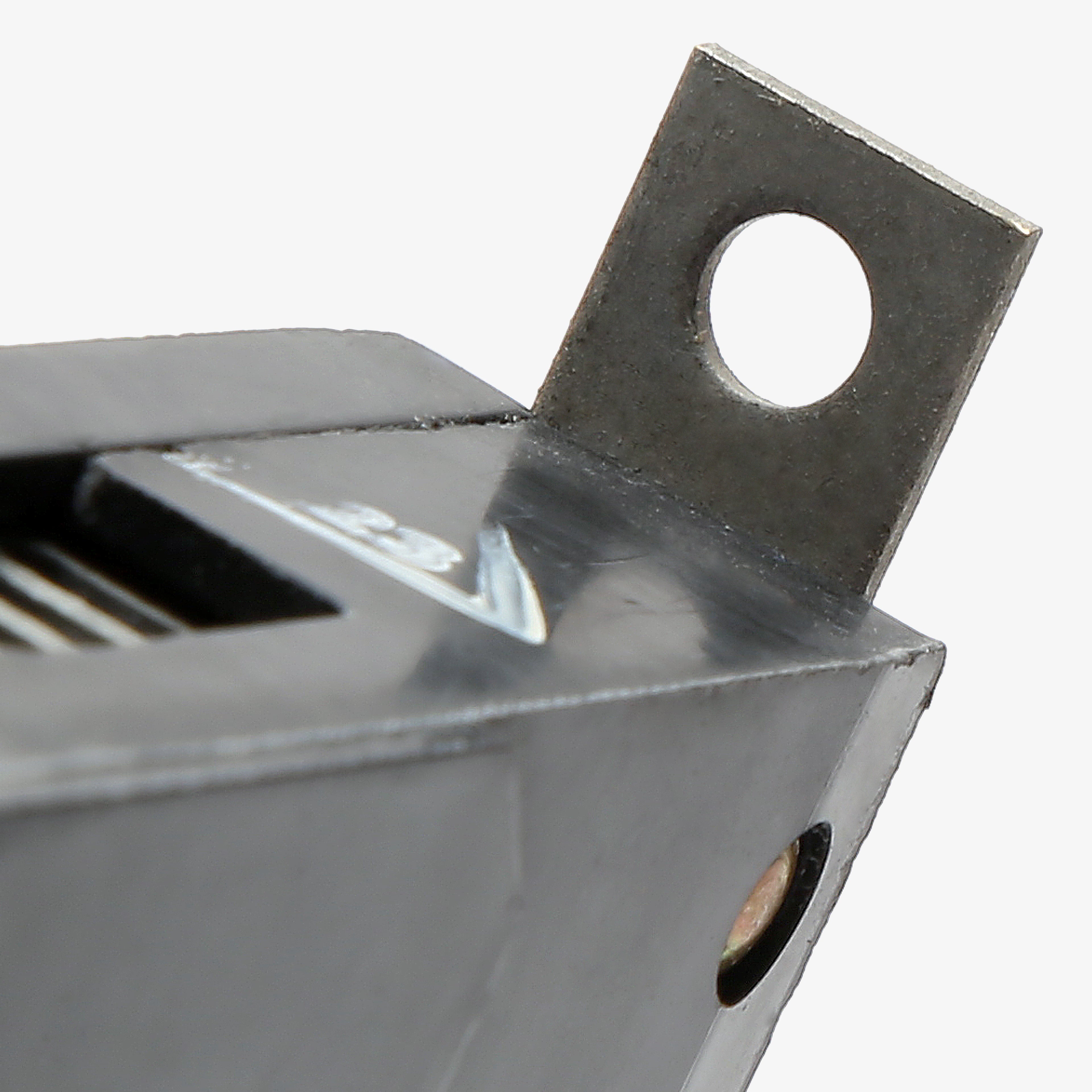

- Bolt-On
Eaton / Cutler-Hammer
GHB1040
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB1040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1040 |
| Series | GHB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|

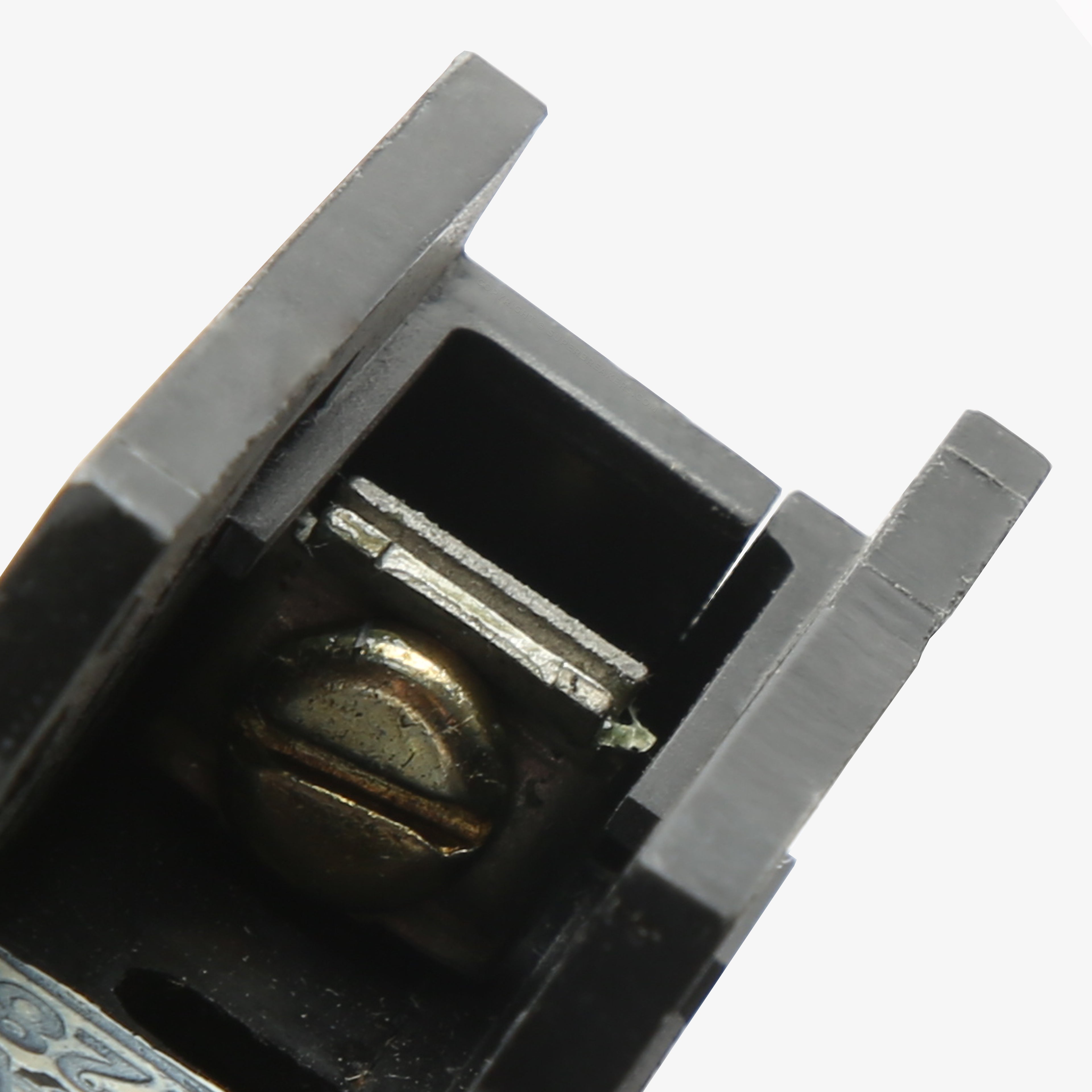

| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer GHB1040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1040-R |
| Series | GHB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
35A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Built for industrial environments, the Eaton GHB1040 is a single-pole 40A molded case circuit breaker providing dependable protection for 120/277VAC and 125VDC systems. This G-frame unit features a bolt-on mounting style for secure connections. It installs into Eaton Pow-R-Line C and Series C panelboards for reliable power distribution. Rated at 14kAIC at 277V, it utilizes fixed thermal-magnetic trip technology. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1040 |
| Series | GHB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the GHB1040 circuit breaker?
The GHB1040 is designed for use in Eaton and Cutler-Hammer Pow-R-Line series panelboards, specifically the PRL1a, PRL2a, and PRL3a, as well as legacy Series C panelboards.
Can the Eaton GHB1040 breaker be reverse fed?
Yes, Eaton G-frame circuit breakers are suitable for reverse feed applications. They are factory sealed and do not have line and load markings, allowing power to be supplied from either side.
Can this breaker be used in direct current (DC) systems?
Yes. Single-pole GHB breakers rated from 15 to 70 amps, including the GHB1040, are approved for DC systems up to 125VDC. Note that 80 to 100 amp models in this frame are not suitable for DC applications.
Is the standard GHB1040 rated for Switching Duty (SWD) or High Intensity Discharge (HID) lighting?
No. In the GHB series, only 15-amp and 20-amp single-pole breakers carry an SWD rating. For HID lighting applications, a specific HID-rated version with an HID suffix is required.
Is the GHB1040 HACR rated for HVAC equipment?
Yes, all Eaton GHB circuit breakers from 15 to 100 amps are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Will the Eaton GHB1040 replace an older Westinghouse GHB breaker?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The Eaton GHB1040 is a direct replacement for legacy Westinghouse and Cutler-Hammer breakers with the exact same catalog number.
