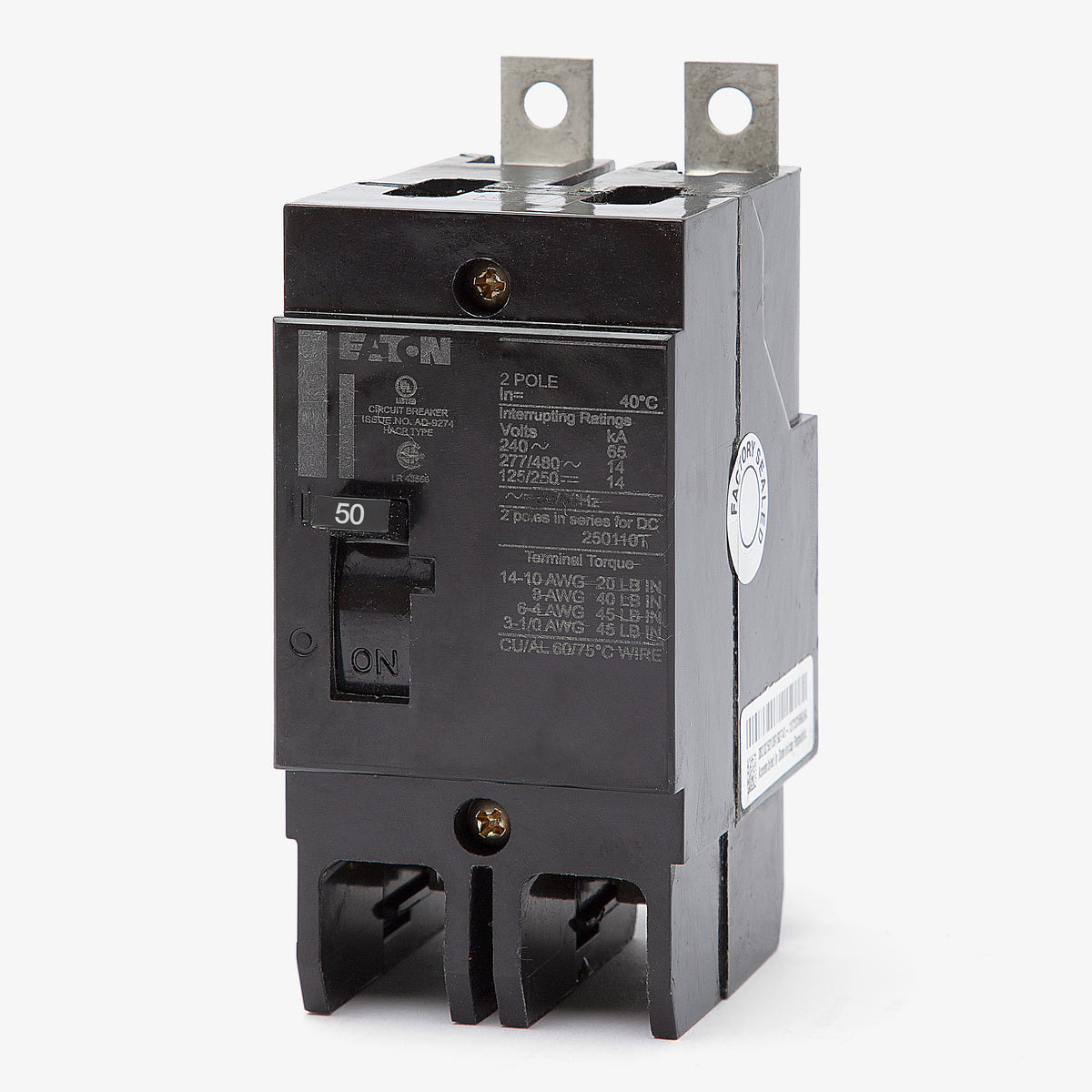

Eaton / Cutler-Hammer GHB2050 Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2050
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2050 - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer GHB2050 - 50A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial and commercial power systems, the GHB2050 functions as a 50-amp, two-pole molded case circuit breaker. It utilizes a fixed thermal-magnetic trip mechanism to safeguard circuits against overloads and short circuits. This Series C breaker mounts securely into Eaton Pow-R-Line panelboards and motor control centers via a bolt-on connection. With a 14 kAIC rating at 480Y/277V and HACR certification, it delivers reliable performance for demanding electrical applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhich panelboards are compatible with the GHB2050 circuit breaker?
The GHB2050 is designed for use in Eaton Pow-R-Line C panelboards, specifically the PRL1a, PRL2a, and PRL3a series. It is also compatible with legacy Westinghouse PRL2 panels, Series C switchboards, and motor control centers.
What are the terminal torque specifications for the GHB2050?
Torque requirements depend on the wire size being terminated. For the standard pressure lugs on the GHB2050, torque 10 AWG wire to 20 lb-in, 8 AWG to 40 lb-in, and 6 through 1/0 AWG to 45 lb-in. Always verify against the specific torque values printed on the breaker nameplate prior to installation.
How does the line side of the GHB2050 connect to the panelboard?

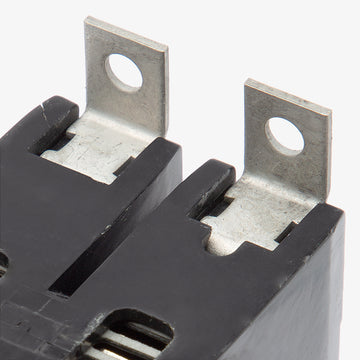

The GHB2050 is a bolt-on circuit breaker. The line side features an extended tang that bolts directly to the panel bus bar for a secure electrical connection, while the load side uses standard pressure lugs for wire termination.
Is the Eaton GHB2050 a direct replacement for legacy Westinghouse GHB breakers?
Yes. Eaton acquired both Cutler-Hammer and the legacy Westinghouse distribution equipment lines. The current Eaton GHB2050 is a direct, UL listed substitute for older Cutler-Hammer or Westinghouse breakers sharing the same GHB2050 catalog number.
Are the trip unit settings adjustable on the GHB2050?
No, the GHB2050 features a non-interchangeable trip unit with fixed thermal and fixed magnetic settings. The continuous ampere rating and the instantaneous short-circuit trip point cannot be field adjusted.
Is the GHB2050 approved for direct current (DC) installations?
Yes, in addition to its AC ratings, this thermal magnetic breaker is UL listed for DC applications. It carries a maximum voltage rating of 125/250VDC with a 14kAIC interrupting rating, making it suitable for select control and battery circuits.
Does the GHB2050 provide ground fault or equipment protection?
No, the GHB2050 is a standard thermal magnetic circuit breaker designed strictly for overload and short-circuit protection. It does not contain ground fault circuit interrupter (GFCI) or equipment protection device (EPD) circuitry. Eaton offers the GHBGFEP series for ground fault applications.
Can the GHB2050 be used on an ungrounded 480V Delta system?
No. The GHB2050 has a slash voltage rating of 480Y/277VAC. Per the National Electrical Code, slash-rated breakers are only approved for use on solidly grounded Wye systems where the nominal voltage to ground does not exceed the lower value. It cannot be safely installed on ungrounded or corner-grounded 480V Delta configurations.
