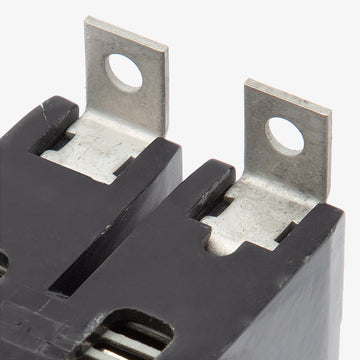

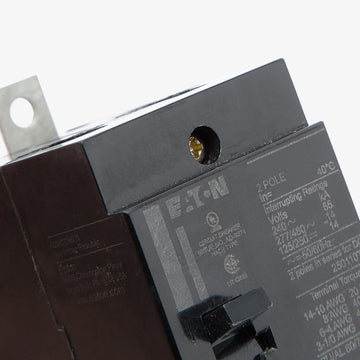

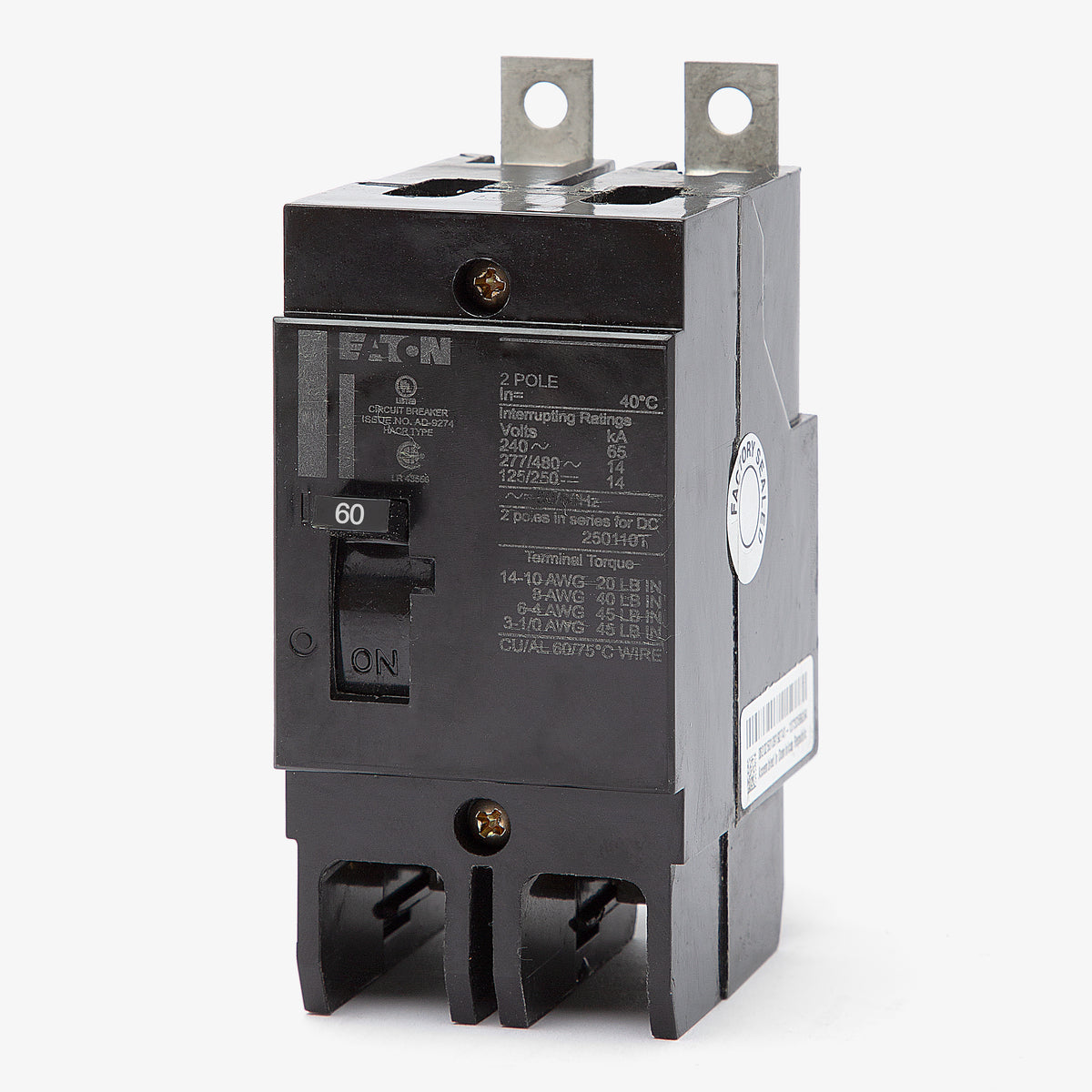

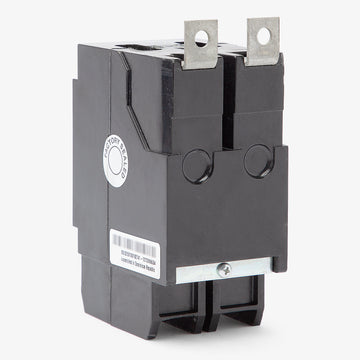

Eaton / Cutler-Hammer GHB2060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB2060
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB2060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB2060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB2060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2060 |
| Series | GHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB2060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2060-R |
| Series | GHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Built to handle demanding commercial and industrial loads, this 60A thermal-magnetic breaker offers reliable long-time and instantaneous fault protection. It integrates perfectly into Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards. With an interrupting capacity of 14kAIC at 480Y/277VAC and 65kAIC at 240VAC, the unit ensures code-compliant safety. The reverse-feed capable design includes load side lugs for streamlined wiring and setup.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB2060 |
| Series | GHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the GHB2060?
This breaker installs into Eaton Pow-R-Line C, Series C, and legacy Westinghouse PRL2 panelboards. It uses a standard bolt-on mounting configuration to secure directly to the panel bus.
Does the Eaton GHB2060 replace the Westinghouse GHB2060?
Yes, Eaton acquired the Westinghouse electrical distribution line. The current Eaton Cutler-Hammer GHB2060 is a direct replacement for legacy Westinghouse and older Cutler-Hammer breakers sharing the same catalog number.
What does the 480Y/277V rating indicate for the GHB2060?
This slash voltage rating means the breaker is certified exclusively for use on solidly grounded wye electrical systems. It is not suitable for 480V ungrounded or corner-grounded delta configurations.
Can the GHB2060 be reverse-fed in a panelboard?
Yes, Eaton G-Frame circuit breakers like the GHB2060 do not have line and load markings and are suitable for reverse-feed applications, such as generator back-feeding, when installed according to local electrical codes.
Is the GHB2060 suitable for HVAC equipment?
Yes, this breaker is HACR rated, certifying it for safe overcurrent protection with compatible heating, air conditioning, and refrigeration systems.
Does the GHB2060 include wire lugs?
Yes, the breaker comes with load side lugs factory installed. The pressure terminals accept 10 to 1/0 AWG copper or aluminum conductors. The line side bolts directly to the panelboard bus.
