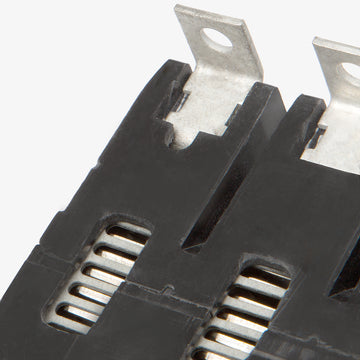

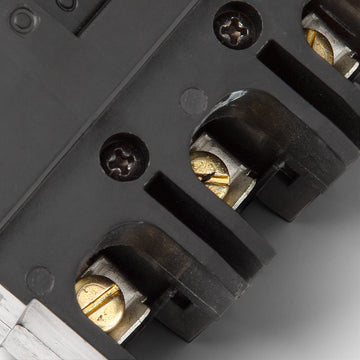

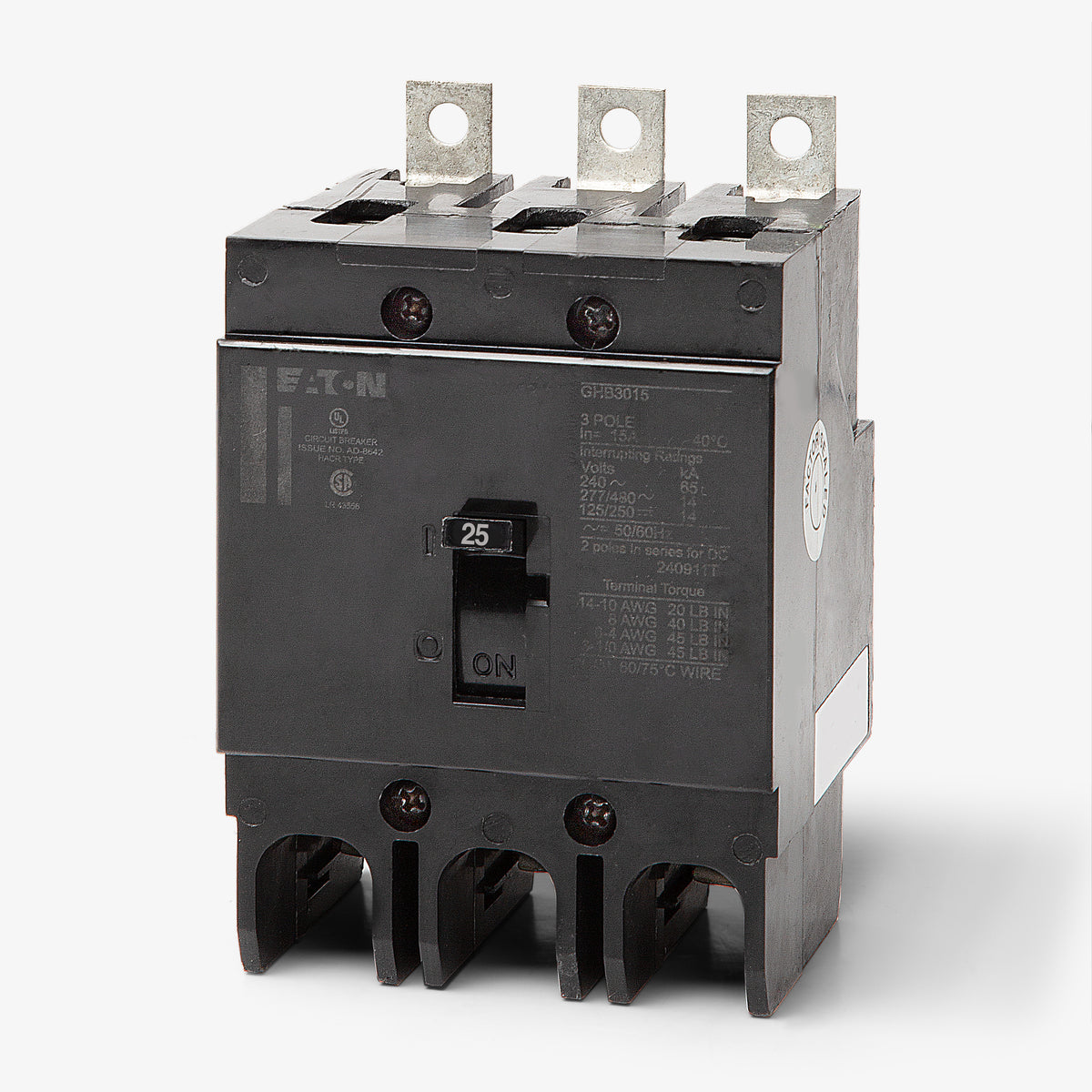

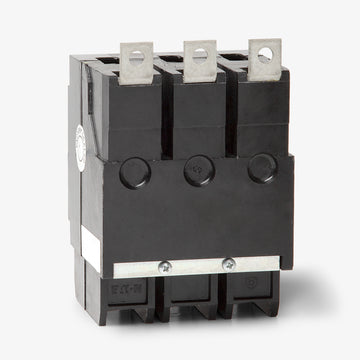

Eaton / Cutler-Hammer GHB3025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3025
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB3025 - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3025 |
| Series | GHB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB3025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3025-R |
| Series | GHB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3030S1
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Eaton GHB3025 is a 3-pole, 25A molded case circuit breaker from the Series C family. It features a fixed thermal-magnetic trip unit for dependable overload and short-circuit protection. This G-frame breaker mounts into Eaton Pow-R-Line panelboards, switchboards, and motor control centers. Rated for 14kAIC at 480Y/277VAC and 65kAIC at 240VAC, it is HACR rated and reverse feed capable for versatile installation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3025 |
| Series | GHB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip |
Product FAQs
8 answersCan I use the Eaton GHB3025 to replace an older Westinghouse GHB breaker?
Yes. Eaton acquired the Westinghouse electrical distribution business. The modern Eaton or Cutler-Hammer GHB series serves as a direct, exact-fit replacement for older Westinghouse breakers bearing the same GHB3025 catalog number.
What types of enclosures and panels accept this breaker?
The GHB3025 is designed for use in Eaton Series C panelboards, Pow-R-Line panelboards, switchboards, and compatible motor control centers. It bolts directly to the bus, ensuring a secure, vibration-resistant connection.
What does the "Star" or "480Y/277V" rating mean for installation?
The "Star" (or Wye) rating indicates this breaker is engineered for solidly grounded electrical systems supplying 480V line-to-line and 277V line-to-neutral. It is not rated for use on ungrounded 480V Delta systems.
Is the GHB3025 strictly for AC electrical systems?
No, it is also rated for direct current. While commonly used in alternating current setups, it provides a 14 kA interrupting capacity for 125/250 Vdc circuits, making it highly adaptable for specialized control or DC distribution.
Can I adjust the trip curve for the long-time or instantaneous functions?
No, the GHB3025 features a non-interchangeable, fixed thermal-magnetic trip unit. Both the 25-ampere overload protection and the short-circuit instantaneous trip points are set at the factory and cannot be field-adjusted.
What wire types are compatible with the terminal lugs?
The factory-installed pressure lugs accept both bare copper and aluminum (Cu/Al) conductors. They accommodate a wide range of wire sizes from 10 AWG up to 1/0 AWG, providing flexibility for different field wiring layouts.
Does the GHB3025 include ground fault or arc fault protection?
No, this is a standard thermal-magnetic molded case circuit breaker. It is engineered strictly for equipment and circuit overcurrent and short-circuit protection, without any built-in arc fault or ground fault life safety features.
Are G-frame breakers like the GHB3025 interchangeable with F-frame breakers?
No. G-frame breakers have distinct physical dimensions, mounting hardware, and bus connections compared to F-frame breakers. You must install the specific breaker frame designated by your panelboard label.
