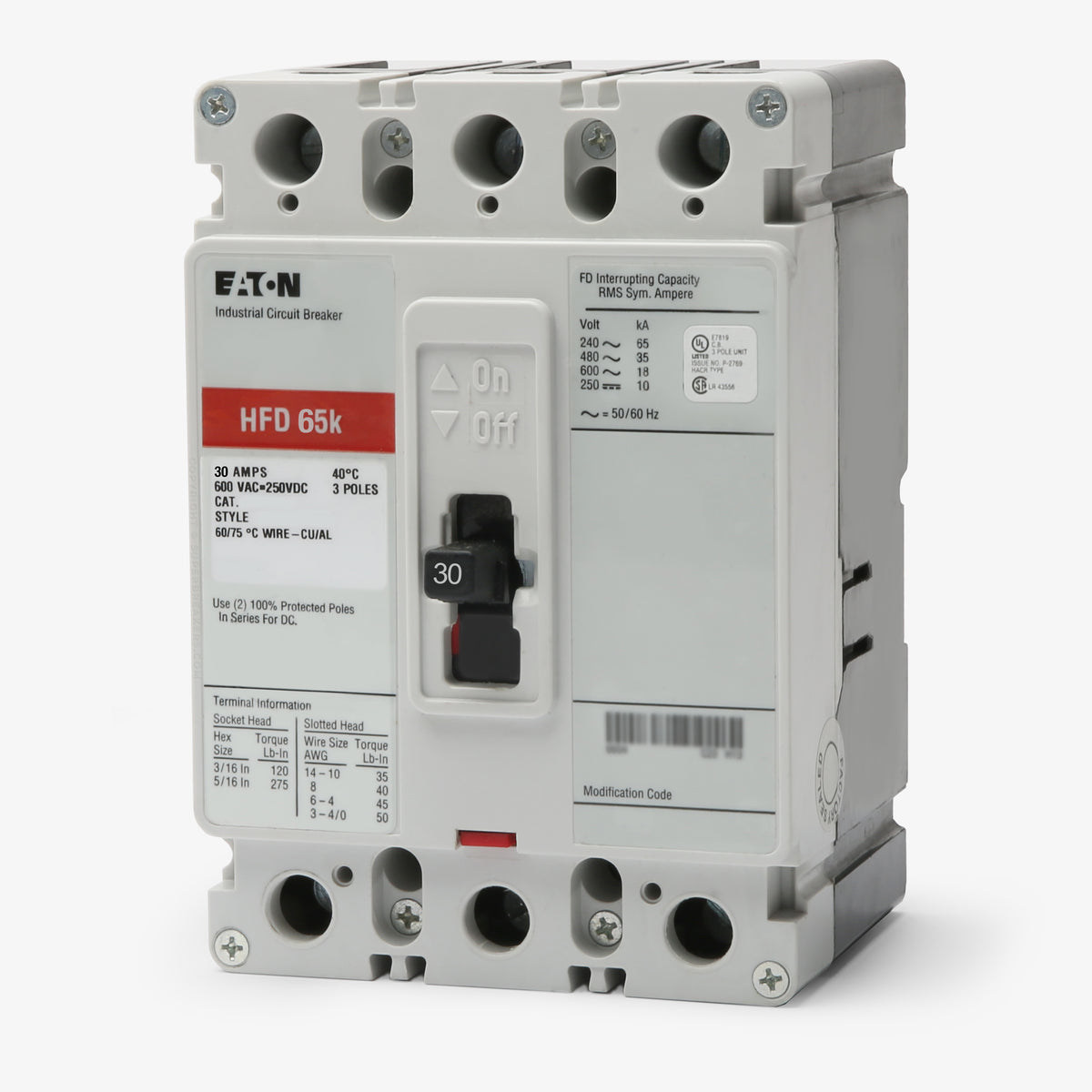

Eaton / Cutler-Hammer HFD3030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFD3030
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD3030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3030 |
| Series | HFD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Handle Lock |
|---|---|
| Accessories | Load Side Lugs (Included) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Quantity
Eaton / Cutler-Hammer HFD3030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3030-R |
| Series | HFD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Handle Lock |
|---|---|
| Accessories | Load Side Lugs (Included) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial systems, the Eaton HFD3030 offers dependable thermal-magnetic protection. This 3-pole, 30A Series C breaker handles heavy-duty electrical networks. The F-frame unit features a bolt-on design and includes load side lugs. It fits into Eaton Series C panelboards and is replaced by the Power Defense PDG23M0030TFFL via adapter. Rated 65 kAIC at 480VAC, it provides high interrupting capacity. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3030-R |
| Series | HFD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Handle Lock |
|---|---|
| Accessories | Load Side Lugs (Included) |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Product FAQs
6 answersCan I use the Eaton HFD3030 to replace an older Westinghouse breaker?
Yes. Eaton acquired the Westinghouse distribution equipment line. The current Series C HFD3030 is the direct drop-in replacement for obsolete Westinghouse and Cutler-Hammer breakers that share the same HFD3030 catalog number.
What panelboards and enclosures accept the HFD3030?
This F-frame circuit breaker is designed for bolt-on installation in Eaton Pow-R-Line C panelboards, motor control centers, and switchboards. Installation may require specific mounting hardware or filler plates depending on your existing enclosure type.
Can the HFD3030 be used in reverse feed configurations?
Yes. Standard Eaton Series C F-frame thermal magnetic circuit breakers lack directional line and load markings, making them fully suitable for back feed or reverse feed applications.
Is this 30 amp breaker rated for HVAC and lighting equipment?
Yes. The HFD3030 carries an HACR rating for safe operation with heating, air conditioning, and refrigeration systems. In addition, 10 to 50 amp F-frame breakers are approved for switching high intensity discharge (HID) lighting circuits.
Why choose the HFD3030 over a standard FD3030 breaker?
The HFD prefix indicates a high interrupting capacity model within the F-frame family. It delivers a 65kAIC rating at 480VAC compared to the standard 35kAIC of the base FD series, providing essential protection for facilities with higher available fault currents.
Are the trip settings adjustable on the HFD3030?
No. This breaker comes equipped with a non-interchangeable trip unit featuring fixed thermal and fixed magnetic trip points. If your application requires adjustable short delay or ground fault functions, you must upgrade to a Series C breaker equipped with an electronic trip unit.
