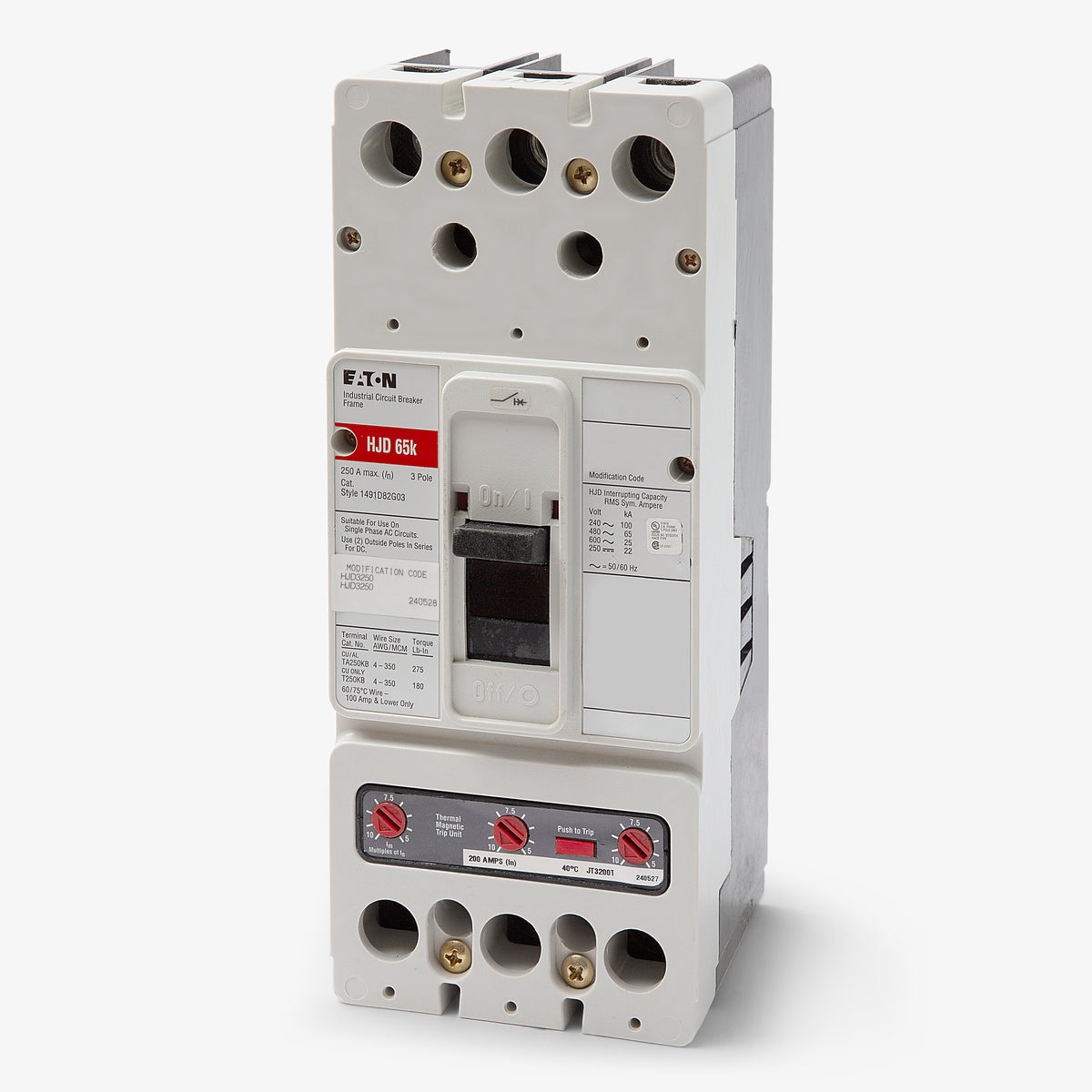

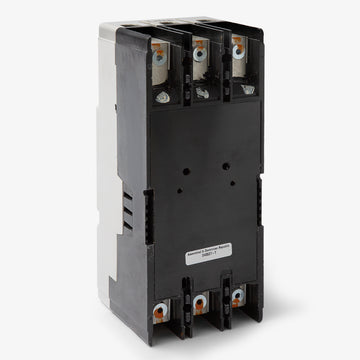

Eaton / Cutler-Hammer HJD3250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HJD3250
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HJD3250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HJD3250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HJD3250 - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3250 |
| Series | HJD |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Legacy Westinghouse Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, Interchangeable Trip Unit |
Quantity
Eaton / Cutler-Hammer HJD3250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3250-R |
| Series | HJD |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Legacy Westinghouse Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, Interchangeable Trip Unit |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty industrial applications, this 250A J-Frame MCCB provides robust power distribution. It is designed for unit mounting into Eaton panelboards, switchboards, and motor control centers, while also serving as a drop-in replacement for legacy Westinghouse systems. Rated for 65kAIC at 480VAC, the breaker features thermal-magnetic LI protection, reverse feed capability, and an interchangeable trip unit. Includes standard line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3250 |
| Series | HJD |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Legacy Westinghouse Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
6 answersWhat is the difference between an Eaton JD3250 and an HJD3250?
The H in HJD3250 designates a High Interrupting Capacity. While both breakers share the exact same physical J-Frame dimensions and bolt patterns, the HJD3250 contains upgraded internal components to safely clear higher short-circuit fault currents, offering 65kAIC at 480VAC compared to the lower standard JD rating.
Will this Eaton breaker replace an older Westinghouse HJD3250?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The current production HJD3250 is a direct, drop-in replacement for legacy Westinghouse and Cutler-Hammer Series C J-Frame breakers, including the HJD3250F.
How does the thermal-magnetic trip unit operate on this breaker?

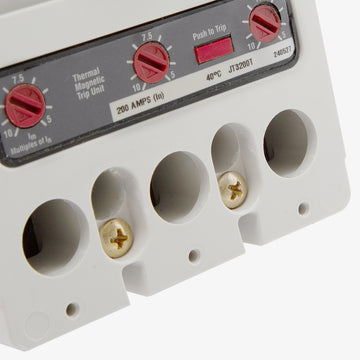

The HJD3250 features a fixed thermal overload and an adjustable magnetic instantaneous trip. The installer can adjust the magnetic dial to fine-tune short-circuit protection, typically between 5 and 10 times the 250A continuous rating, helping coordinate with other devices in your power system.
What type of wire terminals are included on the HJD3250?

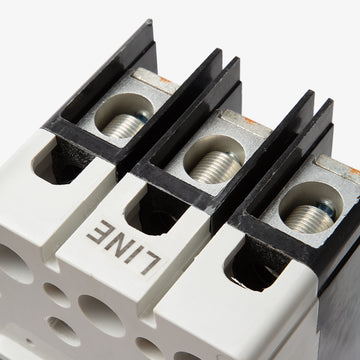

This breaker includes standard factory-installed line and load lugs, specifically catalog number TA250KB. These mechanical lugs are rated for either copper or aluminum conductors sized from 4 AWG up to 350 kcmil.
Can I install the HJD3250 in a reverse feed configuration?
Yes. Eaton Series C J-Frame circuit breakers with standard thermal-magnetic trip units are approved for reverse feed applications. They are also HACR rated for use with heating, air conditioning, and refrigeration equipment.
Is the HJD3250 compatible with older motor control centers?
Yes, this breaker is designed for unit mounting in compatible Eaton, Cutler-Hammer, and legacy Westinghouse motor control centers, switchboards, and Series C panelboards.
