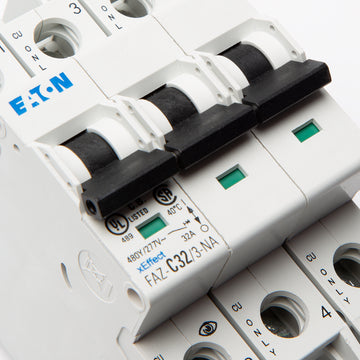

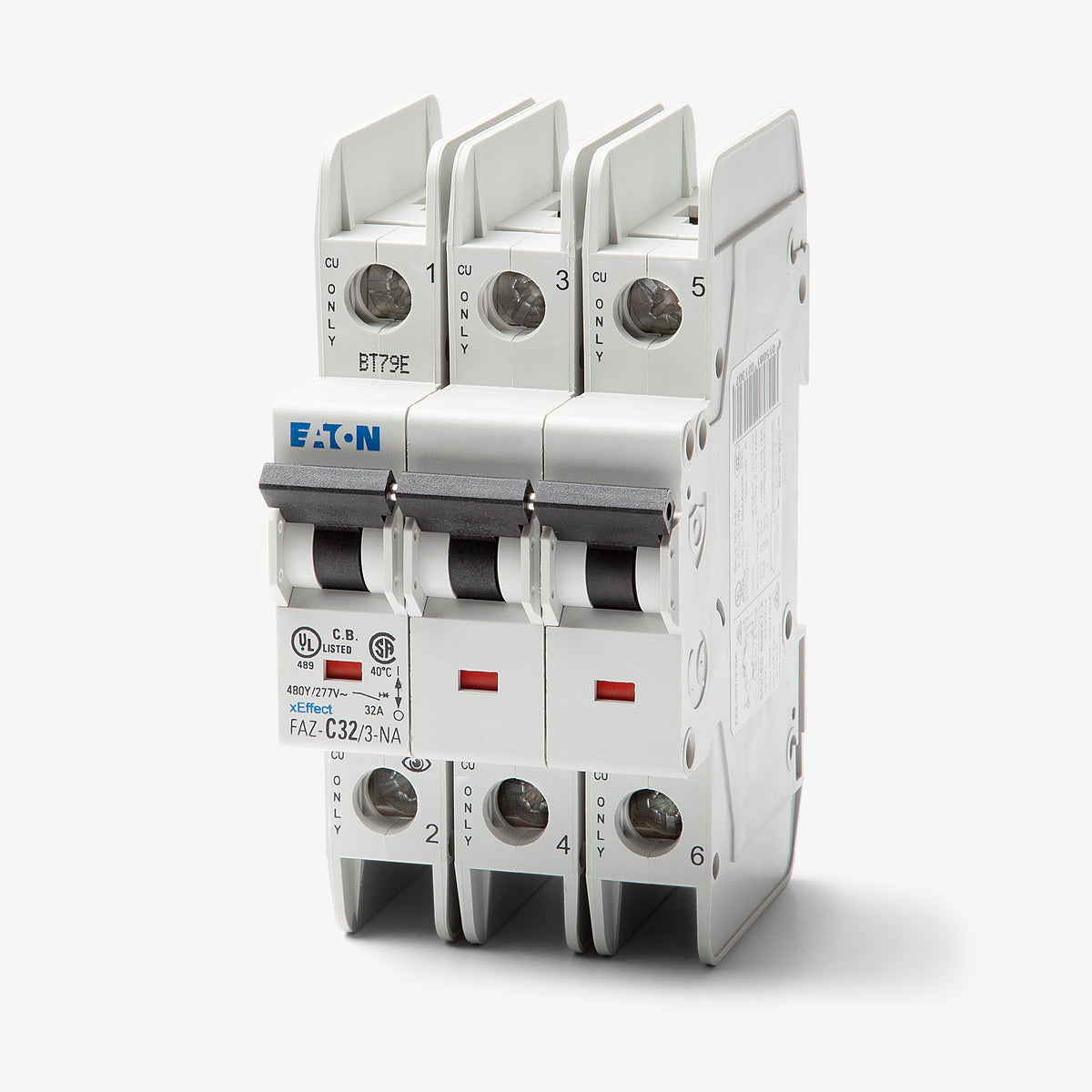

Eaton / Cutler-Hammer FAZ-C32/3-NA Miniature Circuit Breaker

The C-curve characteristic means the magnetic trip point is set between 5 and 10 times the rated current. This makes it ideal for applications with medium inrush currents, such as small transformers, lighting, and control circuits, preventing nuisance tripping during startup.

Yes, it is a UL 489 listed miniature circuit breaker. This certification allows it to be used as a primary branch circuit overcurrent protective device, unlike UL 1077 devices which are only rated for supplementary protection.

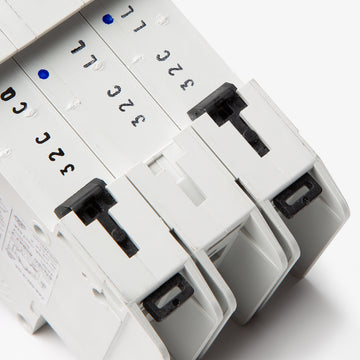

It is designed to snap directly onto a standard 35mm DIN rail, allowing for quick installation and replacement inside industrial control panels and machinery enclosures.

Yes, it features a current-limiting design that interrupts fault currents within one half cycle. This rapid response reduces the peak let-through energy, providing superior protection for sensitive downstream electrical components.

Yes, it is dual-rated for AC and DC applications. It can safely interrupt up to 10kA at 96VDC, allowing it to protect DC power supplies and industrial automation equipment.

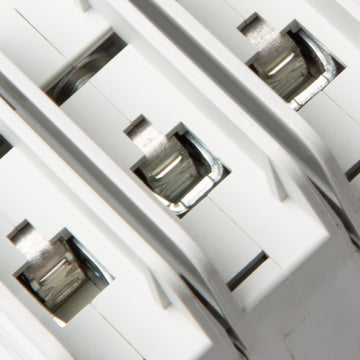

The box lug terminals accommodate 18 to 6 AWG when using a single conductor. If you are landing two wires in the same terminal, the capacity is limited to 18 to 10 AWG.

Yes, it utilizes a trip-free design. This safety feature ensures the breaker will still trip during an overcurrent or short circuit event even if the operating handle is physically held in the ON position.
