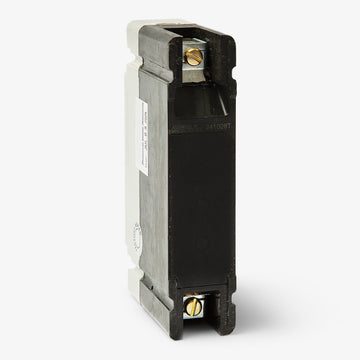

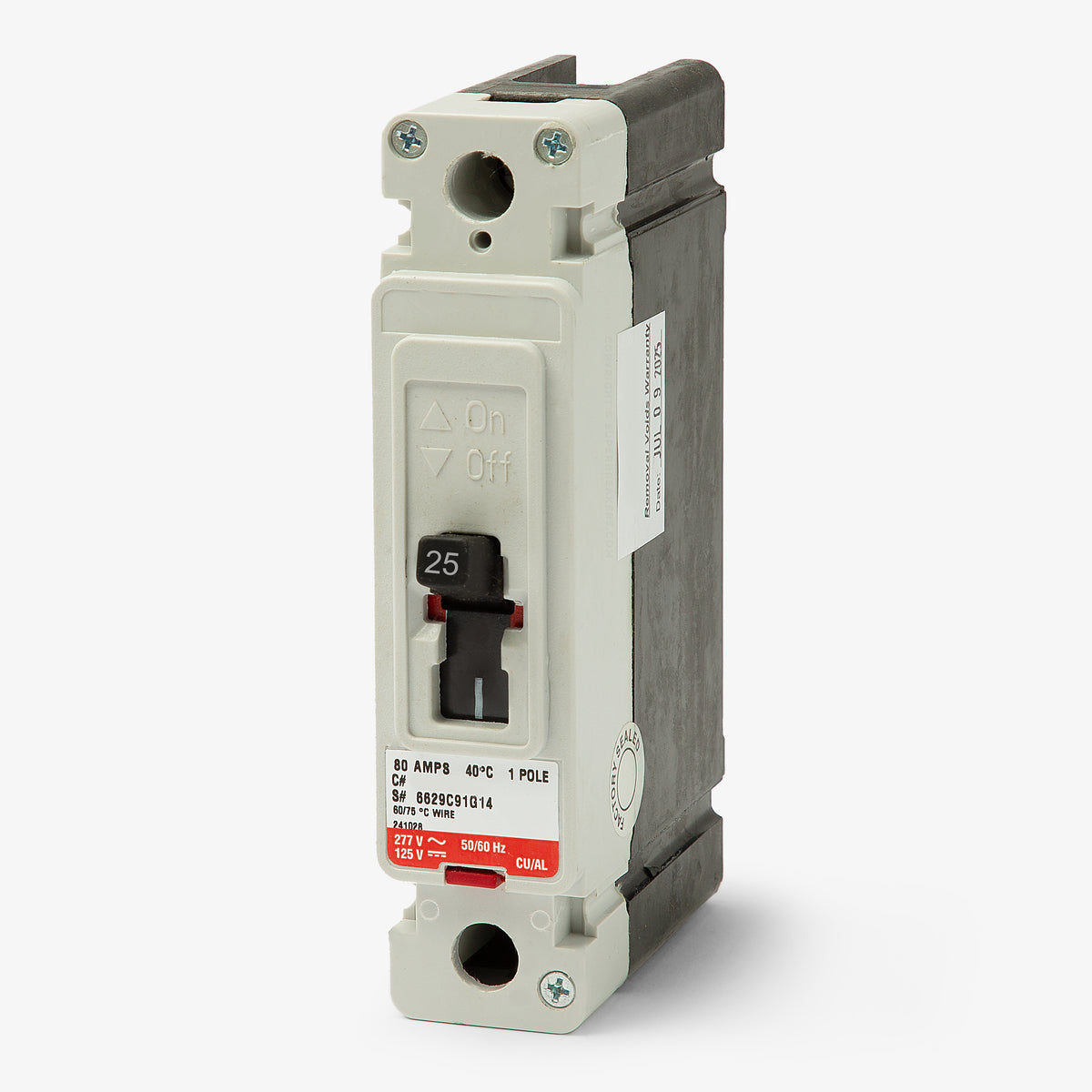

Eaton / Cutler-Hammer FD1025 Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
FD1025
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FD1025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FD1025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
70A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, this single-pole 25A breaker integrates into industrial motor control centers. The thermal-magnetic mechanism provides fixed LI trip responses. Featuring a bolt-on mounting style, it fastens securely into Eaton Series C panelboards. Facilities upgrading infrastructure can transition to the newer PDG21G0025TFFJ model. Capable of clearing 35kA faults at 277VAC, it maintains system stability. It carries an HACR rating and supports reverse feed.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | FD |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 277VAC, 10kA @ 125VDC, 18kA @ 347VAC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the FD1025 circuit breaker?
This F-Frame Series C breaker is designed for bolt-on installation in Eaton Pow-R-Line C panelboards, switchboards, and motor control centers. It is also compatible with many vintage Westinghouse and Cutler-Hammer enclosures that accept F-Frame breakers.
Can the FD1025 replace older Westinghouse F-Frame breakers?
Yes, Eaton Series C F-Frame breakers like the FD1025 are direct replacements for obsolete Westinghouse, Cutler-Hammer, and Challenger F-Frame breakers, including the FDB and FD series. They share the same physical footprint, though you must verify that the interrupting ratings meet your current system requirements.

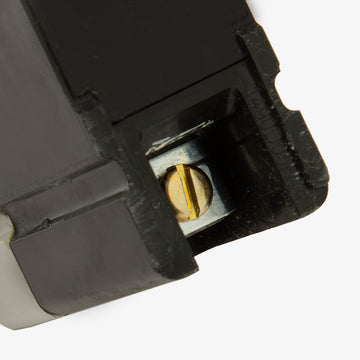

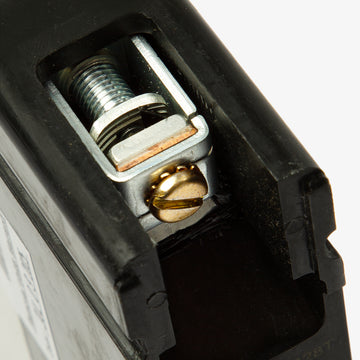

Are the load-side lugs included with the FD1025?
Yes, the FD1025 comes standard with load-side lugs installed. The standard terminal kit (catalog number 3T100FB) accepts 14 AWG to 1/0 AWG copper or aluminum wire.
Is the FD1025 rated for direct current (DC) applications?
Yes, the thermal-magnetic trip unit is suitable for DC systems up to 125VDC with a 10kAIC interrupting rating. When used in DC applications, the magnetic trip threshold is typically higher than in AC applications.
Does the FD1025 provide GFCI or AFCI protection?
No, the FD1025 is a standard thermal-magnetic molded case circuit breaker providing long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not include ground fault or arc fault circuitry.
Does the FD1025 support reverse feeding?
Yes, standard Eaton Series C F-Frame breakers like the FD1025 do not have line and load restrictions and can be reverse fed if required by your application.
