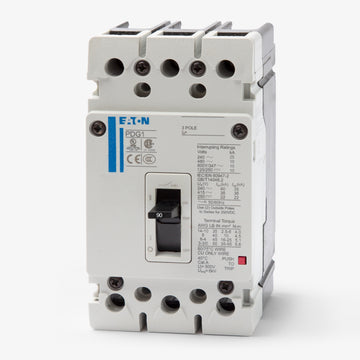

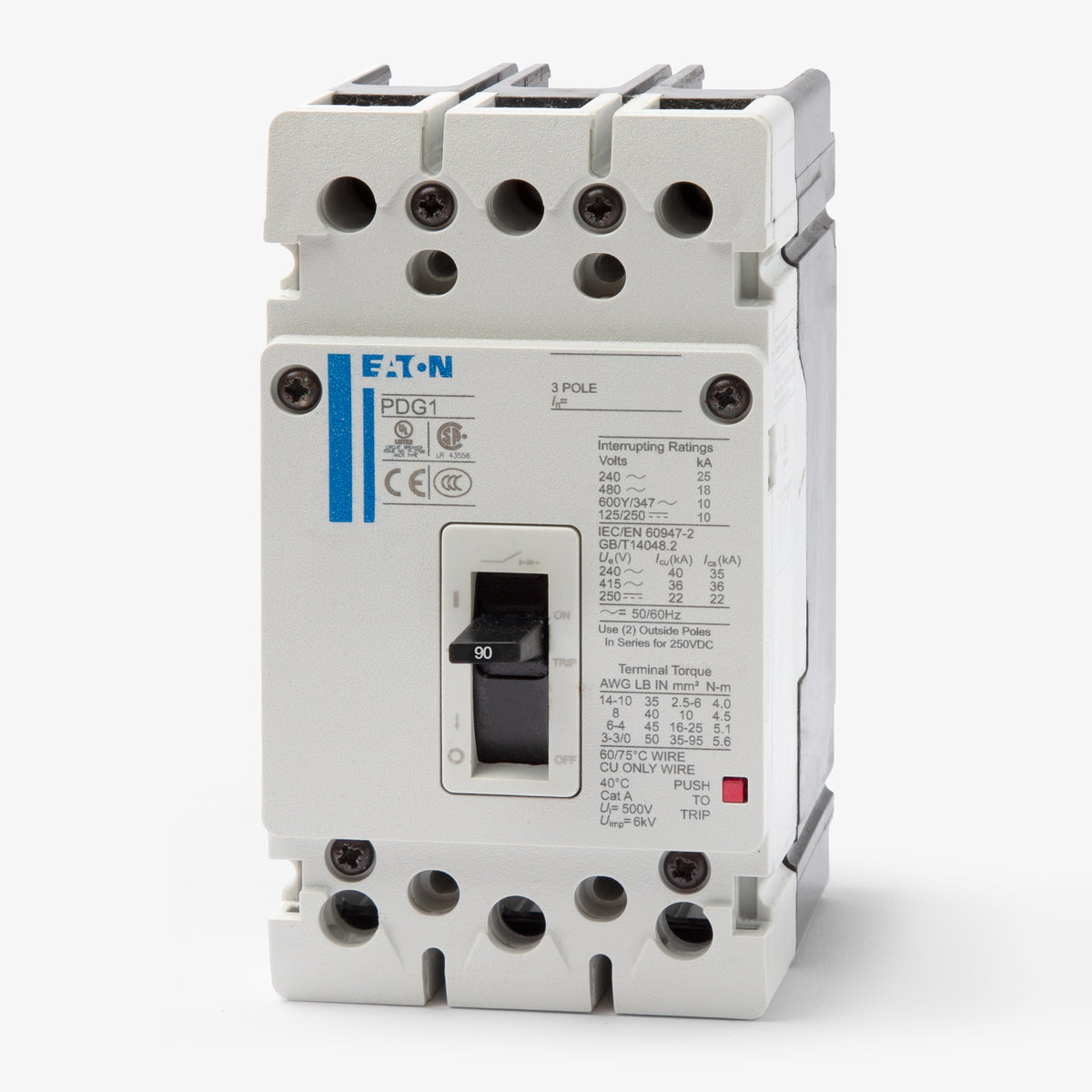

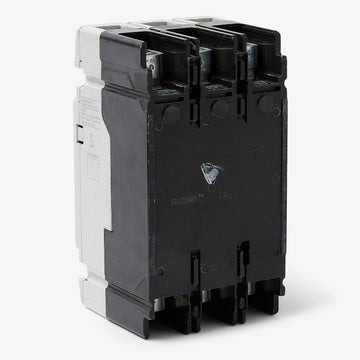

Eaton / Cutler-Hammer PDG13C0090TFFJ Molded Case Circuit Breaker
- 90A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0090TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0090TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0090TFFJ - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13C0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Description
The Eaton PDG13C0090TFFJ is a 3-pole, 90A molded case circuit breaker from the globally rated Power Defense series. It is engineered for robust commercial and industrial power distribution. This Frame 1 breaker installs into Eaton Pow-R-Line panelboards and serves as an exact replacement for the legacy EGB3090FFG. Equipped with a fixed thermal-magnetic (LI) trip unit, it delivers an 18 kAIC rating at 480VAC. The current-limiting design is HACR rated for HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13C0090TFFJ |
| Series | PDG1 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Globally Rated, RoHS Compliant, HACR Rated |
Product FAQs
7 answersWhat legacy Eaton circuit breaker does the PDG13C0090TFFJ replace?
This Power Defense Frame 1 breaker serves as the direct replacement for the legacy Series G EGB3090FFG. Both models share the same 90A, 3-pole configuration and 18kAIC at 480VAC interrupting rating.
Which Eaton panelboards accept the PDG13C0090TFFJ breaker?
This Frame 1 molded case circuit breaker is designed for installation in Eaton Power Defense panelboards and legacy Eaton Pow-R-Line panelboards.
Are the thermal and magnetic trip settings adjustable on this model?
No. The PDG13C0090TFFJ is equipped with a fixed thermal and fixed magnetic (LI) trip unit, meaning the long-time and instantaneous trip thresholds cannot be modified in the field.
What wire gauge range is supported by the standard terminals?

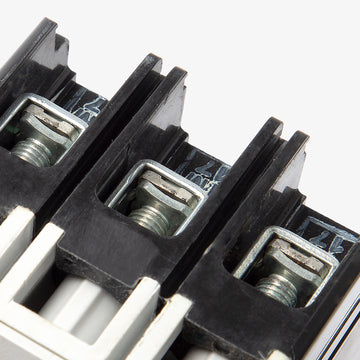

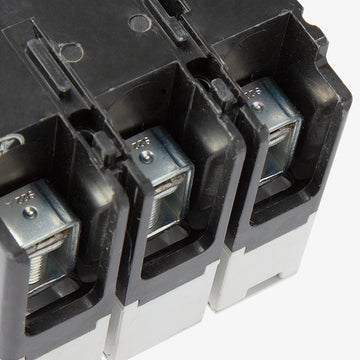

The factory-installed box lugs on this breaker accommodate conductors ranging from 14 AWG to 3/0 AWG.
How does the interrupting rating change when applied to a 240VAC system?
While the breaker is designated by its 18kAIC rating at 480VAC, its interrupting capacity increases to 25kAIC when installed in a 240VAC application.
Is the PDG13C0090TFFJ suitable for DC power systems?
Yes, this thermal-magnetic breaker is rated for use in DC applications up to 250VDC, where it provides a 10kAIC interrupting rating.
Does this breaker provide advanced diagnostic or metering capabilities?
No. Because it utilizes a traditional thermal-magnetic trip unit, it does not offer the metering, breaker health diagnostics, or communication features found in Power Defense models equipped with PXR electronic trip units.
