Eaton / Cutler-Hammer PDG13M0090TFFJ Molded Case Circuit Breaker
- 90A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0090TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0090TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

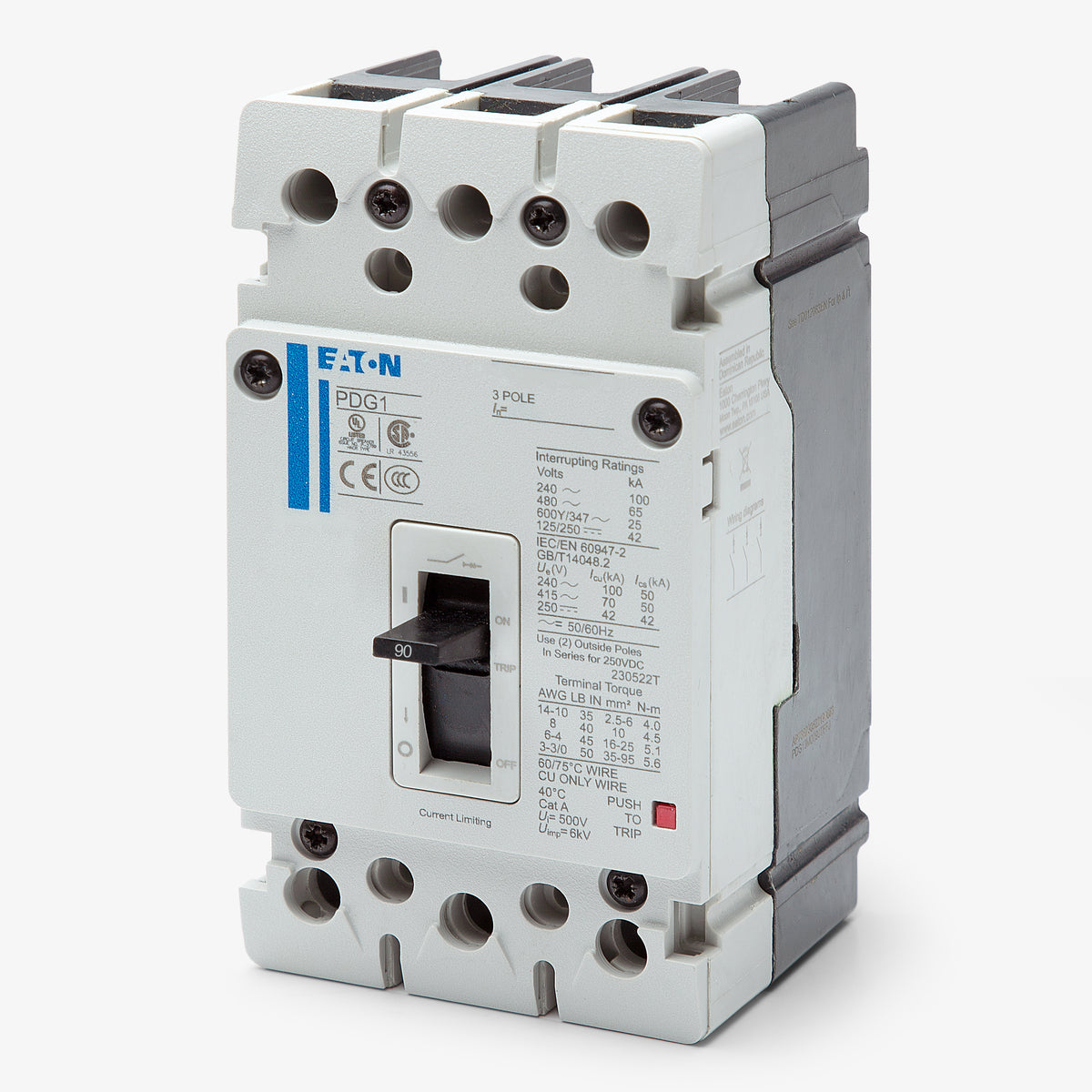

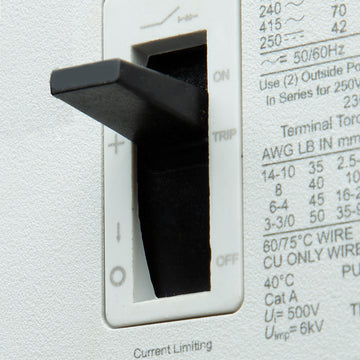

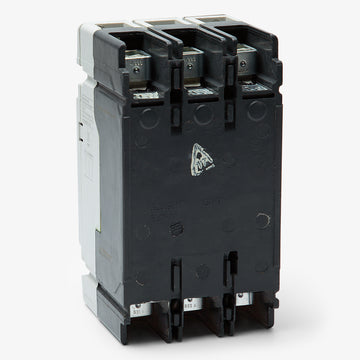

Eaton / Cutler-Hammer PDG13M0090TFFJ - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial environments, the Eaton PDG13M0090TFFJ is a 3-pole, 90A molded case circuit breaker belonging to the advanced Power Defense Frame 1 family. Designed to mount into Pow-R-Line panelboards and motor control centers, this breaker is an exact drop-in replacement for the discontinued Series G EGH3090FFG. Equipped with a fixed thermal-magnetic trip unit, it provides precise long-time and instantaneous protection. The breaker features a 65kA interrupt capacity at 480VAC.Specifications

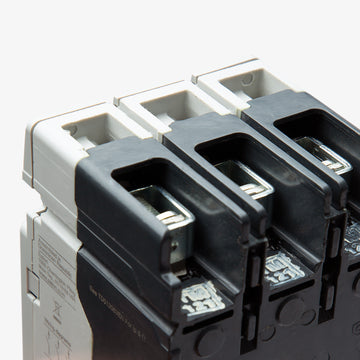

| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant, Globally Rated |
Product FAQs
5 answersWhat does the catalog number PDG13M0090TFFJ signify?
In the Eaton Power Defense nomenclature, "PDG1" stands for Power Defense Global Frame 1. The "3" indicates 3 poles, "M" denotes a 65kAIC rating at 480VAC, "0090" is for 90 amps, "TFF" specifies a fixed thermal and fixed magnetic trip unit, and "J" indicates standard line and load box lug terminals.
Can the PDG13M0090TFFJ be mounted on a DIN rail?
Yes, while it comes standard for panel mounting, this Frame 1 breaker can be DIN rail mounted using the Eaton PDG1XDIN34P adapter.
Is the PDG13M0090TFFJ suitable for reverse feed applications?
Yes, Eaton Power Defense Frame 1 molded case circuit breakers can be reverse fed. Only the motor circuit protector (MCP) variants in this frame size are restricted from reverse feeding.
Can the trip curve be adjusted in the field on the PDG13M0090TFFJ?
No, this breaker is equipped with a fixed thermal and fixed magnetic trip unit (indicated by "TFF" in the catalog number). Neither the long-time nor the instantaneous trip settings can be modified.
Does this Power Defense Frame 1 breaker include equipment ground fault protection?
No, the PDG13M0090TFFJ features a standard LI (Long-Time, Instantaneous) trip unit. It does not provide ground fault (LSIG) or short-time (LSI) protection capabilities.
