Eaton / Cutler-Hammer PDG13F0090TFFJ Molded Case Circuit Breaker
- 90A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13F0090TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13F0090TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

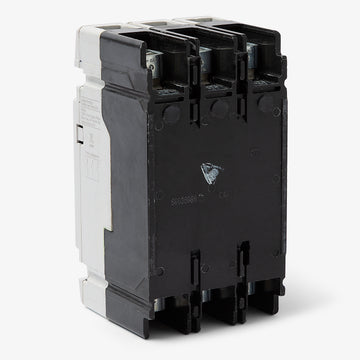

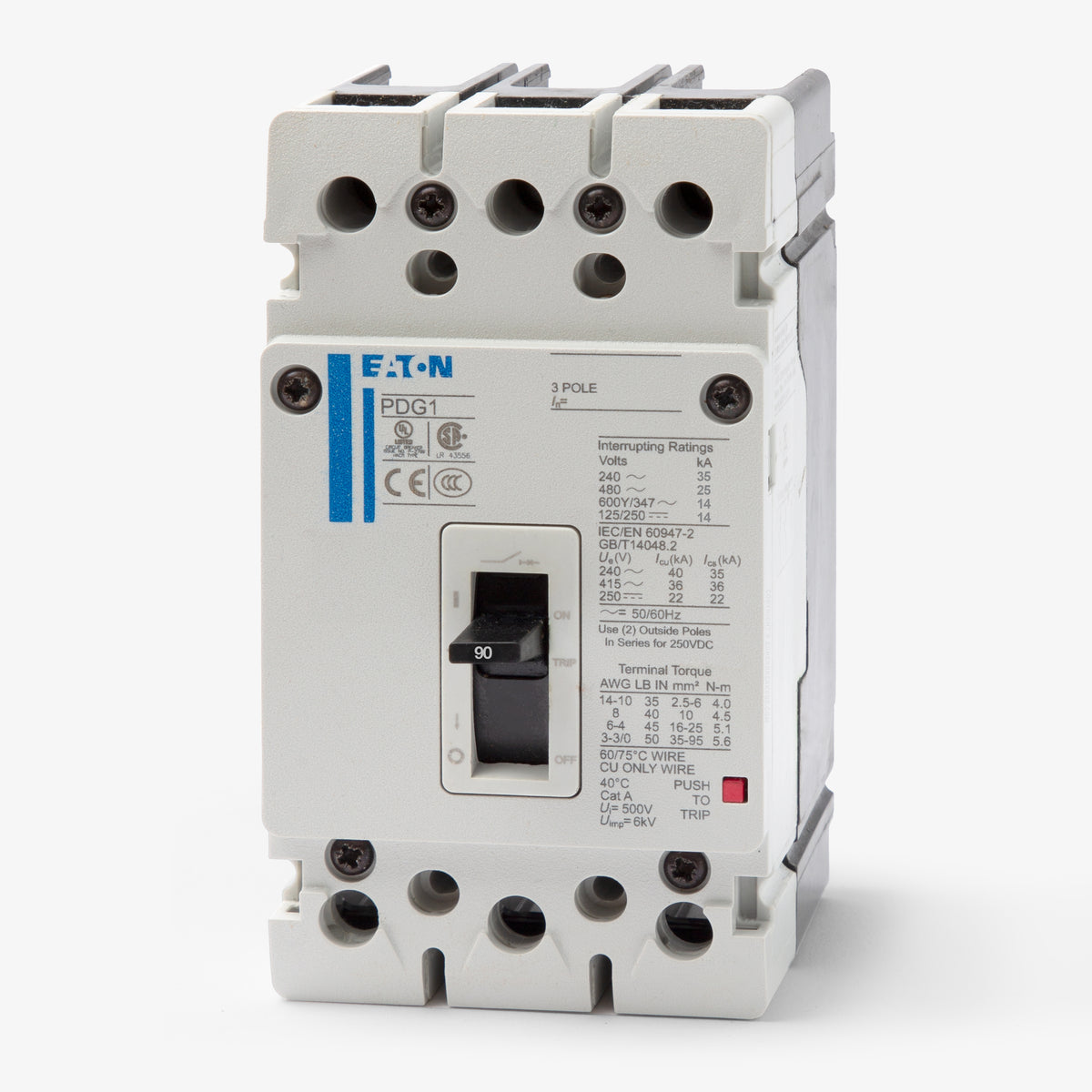

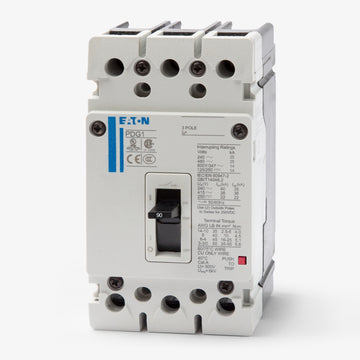

Eaton / Cutler-Hammer PDG13F0090TFFJ - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the globally rated Power Defense series, this 90-amp Frame 1 breaker delivers reliable fixed thermal and magnetic (LI) protection for commercial and industrial distribution systems. It installs into Eaton Pow-R-Line panelboards, switchboards, and dedicated enclosures as a modern upgrade, replacing legacy EGE3090FFG units. With a 35kAIC rating at 240V and current-limiting capabilities, it ensures robust fault clearing while maintaining RoHS compliance and HACR certification.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

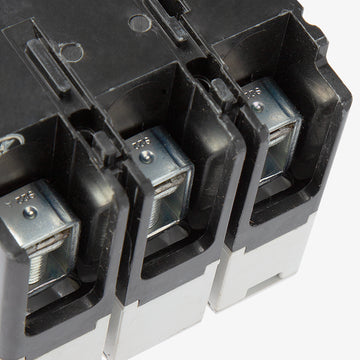

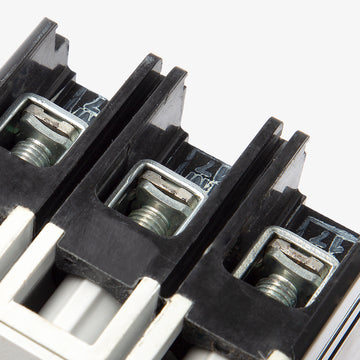

| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs
7 answersWhat is the direct replacement for the legacy Eaton EGE3090FFG?
The Eaton PDG13F0090TFFJ is the direct replacement for the discontinued Series G EGE3090FFG. It maintains the same 90A rating, 3-pole footprint, and 25kAIC at 480VAC interrupting capacity while upgrading your system to the modern Power Defense Frame 1 platform.
Will the PDG13F0090TFFJ fit in my existing Eaton panelboard?
Yes, this Power Defense Frame 1 breaker is designed for use with Eaton Power Defense panelboards, switchboards, and enclosures. It is also backward compatible with legacy Cutler-Hammer Series G panelboards that accept EG-frame breakers.
Is the trip unit on the PDG13F0090TFFJ adjustable?
No, this model features a standard thermal-magnetic trip unit with fixed long-time (thermal) and fixed instantaneous (magnetic) protection. If you require adjustable settings or electronic trip functions, you will need to upgrade to a Power Defense breaker with a PXR trip unit.
Can the PDG13F0090TFFJ be used in DC applications?
Yes, this thermal-magnetic breaker is rated for use in DC systems up to 250VDC. When applying this breaker in ungrounded DC systems, specific pole-in-series wiring configurations are required per Eaton's installation guidelines.
Is the PDG13F0090TFFJ suitable for reverse feed applications?
Yes, this Power Defense Frame 1 breaker is suitable for reverse feed applications. It does not have restricted line and load markings, allowing power to be fed from either direction.
Can I field-install accessories like a shunt trip or auxiliary switch on this breaker?
Yes, Eaton Power Defense Frame 1 breakers support a variety of field-installable internal accessories, including shunt trips, undervoltage releases, and auxiliary switches. These install under the front cover without voiding the breaker's UL listing.
What safety standards does the PDG13F0090TFFJ meet?
As part of Eaton's globally rated Power Defense portfolio, this breaker meets UL 489, CSA C22.2 No. 5, and IEC 60947-2 standards, ensuring reliable overcurrent and short-circuit protection across North American and international applications.
