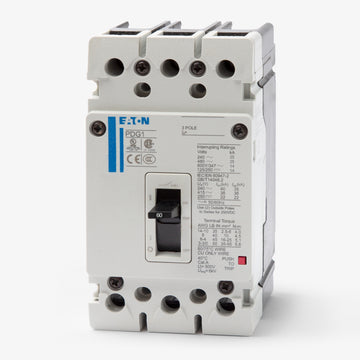

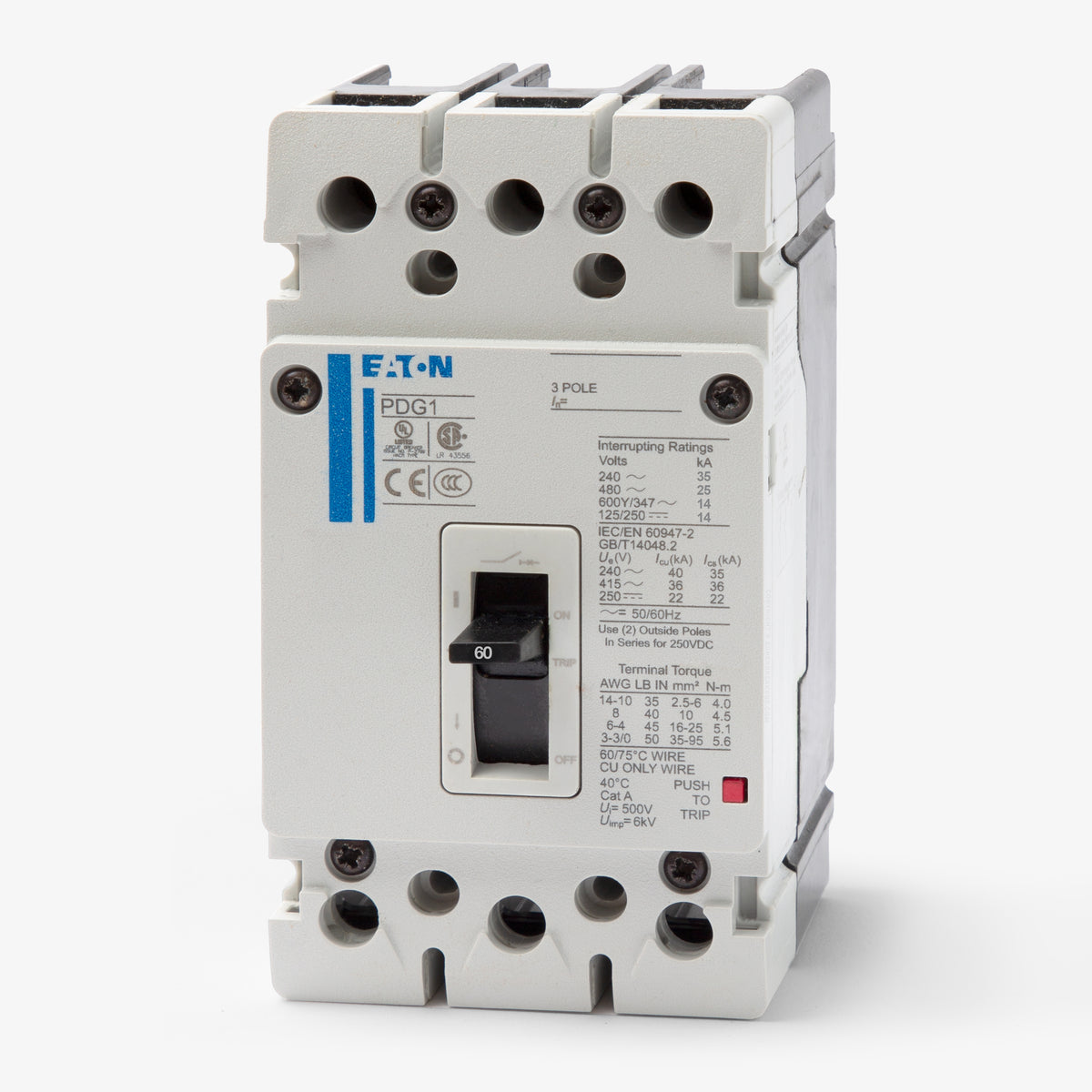

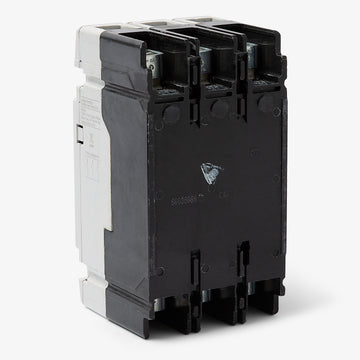

Eaton / Cutler-Hammer PDG13F0060TFFJ Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13F0060TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13F0060TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13F0060TFFJ - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Description
The PDG13F0060TFFJ is a 3-pole, 60A MCCB from Eaton's Power Defense series. Built for industrial applications, this Frame 1 device provides robust overcurrent protection. Designed for panel mount installations, it integrates into Power Defense panelboards and switchboards. The breaker includes box lugs for 14 to 3/0 AWG conductors. Rated at 25 kAIC at 480VAC, it features a fixed thermal and magnetic (LI) trip unit. This current-limiting MCCB is RoHS compliant and HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13F0060TFFJ |
| Series | PDG1 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Globally Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersIs the PDG13F0060TFFJ compatible with older Cutler-Hammer panels?
The PDG13F0060TFFJ is specifically designed for the modern Eaton Power Defense series of panelboards, switchboards, and enclosures. Consult your panel's labeling to verify compatibility with Power Defense Frame 1 (PDG1) breakers.
Do I need to purchase separate lugs for the PDG13F0060TFFJ?

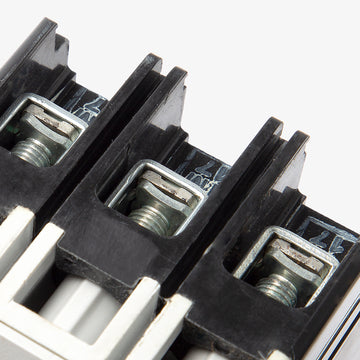

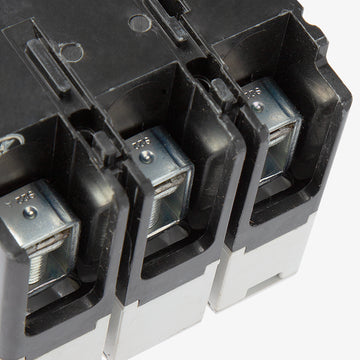

No, this breaker comes with factory-installed standard box lugs on both the line and load sides, which accept wire gauges from 14 AWG to 3/0 AWG.
Can the PDG13F0060TFFJ be mounted on a DIN rail?
Yes. While it is natively a panel mount breaker, it can be adapted for DIN rail installation using an Eaton Power Defense Frame 1 three-pole DIN rail adapter clip, such as part number PDG1XDIN34P.
What do the letters "TFF" signify in the PDG13F0060TFFJ catalog number?
In the Eaton Power Defense nomenclature, "TFF" indicates that the breaker is equipped with a thermal magnetic trip unit featuring fixed thermal and fixed magnetic protection settings.
Is the PDG13F0060TFFJ rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is fully rated for DC applications up to 250VDC, delivering a 22kA interrupting capacity for DC circuits.
How does the LI trip function operate on the PDG13F0060TFFJ?
The LI designation means this thermal magnetic breaker provides Long-Time (L) protection for sustained overloads using a bimetallic element, and Instantaneous (I) protection for immediate short-circuit clearing using an electromagnetic assembly. Both settings are fixed on this specific model.
