Eaton / Cutler-Hammer PDG13M0080TFFJ Molded Case Circuit Breaker
- 80A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0080TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0080TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

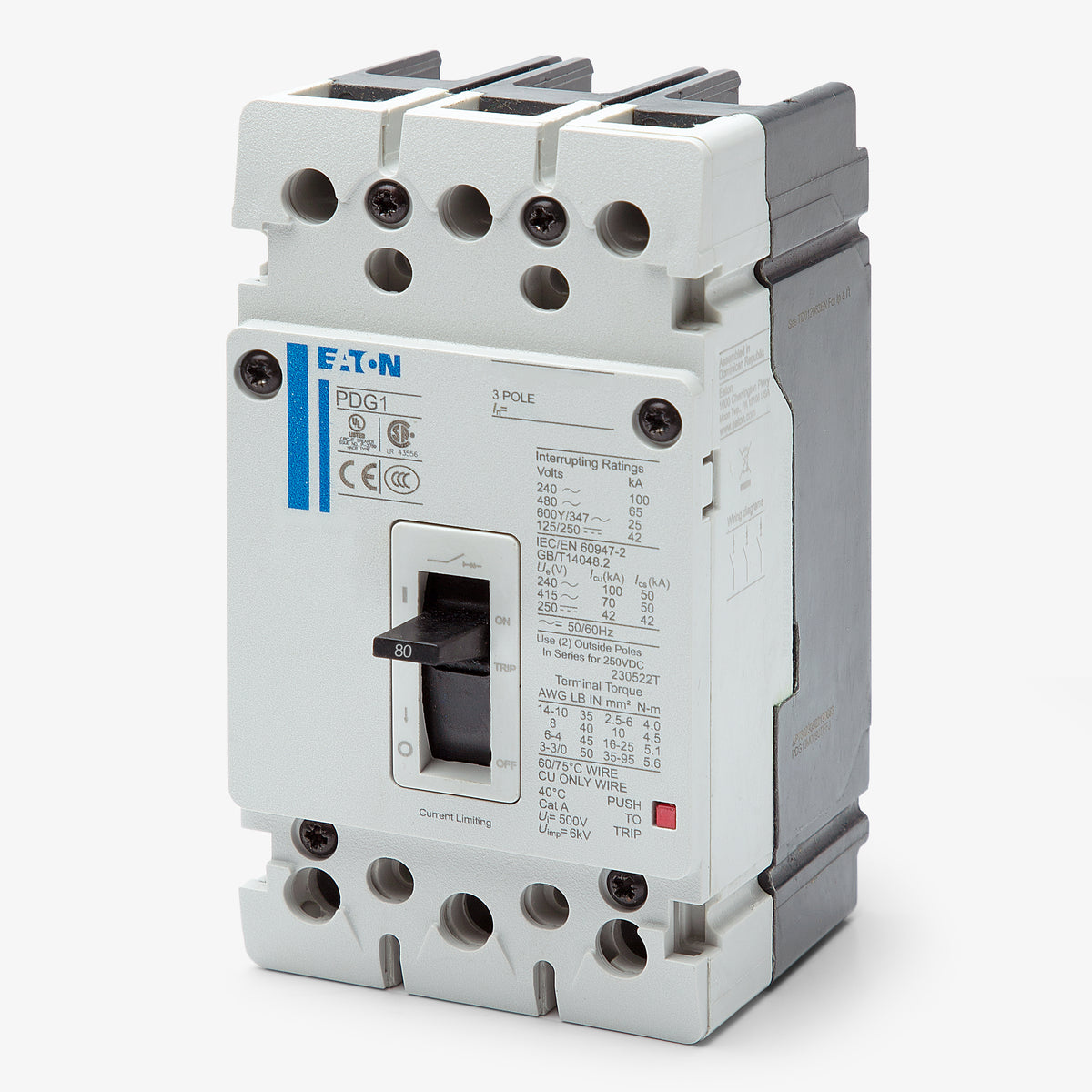

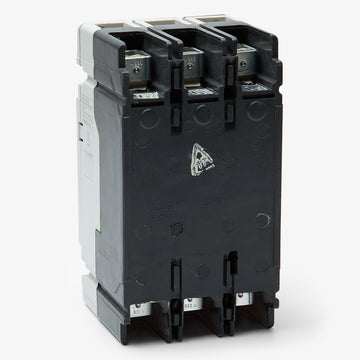

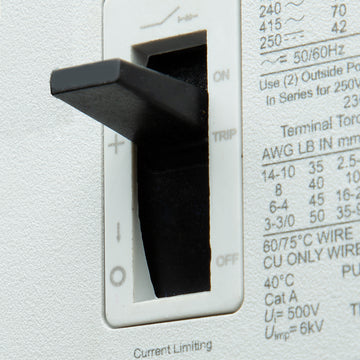

Eaton / Cutler-Hammer PDG13M0080TFFJ - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton PDG13M0080TFFJ is a 3-pole, 80A molded case circuit breaker from the Power Defense Frame 1 lineup. This unit installs into Eaton Power Defense panelboards, enclosures, and switchboards. It serves as an upgrade for legacy Series G EG-Frame breakers, utilizing standard line and load box lugs for secure wire termination. Delivering a 65kAIC interrupt rating at 480VAC, it utilizes fixed thermal and fixed magnetic trip functions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Globally Rated, Current Limiting, RoHS Compliant |
Product FAQs
7 answersWhat does the "TFFJ" suffix mean in the PDG13M0080TFFJ catalog number?
The "TFFJ" suffix indicates that this breaker is equipped with a fixed thermal and fixed magnetic trip unit, and it includes standard line and load side box lug terminals.
Can the Eaton PDG13M0080TFFJ breaker be reverse fed?
Yes, Eaton Power Defense Frame 1 molded case circuit breakers can be reverse fed. This allows flexibility for line and load connections depending on your panel or enclosure wiring.
What are the lug torque requirements for this 80A Power Defense breaker?

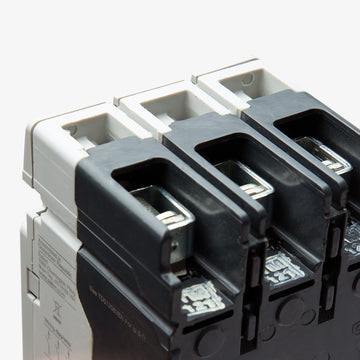

For the standard box lugs on this Frame 1 breaker, torque requirements depend on the wire size. Tighten 14 to 10 AWG wire to 35 lb-in, 8 AWG to 40 lb-in, 6 to 4 AWG to 45 lb-in, and 3 to 3/0 AWG to 50 lb-in.
Is this breaker suitable for direct current (DC) applications?
Yes, this thermal magnetic breaker is rated for up to 250VDC with an interrupting capacity of 42kAIC, making it suitable for specific DC control panels and distribution systems.
Which panelboards are compatible with the PDG13M0080TFFJ?
This Frame 1 breaker is designed for use with Eaton Power Defense panelboards, switchboards, and approved standalone enclosures.
What type of trip unit does this breaker use?
It features a thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions. Because both elements are fixed, the trip settings cannot be adjusted in the field.
Can I use aluminum wiring with the standard lugs on this breaker?
Yes, the factory-installed box lugs are dual-rated for both aluminum (Al) and copper (Cu) conductors. They accept wire sizes from 14 AWG up to 3/0 AWG.
