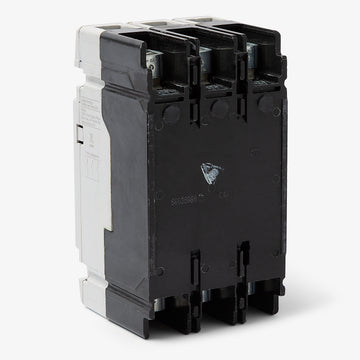

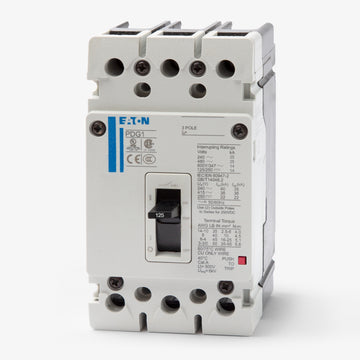

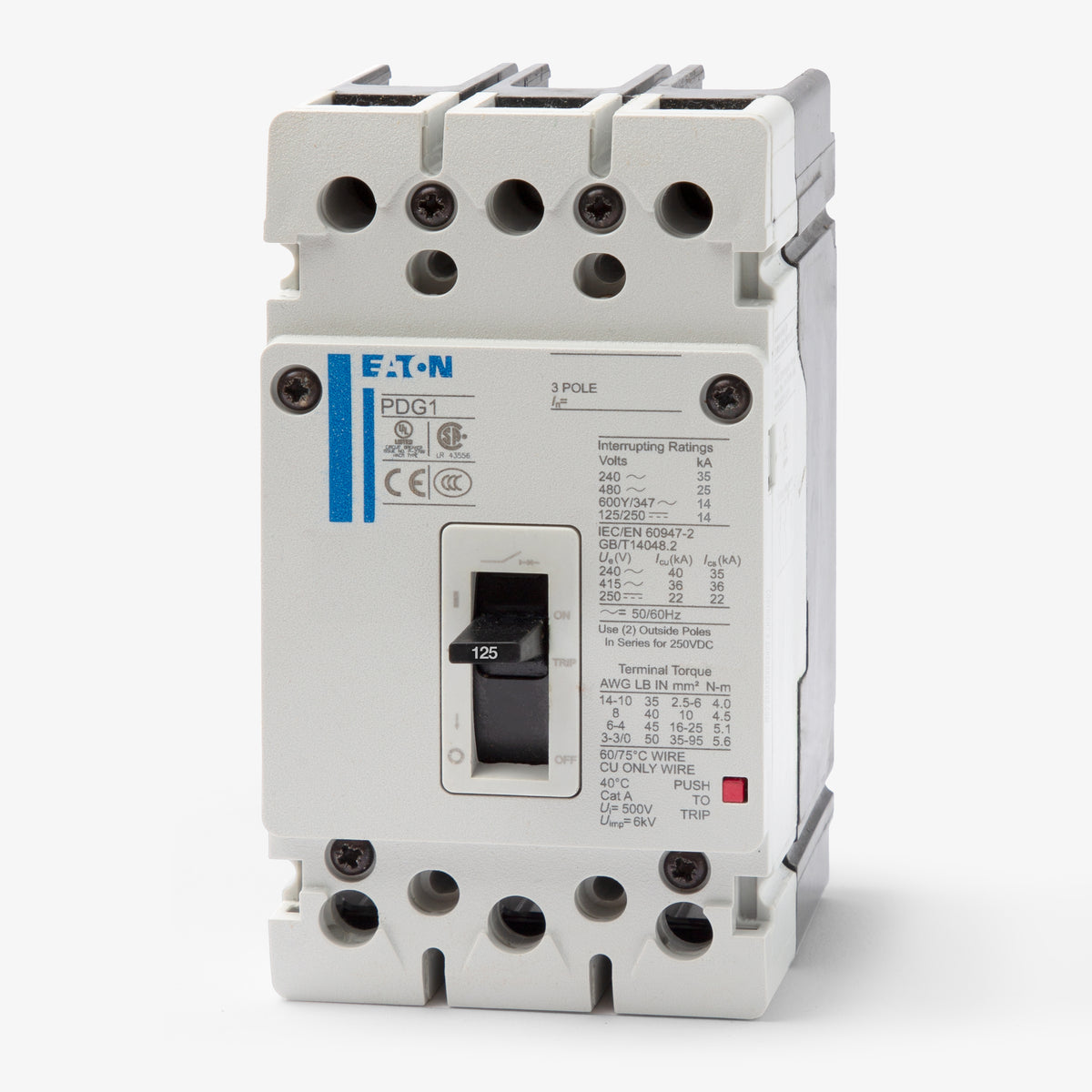

Eaton / Cutler-Hammer PDG13F0125TFFJ Molded Case Circuit Breaker
- 125A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13F0125TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13F0125TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13F0125TFFJ - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0125TFFJ
125A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Description
Serving as a high-capacity branch or feeder device, this 125-amp Power Defense MCCB utilizes fixed thermal and magnetic elements to safeguard commercial wiring. It fits perfectly into Eaton Pow-R-Line panelboards and standard enclosures, offering a seamless transition for systems previously using the EGE3125FFG catalog number. The globally rated breaker includes standard line and load terminals, delivering current-limiting performance and a 14kAIC rating at 600Y/347V for heavy-duty use.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Power Defense Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Multi-Wire Lug Kit, Rotary Handle |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, RoHS Compliant, Globally Rated |
Product FAQs
8 answersWhat panelboards and enclosures are compatible with the PDG13F0125TFFJ?
This Power Defense circuit breaker is designed for use with Eaton Pow-R-Line Panelboards and Power Defense Enclosures.

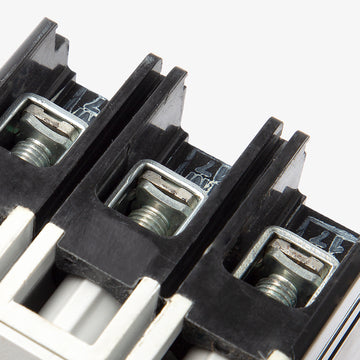

What wire sizes are accepted by the standard lugs on this breaker?
The standard line and load side box lugs accept wire gauges from 14 AWG up to 3/0 AWG, and are rated for both aluminum and copper conductors.
Can the PDG13F0125TFFJ be used in DC voltage applications?
Yes, this breaker is rated for up to 250VDC and provides an interrupting capacity of 22kA at that voltage.
Are the thermal and magnetic trip settings adjustable on this model?
No, this breaker features a fixed thermal and fixed magnetic trip unit, indicated by the TFF in the catalog number.
What does the TFFJ suffix indicate in the PDG13F0125TFFJ catalog number?
The TFF indicates a Thermal Magnetic trip unit with fixed thermal and fixed magnetic settings, while the J designates standard line and load side lug terminal connections.
How does the interrupting capacity of this breaker change at 600VAC compared to 480VAC?
The interrupting capacity is 25kA at 480VAC, and it drops to 14kA when applied at 600VAC or 347VAC.
What type of trip functions does the PDG13F0125TFFJ provide?
It provides Long-Time and Instantaneous (LI) trip functions for thermal and magnetic protection.
What frame group does the PDG13F0125TFFJ belong to?
It is a complete breaker belonging to the Eaton Power Defense Frame 1 (PDE Frames) family.
