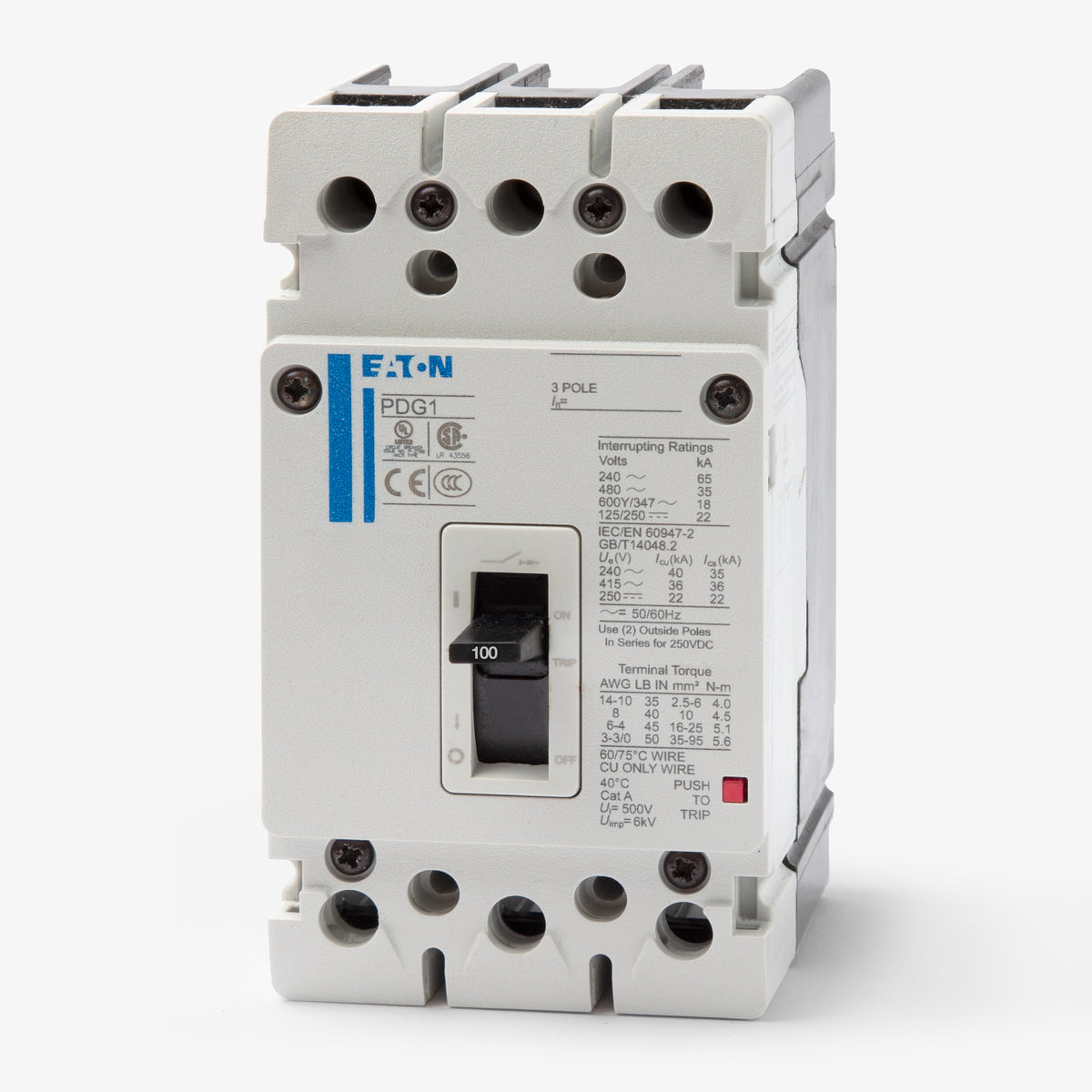

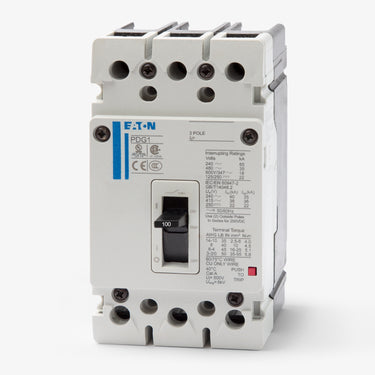

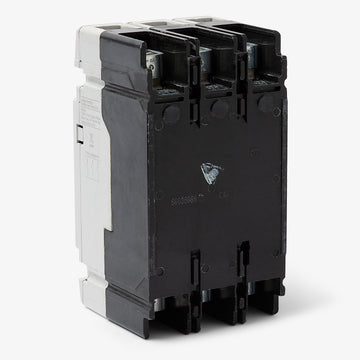

Eaton / Cutler-Hammer PDG13G0100TFFJ Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13G0100TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13G0100TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13G0100TFFJ - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Description
Delivering robust protection for commercial facilities, this 100A MCCB from the Power Defense Frame 1 family ensures safe power distribution. The PDG13G0100TFFJ features current-limiting capabilities to minimize fault impacts. Designed to mount into Eaton Pow-R-Line panelboards, it includes standard line and load terminals. It also functions as a seamless replacement for the legacy EGS3100FFG. Operating with a 35 kAIC rating at 480VAC, it utilizes fixed thermal and magnetic (LI) functions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Rotary Handle |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Globally Rated, RoHS Compliant, HACR Rated |
Product FAQs
7 answersWhat does the "G" in the PDG13G0100TFFJ catalog number signify?
The "G" indicates the interrupting rating tier for this Power Defense breaker, which provides a maximum of 35kAIC at 480VAC and 65kAIC at 240VAC.
What type of trip unit is installed in the PDG13G0100TFFJ?
This breaker features a "TFF" designated thermal-magnetic trip unit, meaning it has fixed thermal (overload) and fixed magnetic (short-circuit) protection settings.
What wire sizes are accepted by the standard lugs on this 100A breaker?

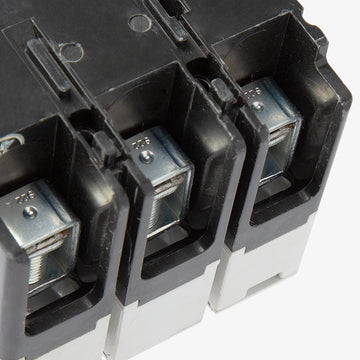

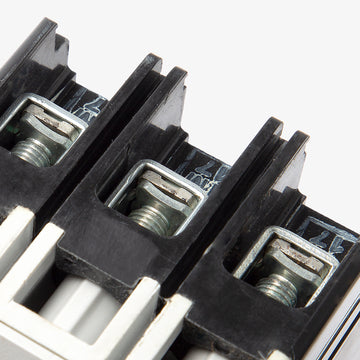

The factory-installed box lugs, indicated by the "J" suffix in the catalog number, accept copper or aluminum conductors ranging from 14 AWG to 3/0 AWG.
Which panelboards are compatible with the PDG13G0100TFFJ circuit breaker?
This Frame 1 breaker is designed for installation in Eaton Power Defense and Eaton Pow-R-Line panelboards.
What legacy Eaton breakers does the Power Defense Frame 1 series replace?
The Power Defense Frame 1 series is the modern upgrade and replacement for legacy Eaton and Cutler-Hammer Series C F-Frame circuit breakers, such as the FDB and FD models. Retrofit kits may be required for existing enclosures.
Is the PDG13G0100TFFJ suitable for direct current (DC) systems?
Yes, in addition to its AC ratings, this 3-pole breaker is rated for 250VDC systems with an interrupting capacity of 22kAIC.
Does the PDG13G0100TFFJ feature an Arcflash Reduction Maintenance System (ARMS)?
No, this breaker is equipped with a standard fixed thermal-magnetic trip unit. ARMS technology is available on Power Defense breakers that utilize advanced Power Xpert Release (PXR) electronic trip units.
