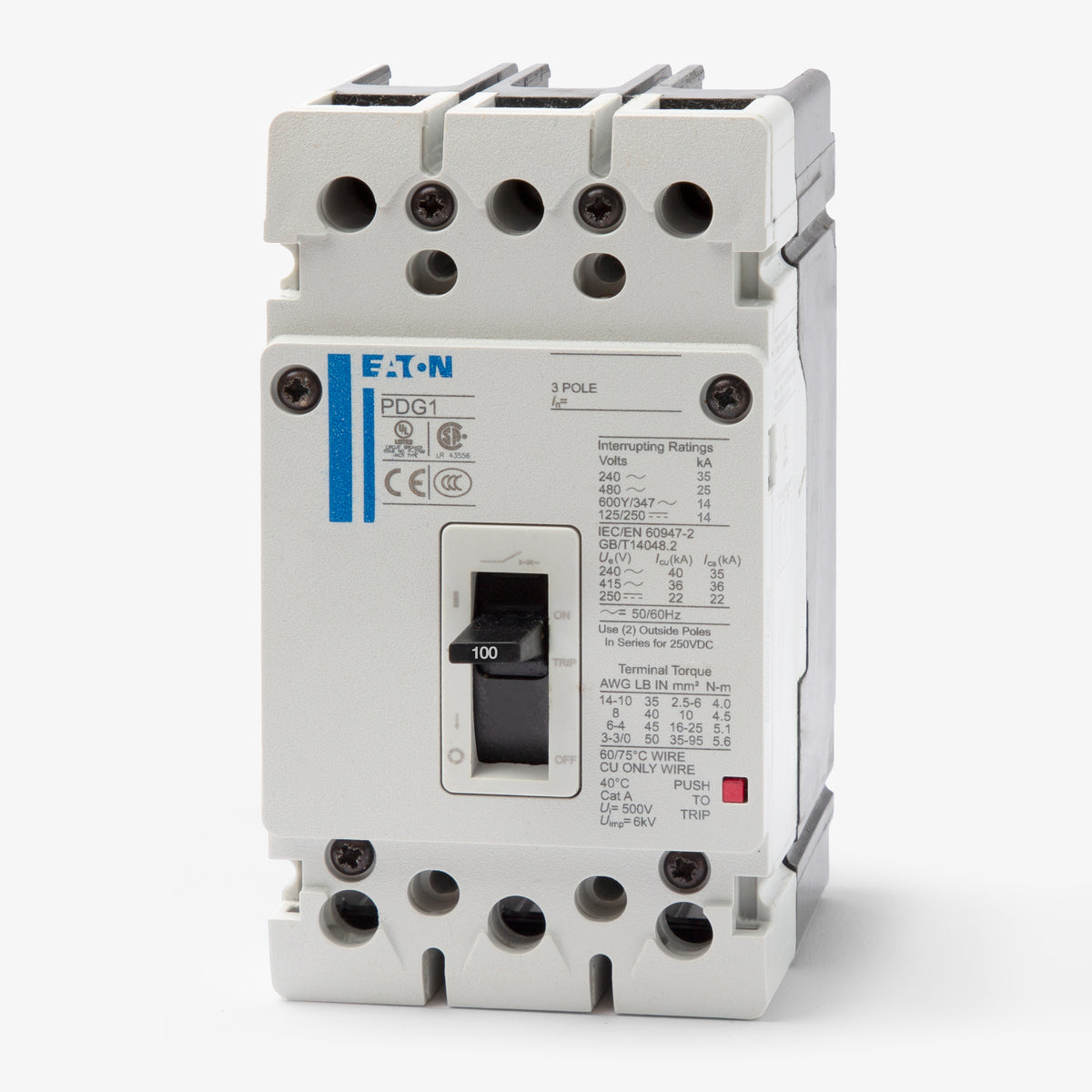

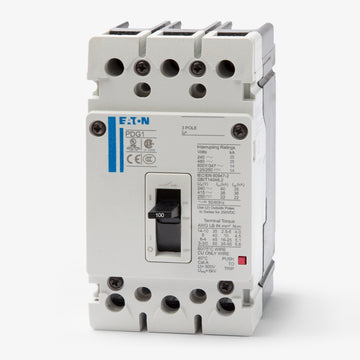

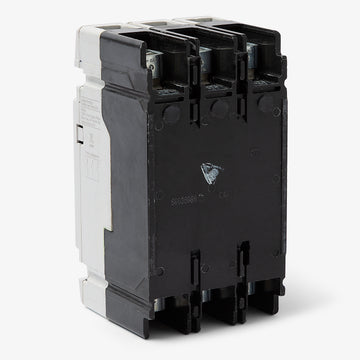

Eaton / Cutler-Hammer PDG13F0100TFFJ Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13F0100TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13F0100TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13F0100TFFJ - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0090TFFJ
90A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, this 100A Frame 1 molded case circuit breaker provides essential long-time and instantaneous (LI) trip functions. The unit mounts seamlessly into Eaton Power Defense enclosures and commercial switchboards, serving as an exact substitute for the older EGE3100FFG model. Featuring a compact 3-inch width and standard box lugs, it offers a 25kAIC interrupt capacity at 480VAC to handle substantial fault currents in modern electrical facilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

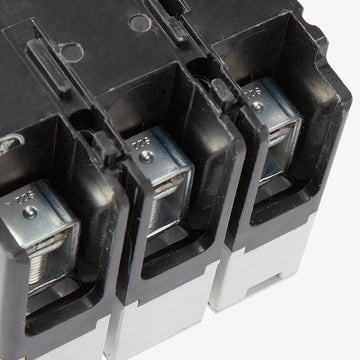

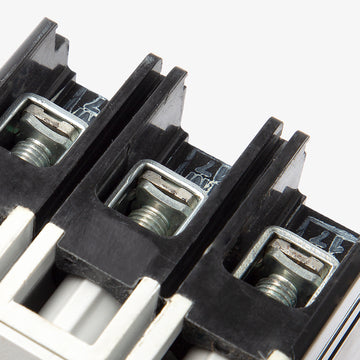

| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Handle Lock, Multi-Wire Lugs |
|---|---|
| Accessories | Line and Load Lugs (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant, HACR Rated |
Product FAQs
6 answersWhat does the "F" in the PDG13F0100TFFJ catalog number signify?
The "F" designates the interrupting rating class for this Power Defense Frame 1 breaker, indicating a maximum capacity of 25kAIC at 480VAC.
What does the "TFF" designation mean for this breaker's trip unit?
The "TFF" indicates a thermal-magnetic trip unit where both the thermal (long-time overload) and magnetic (instantaneous short-circuit) protection settings are fixed and non-adjustable.
Are the line and load terminals included with the PDG13F0100TFFJ?
Yes, this breaker comes standard with factory-installed box lugs on both the line and load sides, which accommodate wire sizes from 14 AWG to 3/0 AWG.
What panelboards are compatible with the PDG13F0100TFFJ?
This breaker is specifically designed for integration into Eaton Power Defense panelboards, switchboards, and enclosures.
Is the PDG13F0100TFFJ suitable for international applications?
Yes, as part of the Power Defense global platform, this breaker meets multiple industry standards including UL 489, CSA, IEC 60947-2, and CCC.
Can the PDG13F0100TFFJ be used in DC applications?
Yes, this thermal-magnetic breaker is rated for up to 250VDC with an interrupting capacity of 22kAIC, making it suitable for select renewable energy, marine, and industrial DC systems.
