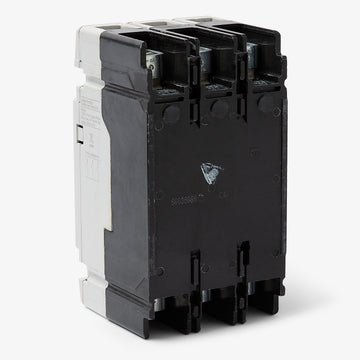

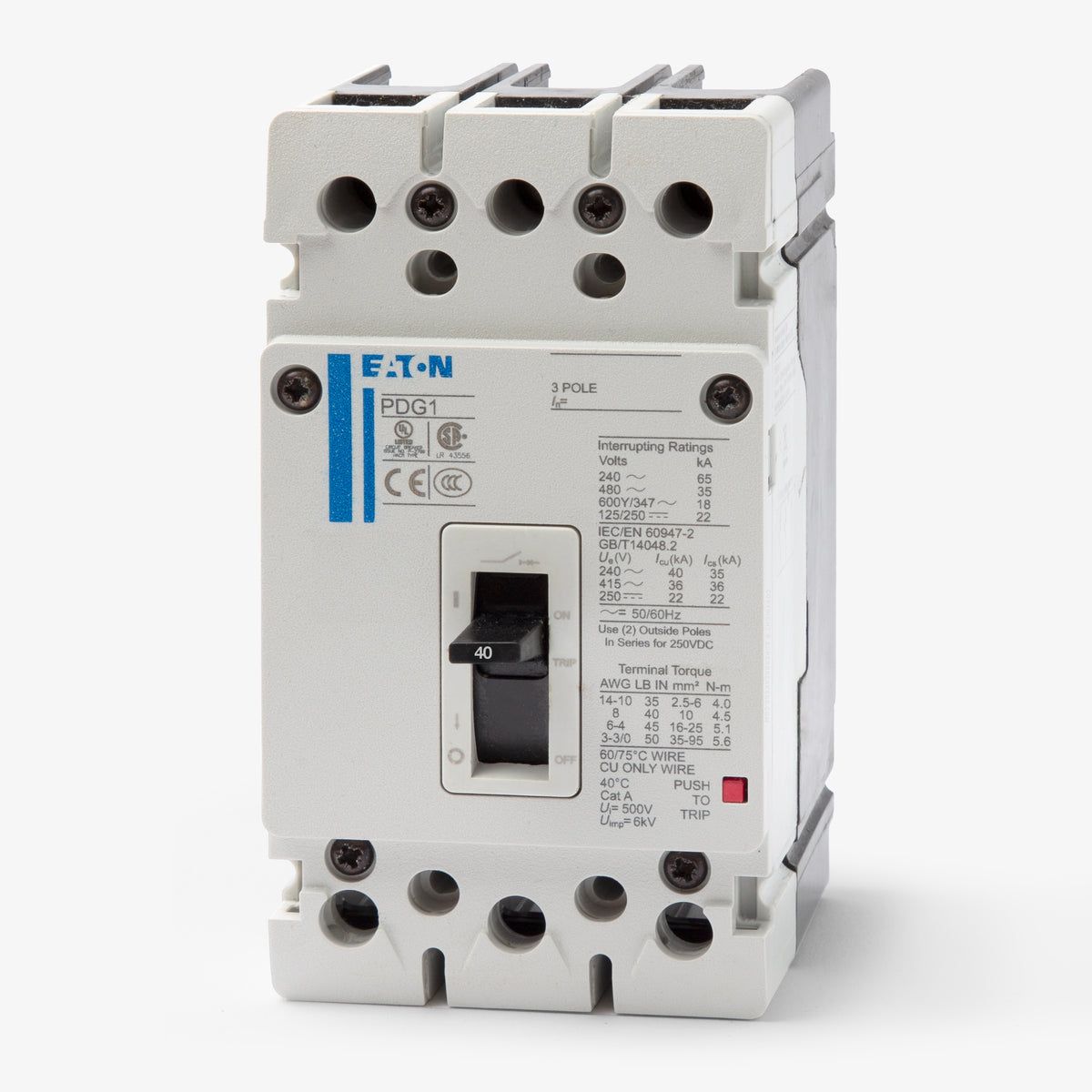

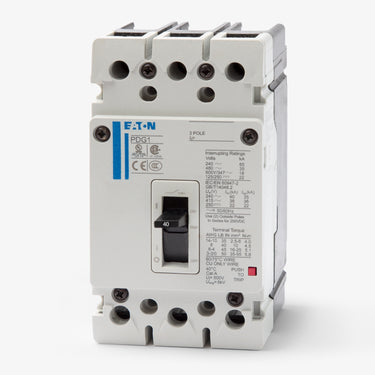

Eaton / Cutler-Hammer PDG13G0040TFFJ Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13G0040TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13G0040TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13G0040TFFJ - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0045TFFJ
45A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Description
Built for robust power distribution, the Eaton PDG13G0040TFFJ is a 3-pole, 40A molded case circuit breaker within the Power Defense Frame 1 family. It mounts into Eaton Pow-R-Line panelboards and enclosures, and serves as an exact substitute for the discontinued EGS3040FFG. Featuring a fixed thermal and fixed magnetic (LI) trip unit, this globally rated MCCB delivers 35 kAIC interrupting capacity at 480VAC to safely clear faults in commercial and industrial electrical environments.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13G0040TFFJ |
| Series | PDG1 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 22kA @ 250VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Power Defense Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Multi-Wire Lug Kit, Rotary Handle |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, RoHS Compliant, Globally Rated |
Product FAQs
7 answersCan the PDG13G0040TFFJ be mounted on a DIN rail?
Yes. While it comes standard for panel mounting, this Power Defense Frame 1 breaker can be installed on a DIN rail using the Eaton PDG1XDIN34P three-pole adapter.

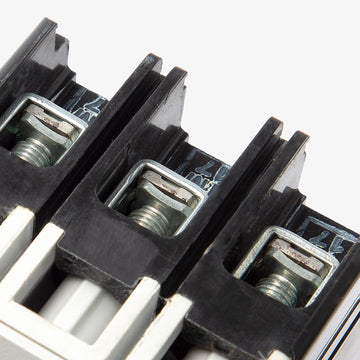

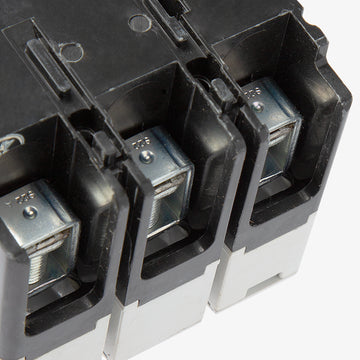

What wire sizes are accepted by the standard lugs on this 40A breaker?
The factory-installed standard line and load box lugs accept copper or aluminum wire ranging from 14 AWG to 3/0 AWG.
Is the Eaton PDG13G0040TFFJ suitable for international applications?
Yes, the Power Defense series is globally rated. This breaker carries UL 489, CSA, IEC 60947-2, and CCC certifications, making it suitable for both North American and international electrical systems.
Can I lock the handle of the PDG13G0040TFFJ in the OFF position for maintenance?
Yes, you can secure the breaker for lockout/tagout (LOTO) procedures by adding an Eaton padlockable handle hasp, such as catalog number PDG1XPLKT.
Does this breaker offer adjustable trip settings?
No, the PDG13G0040TFFJ features a fixed thermal and fixed magnetic (LI) trip unit. It does not have adjustable dials for long-time or instantaneous trip thresholds.
Can the PDG13G0040TFFJ replace older Eaton Series G breakers?
Yes, this Power Defense Frame 1 breaker serves as a direct substitute for the discontinued Eaton Series G EGS3040FFG 40A, 3-pole circuit breaker.
What panelboards are compatible with the PDG13G0040TFFJ?
This Frame 1 molded case circuit breaker is designed for use with Eaton Pow-R-Line panelboards and Power Defense enclosures.
