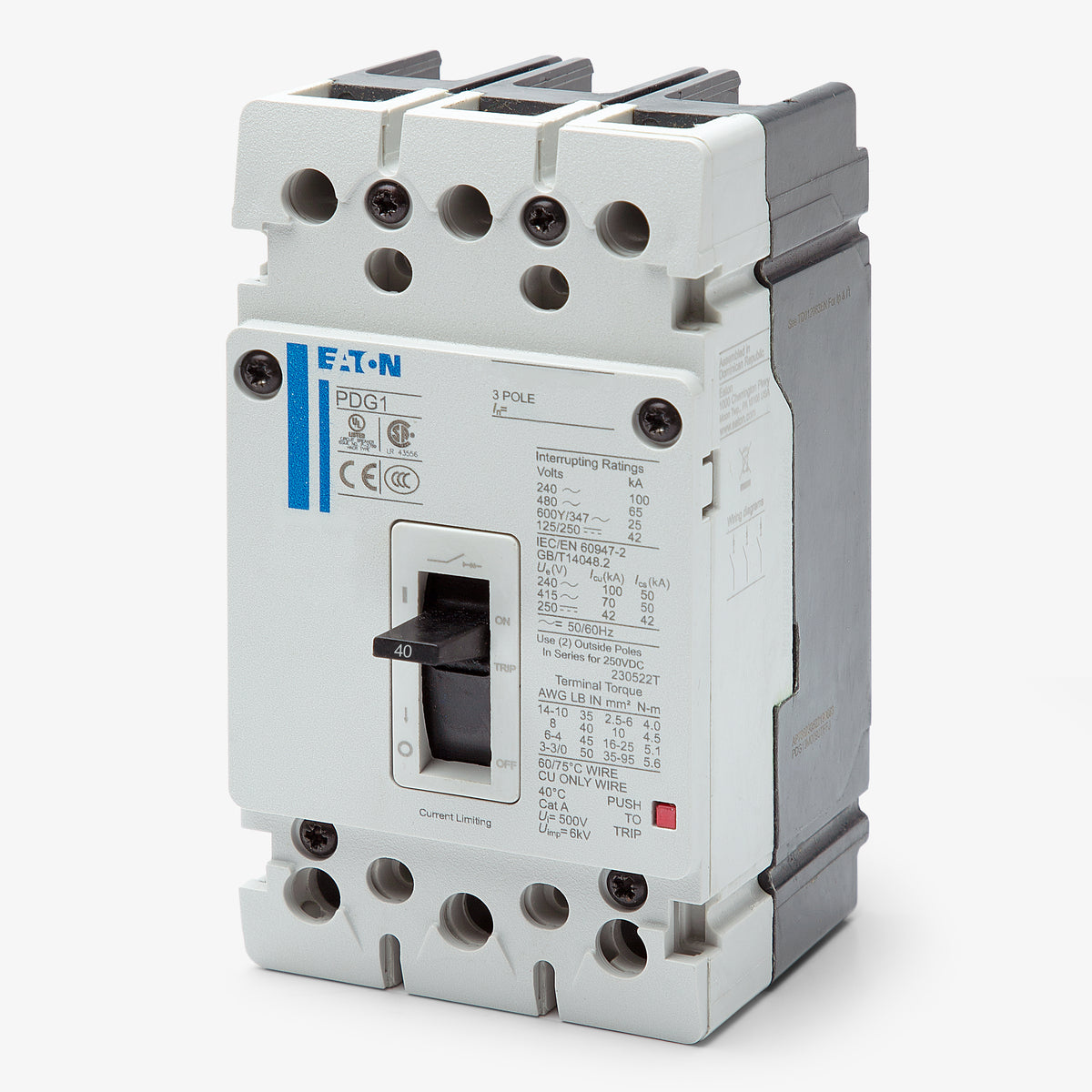

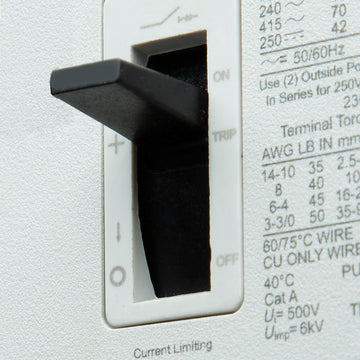

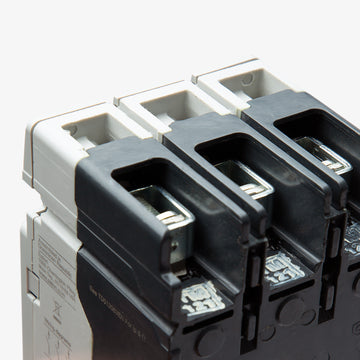

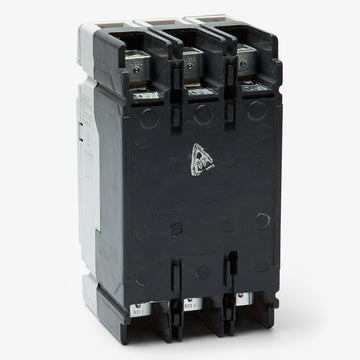

Eaton / Cutler-Hammer PDG13M0040TFFJ Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0040TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0040TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13M0040TFFJ - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial and marine environments, the Eaton PDG13M0040TFFJ is a 3-pole, 40A molded case circuit breaker. It utilizes a fixed thermal-magnetic trip unit to deliver dependable long-time and instantaneous (LI) protection. This globally rated Frame 1 breaker is designed to integrate seamlessly into Eaton Power Defense panelboards and enclosures. It comes equipped with standard box lugs for immediate wiring. The current-limiting design provides a 65kAIC rating at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Globally Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersWhat types of enclosures or panels is the PDG13M0040TFFJ designed for?
It is designed for use in Eaton Power Defense panelboards, switchboards, and motor control centers.
Can the trip unit on the PDG13M0040TFFJ be replaced or upgraded?
No, the Power Defense Frame 1 (PDG1) trip units are factory sealed and not replaceable. This specific model features a fixed thermal and fixed magnetic trip unit.
What does the "M" in the PDG13M0040TFFJ catalog number indicate?
In the Eaton Power Defense nomenclature, the "M" designates the interrupting rating level, which for this Frame 1 breaker corresponds to 65 kAIC at 480 VAC.
What type of terminals are included with the PDG13M0040TFFJ?
This breaker comes with standard factory-installed box lugs, designated by the "J" in the catalog number, that accept 14 AWG to 3/0 AWG aluminum or copper wire.
Is the PDG13M0040TFFJ compatible with external handle mechanisms?
Yes, this Power Defense Frame 1 breaker is compatible with Eaton PD1 flex shaft assemblies. These are available with high-performance or metal handles for NEMA 1, 3R, 12, 4, and 4X enclosure ratings.
Does the Power Defense series replace older Eaton Cutler-Hammer breakers?
Yes, the Power Defense series is Eaton's globally rated successor to legacy Series C breakers. However, mounting dimensions and accessory compatibility may differ, so verify panel fitment before retrofitting.
