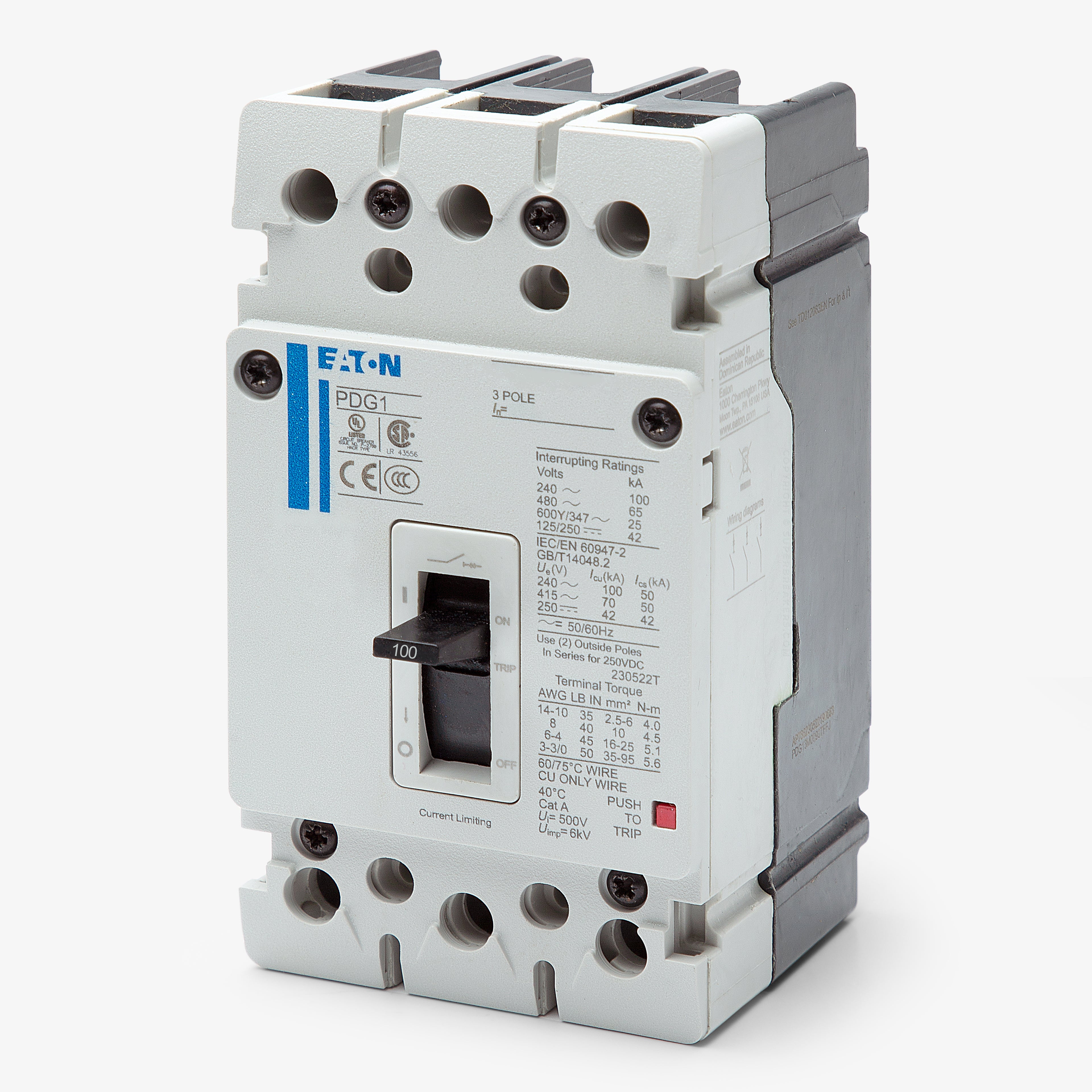

Eaton / Cutler-Hammer PDG13M0100TFFJ - 100A 3 Pole Molded Case Circuit Breaker

New

$1157.10 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

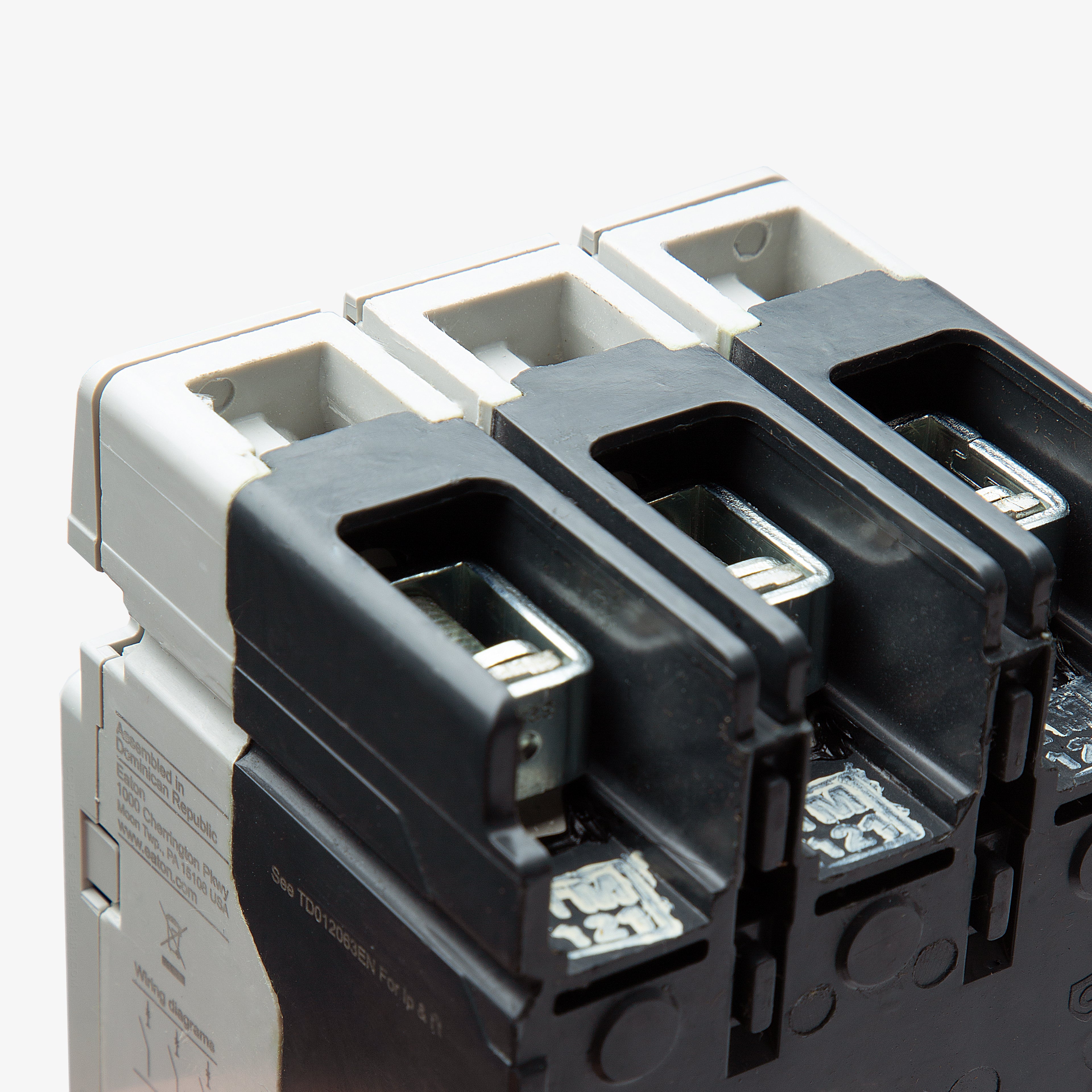

Delivering reliable power distribution, the Eaton PDG13M0100TFFJ is a 3-pole, 100A molded case circuit breaker from the globally rated Power Defense Frame 1 series. This panel-mount unit integrates into Eaton Pow-R-Line panelboards and Power Defense enclosures. It serves as a substitute for the legacy Series G EGH3100FFG, utilizing standard box lugs for 14-3/0 AWG wire. Featuring a 65kAIC rating at 480VAC, the breaker utilizes fixed thermal and magnetic trip technology to defend against faults.

Specifications

Brand Eaton / Cutler-Hammer
Series PDG1
Part Number PDG13M0100TFFJ
Amperage 100A
Voltage 240VAC, 480VAC, 600Y/347VAC, 250VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 35kA @ 250VDC
Mounting Style Panel Mount
Terminal Type Box Lugs
For Use With Eaton Pow-R-Line Panelboards, Power Defense Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14 AWG - 3/0 AWG
Max Wire 3/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Multi-Wire Lug Kit, Rotary Handle
Accessories Standard Line and Load Terminals
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS
Approval CCC, CE, CSA, IEC, RoHS, UL
Temp Rating -20C to 70C
Construction Features HACR Rated, Current Limiting, Reverse Feed, RoHS Compliant, Globally Rated
