Eaton / Cutler-Hammer PDG13M0100TFFJ Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0100TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0100TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

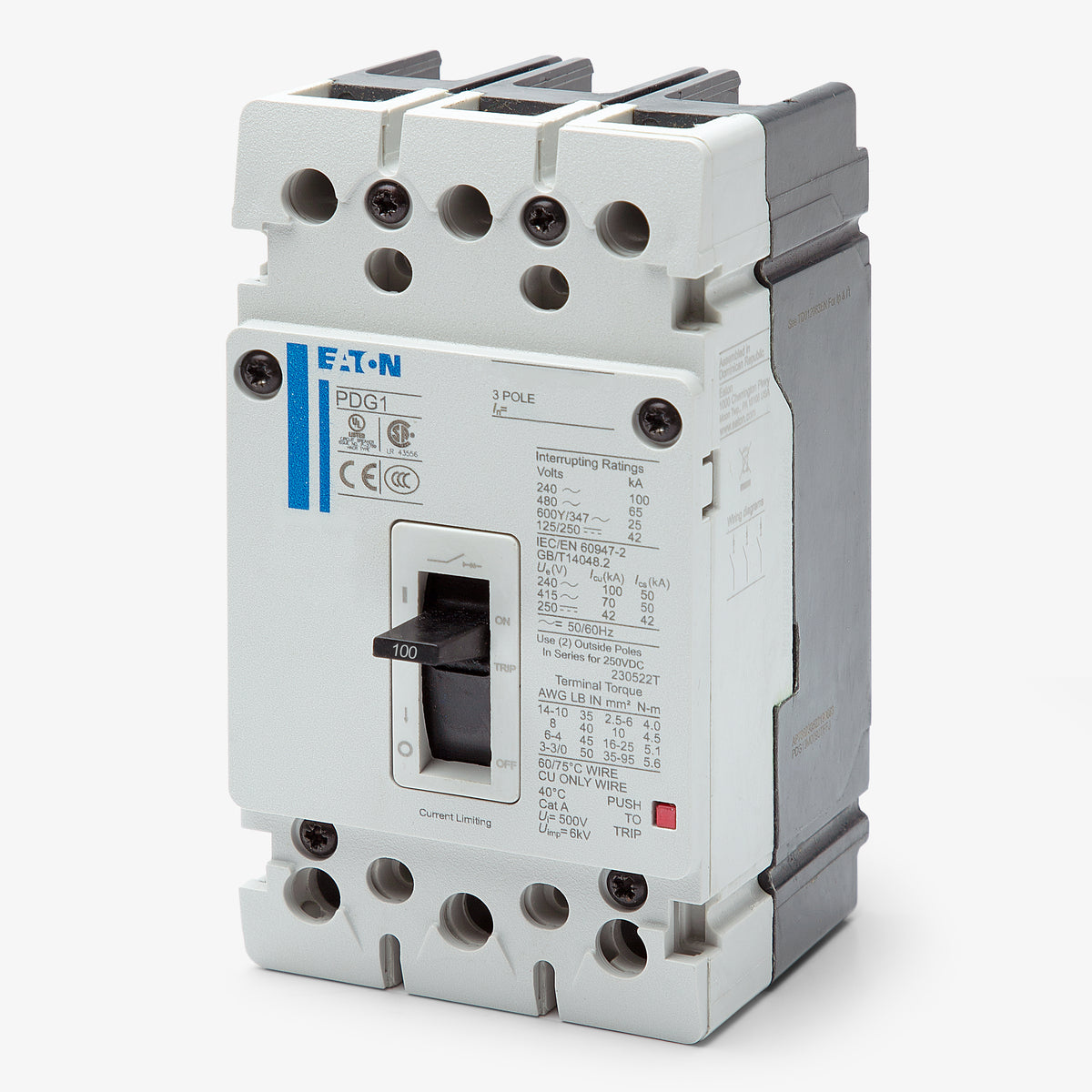

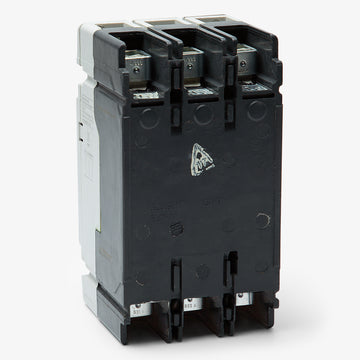

Eaton / Cutler-Hammer PDG13M0100TFFJ - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0080TFFJ
80A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0125TFFJ
125A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0070TFFJ
70A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable power distribution, the Eaton PDG13M0100TFFJ is a 3-pole, 100A molded case circuit breaker from the globally rated Power Defense Frame 1 series. This panel-mount unit integrates into Eaton Pow-R-Line panelboards and Power Defense enclosures. It serves as a substitute for the legacy Series G EGH3100FFG, utilizing standard box lugs for 14-3/0 AWG wire. Featuring a 65kAIC rating at 480VAC, the breaker utilizes fixed thermal and magnetic trip technology to defend against faults.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13M0100TFFJ |
| Series | PDG1 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 35kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Power Defense Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Multi-Wire Lug Kit, Rotary Handle |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, RoHS Compliant, Globally Rated |
Product FAQs
7 answersCan the PDG13M0100TFFJ be used in DC applications?
Yes, this breaker is rated for up to 35kA at 250VDC. When used in 250VDC applications, two poles must be wired in series.

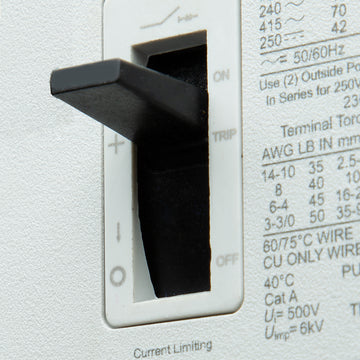

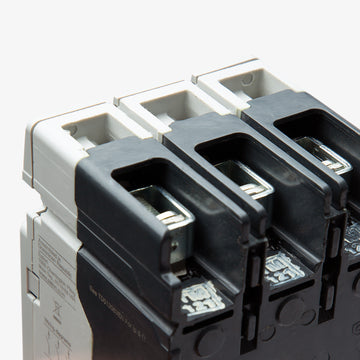

What are the torque specifications for the box lugs on this breaker?
The required torque depends on the wire size used. Torque the terminals to 35 lb-in for 14-10 AWG, 40 lb-in for 8 AWG, 45 lb-in for 6-4 AWG, and 50 lb-in for 3-3/0 AWG wire.
Does the PDG13M0100TFFJ replace any legacy Eaton breakers?
Yes, this Power Defense Frame 1 breaker serves as a direct substitute for the legacy Series G EGH3100FFG circuit breaker.
What does the M in the PDG13M0100TFFJ catalog number indicate?
The M designates the interrupting rating of the breaker, which in this case is 65kAIC at 480VAC.
Which panelboards and enclosures are compatible with this breaker?
The PDG13M0100TFFJ is designed for use with Eaton Pow-R-Line panelboards and Power Defense enclosures.
Can the trip settings on the PDG13M0100TFFJ be adjusted in the field?
No, this breaker features a thermal magnetic trip unit with fixed thermal and fixed magnetic settings, meaning the trip curve cannot be adjusted.
Does this breaker mount to a DIN rail?
Out of the box, the PDG13M0100TFFJ is configured for standard panel mounting. A separate DIN rail adapter, catalog number PDG1XDIN34P, is required for DIN rail installations.
