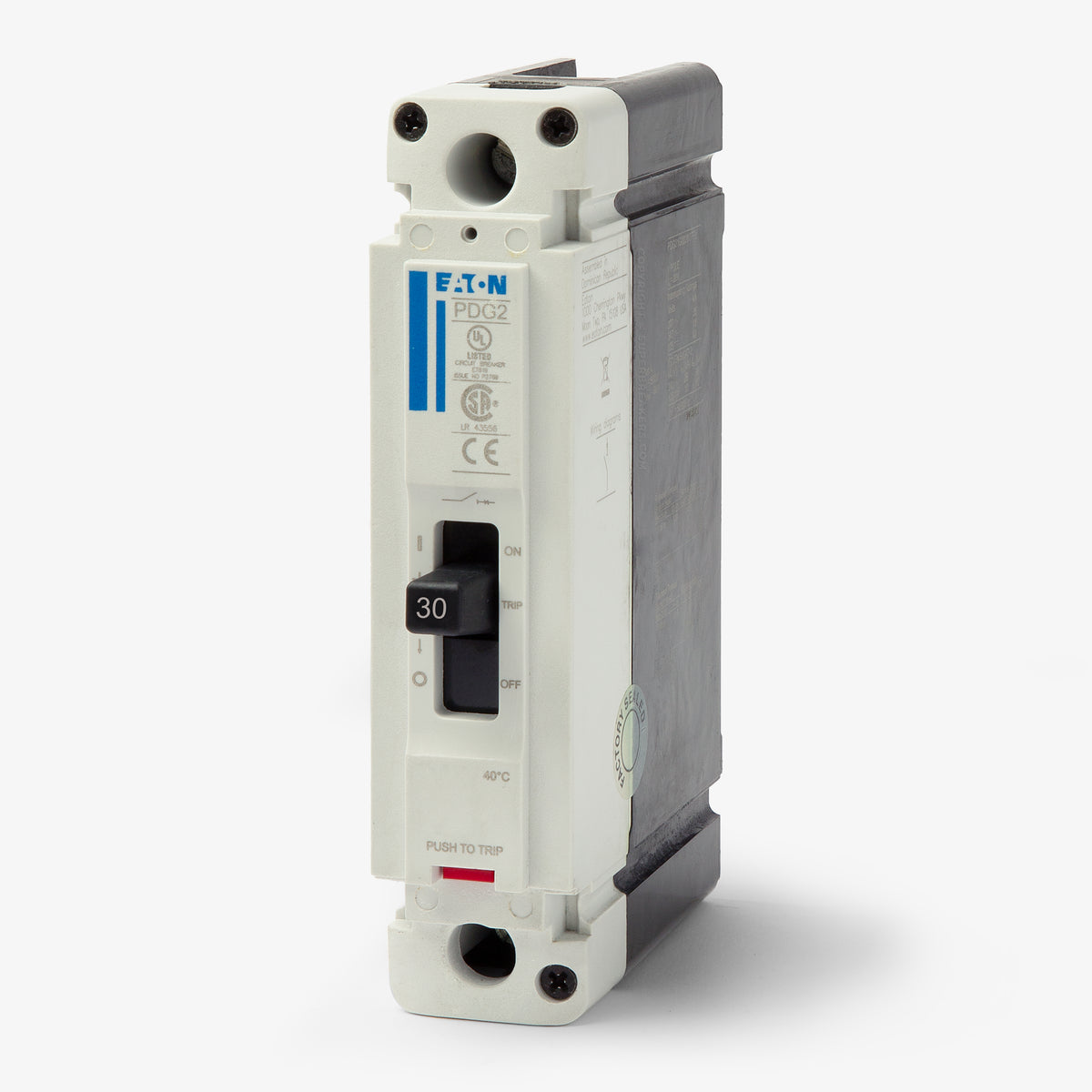

Eaton / Cutler-Hammer PDG21G0030TFFJ Molded Case Circuit Breaker
- 30A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21G0030TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21G0030TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21G0030TFFJ - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG21M0030TFFL
30A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0025TFFL
25A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0040TFFJ
40A 1 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical environments, the Eaton PDG21G0030TFFJ is a 1-pole, 30A breaker belonging to the advanced Power Defense series. This unit installs into compatible Frame 2 enclosures and panelboards, acting as an exact replacement for the older FD1030 model. Equipped with a fixed thermal-magnetic trip unit, it provides a robust 65kAIC interrupt rating at 240V (35kAIC at 480V). The breaker includes standard line and load terminals for efficient, secure wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG21G0030TFFJ |
| Series | PDG2 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Frame 2 Enclosures and Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersWhich older Eaton circuit breaker does the PDG21G0030TFFJ replace?
This Power Defense Frame 2 breaker serves as an exact replacement for the legacy Series C FD1030 molded case circuit breaker.
What does the "PDG2" prefix indicate about this breaker's compatibility?
"PDG2" stands for Power Defense Global Frame 2. This indicates the breaker is designed to fit into Eaton enclosures and panelboards specifically configured for Frame 2 dimensions and mounting hardware.
What does the "G" in the PDG21G0030TFFJ catalog number represent?
The "G" designates the breaker's specific interrupting rating tier within the Power Defense Frame 2 series, which provides a 35kAIC rating at 480VAC and 65kAIC at 240VAC.
What does the "TFF" in the catalog number PDG21G0030TFFJ signify?
It indicates that the breaker is equipped with a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous trip settings are non-adjustable.
What does the "J" suffix in the PDG21G0030TFFJ part number mean?

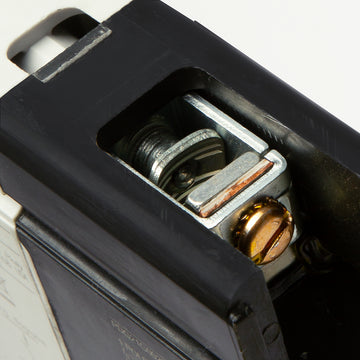

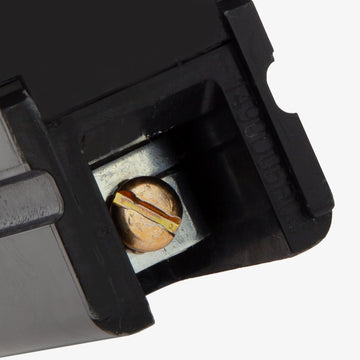

The "J" suffix indicates the breaker is supplied with standard line and load lugs, which accommodate 14 AWG to 1/0 AWG aluminum or copper wire.
Is the PDG21G0030TFFJ suitable for reverse feed applications?
Yes, thermal-magnetic molded case circuit breakers in the Eaton Power Defense Frame 2 series are generally suitable for reverse feeding. Always verify specific application requirements and local electrical codes before installation.
