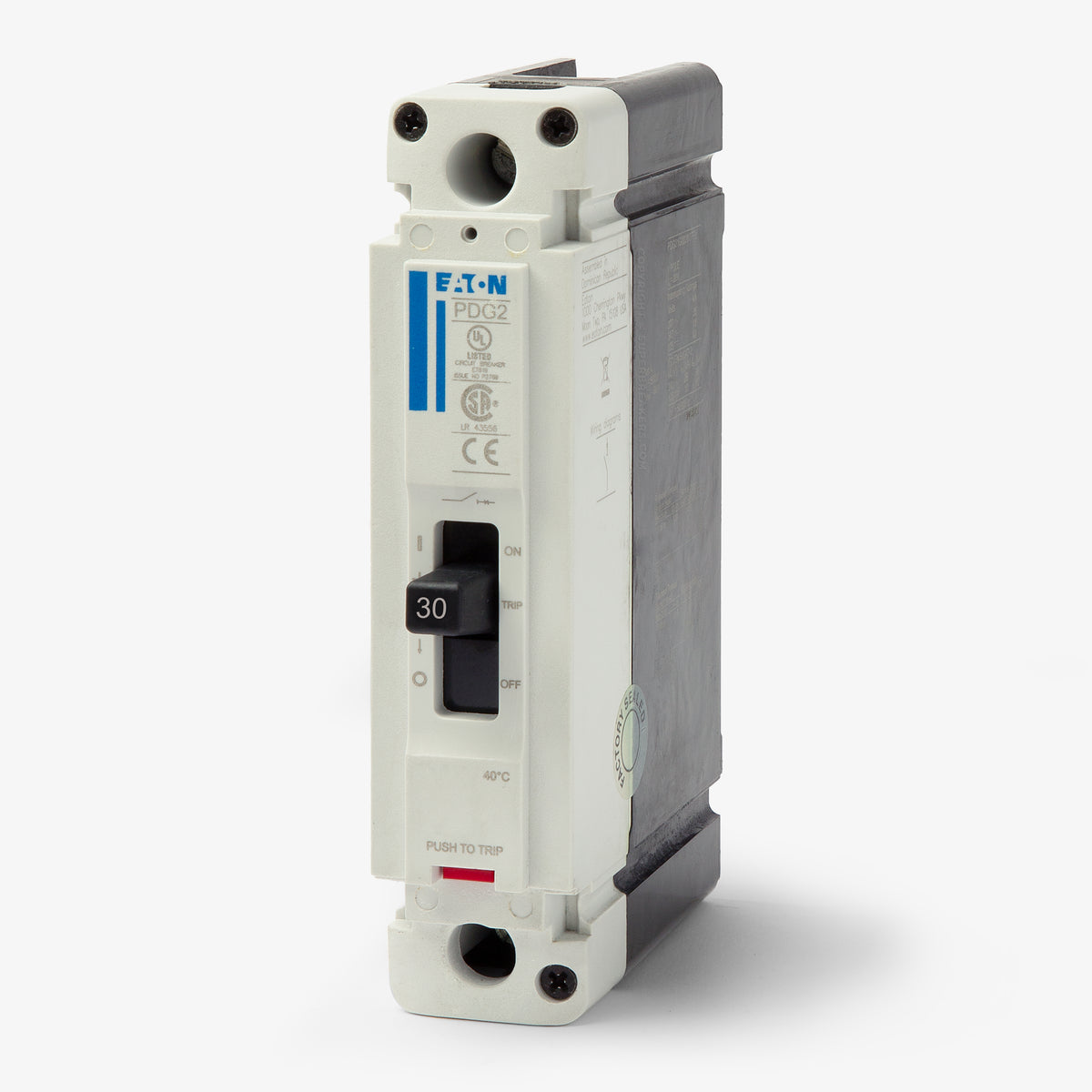

Eaton / Cutler-Hammer PDG21G0030TFFL Molded Case Circuit Breaker
- 30A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21G0030TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21G0030TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21G0030TFFL - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG21M0030TFFL
30A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0025TFFL
25A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21G0040TFFJ
40A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Eaton PDG21G0030TFFL is a 1-pole, 30A molded case circuit breaker from the Power Defense Frame 2 series. It installs into compatible Eaton enclosures, switchboards, and panelboards, serving as a direct upgrade for legacy EGS1030FFG and FD1030 breakers. Rated at 65 kAIC at 240VAC, this unit features fixed thermal-magnetic trip functions (LI) and comes equipped with standard load-side lugs for streamlined wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Mechanism |
|---|---|
| Accessories | Standard Terminals (Load Side Only) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | RoHS Compliant |
Product FAQs
6 answersWhich legacy Eaton circuit breakers can the PDG21G0030TFFL replace?
The PDG21G0030TFFL serves as a direct upgrade for legacy Cutler-Hammer and Eaton EGS1030FFG and FD1030 1-pole, 30A breakers.
Do I need to purchase separate lugs for the PDG21G0030TFFL?

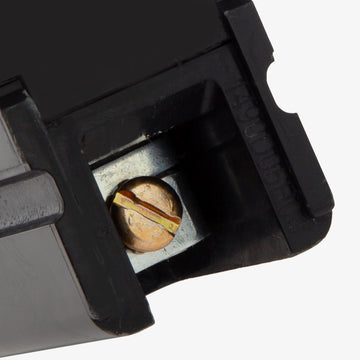

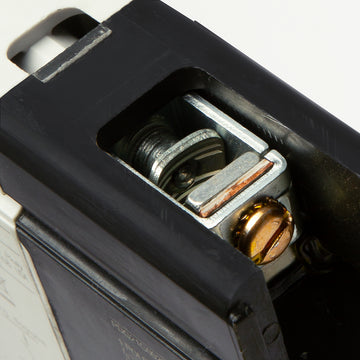

No, this breaker comes with standard factory-installed load-side lugs that accept 14 AWG to 1/0 AWG aluminum or copper conductors.
Can the thermal or magnetic trip points be adjusted on the PDG21G0030TFFL?
No. This Power Defense breaker uses a fixed thermal and fixed magnetic trip unit. The long-time (L) and instantaneous (I) protection settings are factory-set for 30 amps and cannot be modified in the field.
Can the PDG21G0030TFFL be mounted on a DIN rail?
Yes, in addition to standard bolt-on panel mounting in Eaton switchboards and panelboards, this Frame 2 breaker supports DIN rail mounting configurations.
What is the maximum DC voltage rating for this 1-pole breaker?
While the Power Defense series can support up to 250VDC in multi-pole configurations, this specific 1-pole PDG21G0030TFFL breaker is rated for a maximum of 125VDC with a 10kAIC interrupting capacity.
Is the PDG21G0030TFFL compatible with older Cutler-Hammer panels?
The PDG21G0030TFFL is part of the modern Power Defense series. While it serves as a direct replacement for legacy Series C (FD) and Series G (EG) breakers, you must verify compatibility with your specific legacy Cutler-Hammer panelboard or switchboard before installation.
