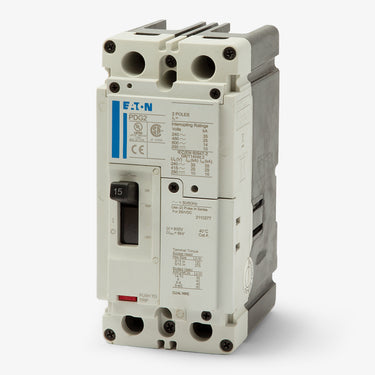

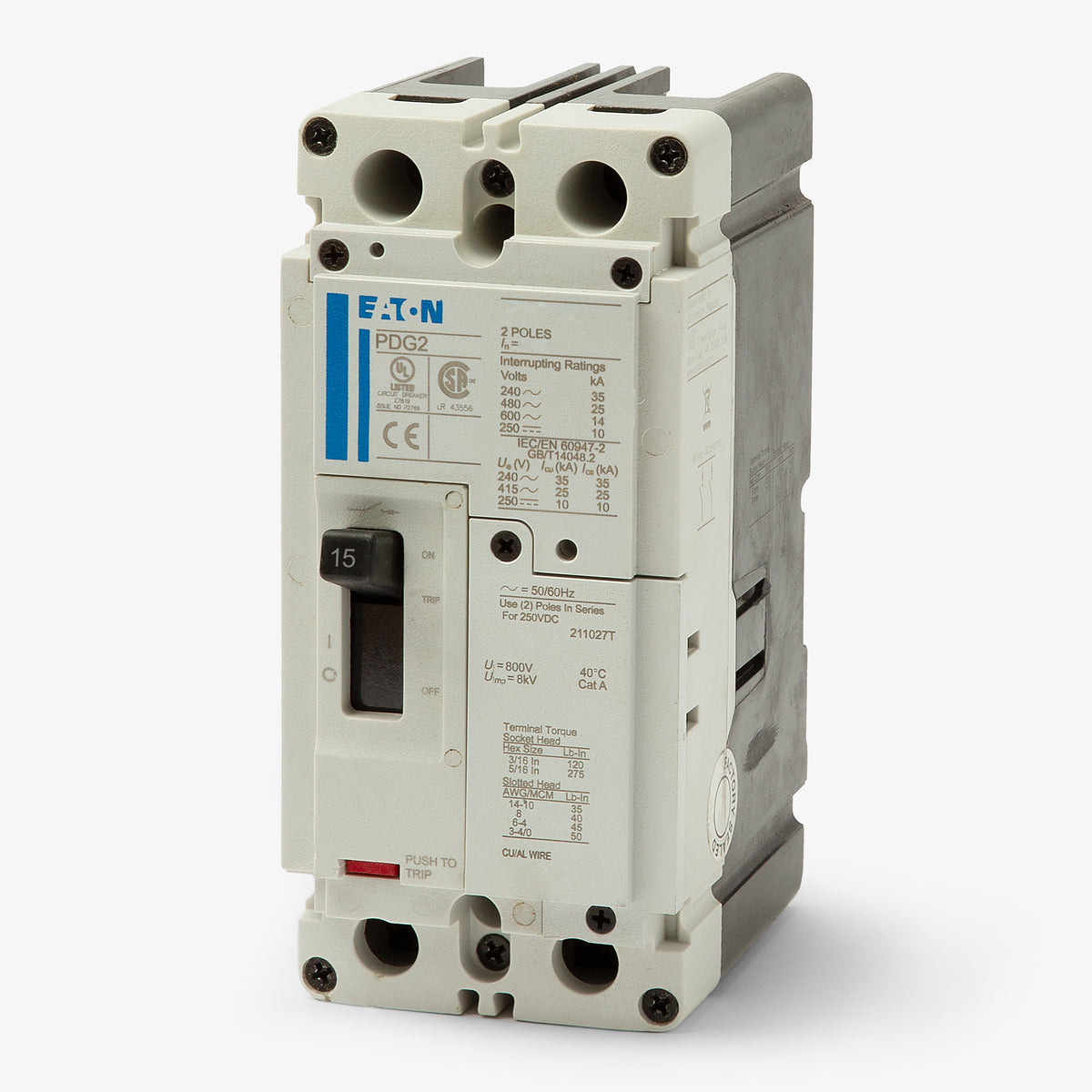

Eaton / Cutler-Hammer PDG22F0015TFFJ Molded Case Circuit Breaker
- 15A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0015TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0015TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0015TFFJ - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0015TFFJ
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0015TFFL
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0015TFFJ
15A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, this 15-amp two-pole breaker features a globally rated design with current-limiting capabilities. It integrates perfectly into modern Eaton Power Defense switchboards while maintaining backward compatibility with older systems. Facility managers can utilize this component to replace aging EGE2015FFG and FDB2015 breakers. Standard line and load lugs are included to facilitate straightforward wiring connections during panel maintenance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22F0015TFFJ |
| Series | PDG2 |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Global Ratings |
Product FAQs
7 answersWhat does the "F" stand for in the PDG22F0015TFFJ catalog number?
The "F" designates the specific interrupting capacity for this Frame 2 breaker, which is rated at 25 kAIC at 480 VAC.
What does the "TFF" signify in this Eaton part number?
It indicates the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic settings for long-time and instantaneous protection.
What does the "J" suffix mean on this Power Defense breaker?
The "J" suffix specifies that the breaker comes with standard line and load lug terminals installed.
Is this Eaton 15A breaker suitable for international applications?
Yes, the "PDG" prefix stands for Power Defense Globally Rated, meaning it is designed to meet both North American UL and international IEC standards.
Can I use aluminum wire with the standard lugs on this breaker?
Yes, the standard line and load terminals are dual-rated for both aluminum and copper conductors ranging from 14 AWG to 1/0 AWG.
What equipment is the PDG22F0015TFFJ designed to be installed in?
This Frame 2 molded case circuit breaker is engineered for installation in Eaton Power Defense panelboards, switchboards, and approved enclosures.
What frame size does the PDG22F0015TFFJ belong to?
This breaker is part of the Eaton Power Defense Frame 2 family, as indicated by the "2" following the PDG prefix in the catalog number.
