Eaton / Cutler-Hammer PDG23F0040TFFL Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0040TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0040TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

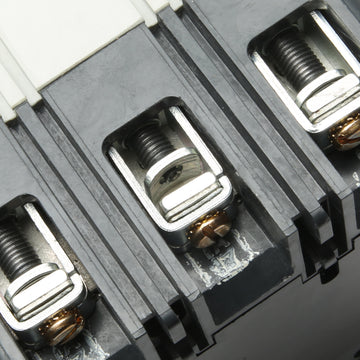

Eaton / Cutler-Hammer PDG23F0040TFFL - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton/Cutler-HammerPDG23G0040TFFL
3 Pole Circuit Breaker
Eaton / Cutler-HammerPDG23M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Description
A robust solution for power distribution, the Eaton PDG23F0040TFFL is a 3-pole, 40A molded case circuit breaker from the Power Defense Frame 2 series. It utilizes a fixed thermal and fixed magnetic trip unit to ensure precise long-time and instantaneous (LI) protection. This MCCB integrates seamlessly into Eaton Power Defense and Series C F-Frame panelboards. It replaces legacy FD3040 and EGE3040FFG breakers. It features standard load-side lugs and delivers a 25kAIC rating at 480V.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures, Series C F-Frame Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting |
Product FAQs
5 answersWhat panelboards are compatible with the PDG23F0040TFFL?
This breaker is designed for use in Eaton Power Defense panelboards, switchboards, and enclosures. It is also backwards compatible with legacy Series C F-Frame panelboards, though updated Eaton Pow-R-Line connector kits or mounting hardware are required for retrofitting.
Can the PDG23F0040TFFL replace older Series C F-Frame breakers?
Yes, the Power Defense Frame 2 series serves as a direct replacement for legacy 3-pole, 40A Series C F-Frame and Series G EG-Frame breakers, including catalog numbers like FD3040 and EGE3040FFG. Because the physical mounting arrangement differs slightly, new mounting hardware is required during installation.
How is the 250VDC rating achieved on this breaker?
While this thermal-magnetic breaker is rated for up to 250VDC at 10kAIC, Eaton specifications require wiring two of the three poles in series to safely achieve the full 250VDC rating.
Are the trip settings adjustable on the PDG23F0040TFFL?
No, this specific model features a fixed thermal and fixed magnetic (TFF) trip unit. Both the long-time (overload) and instantaneous (short-circuit) protection thresholds are factory-set at 40 amps and cannot be field-adjusted.
What does the letter L signify in the PDG23F0040TFFL catalog number?
The letter L indicates that the breaker comes factory-equipped with standard line and load-side lugs, which accept 14-4 AWG aluminum or copper conductors.
