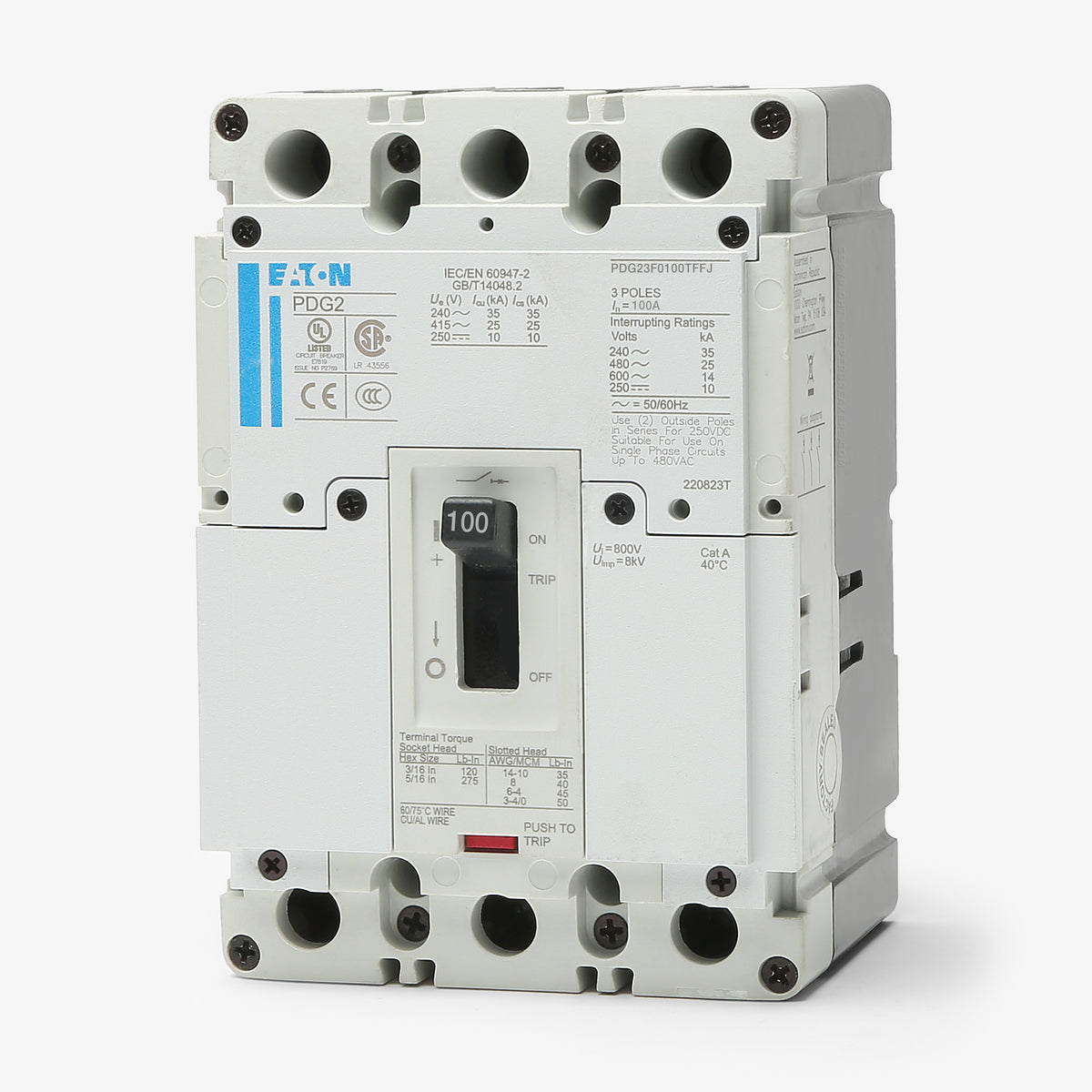

Eaton / Cutler-Hammer PDG23F0100TFFJ Molded Case Circuit Breaker
- 100A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0100TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0100TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23F0100TFFJ - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0100TFFL
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0100TFFJ
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust power distribution, this 100A MCCB provides essential protection for industrial environments. The PDG2 series offers advanced current-limiting capabilities. Mounting into standard Eaton panelboards, this version includes both line and load terminals. It provides a modern replacement for older EGE3100FFG and FD3100 breakers, upgrading systems to 25kA fault tolerance. Delivering 25kAIC at 480VAC, the device relies on a fixed thermal-magnetic trip mechanism.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0100TFFJ |
| Series | PDG2 |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |

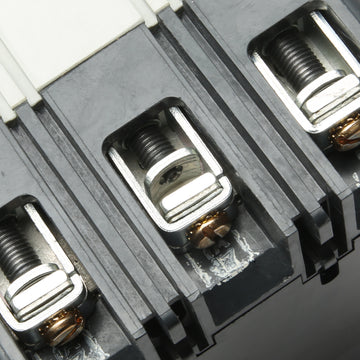

| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Enclosures, Switchboards, Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator, DIN Rail Adapter |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting |
Product FAQs
6 answersWhat is the difference between the Power Defense PDG2 series and legacy Series C F-Frame breakers?
While the Eaton Power Defense Frame 2 shares a similar physical footprint with legacy Series C F-Frame breakers (like the FD or FDB), they use entirely different internal accessories and panelboard connector kits. They are not direct plug-and-play replacements for older switchboards without upgrading the mounting hardware.
Can the trip settings on the PDG23F0100TFFJ be adjusted after installation?
No. This breaker is equipped with a TFF designation in the catalog number, which indicates a thermal-magnetic trip unit with fixed thermal and fixed magnetic elements. It does not have field-adjustable trip dials.
Can I add internal electrical accessories to this breaker in the field?
Yes. The Power Defense Frame 2 platform features accessory pockets located under the front cover. This allows panel builders and licensed electricians to easily field-install internal accessories like shunt trips, undervoltage releases, and auxiliary contacts.
Does this breaker support advanced electronic metering or communication capabilities?
No. The PDG23F0100TFFJ features a standard thermal-magnetic trip unit. If your application requires advanced diagnostics, power metering, or network communications, you must select a Power Defense breaker equipped with an electronic trip unit, such as the PXR 20 or PXR 25.
What does the "PDG" stand for in the Eaton catalog number?
The letters "PDG" stand for Power Defense Global. This signifies that the breaker platform is globally rated and tested to meet major international standards including UL, CSA, and IEC, allowing it to be integrated into standardized equipment designs worldwide.
How is this breaker applied to achieve its 250 VDC rating?
Because this model utilizes a thermal-magnetic trip unit, it is safely rated for direct current applications up to 250 VDC. Achieving this full DC voltage rating typically requires wiring two of the breaker poles in series, per Eaton engineering and installation guidelines.
